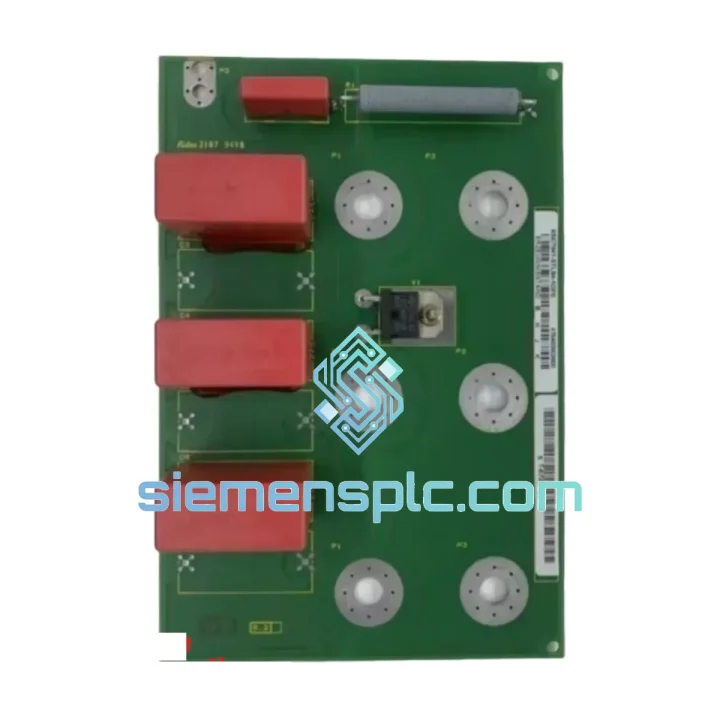

Siemens 6SE7041-3TL84-1GF0 AC Drive Module – SIMOVERT MASTERDRIVES

Siemens 6SE7041-3TL84-1GF0 — 710 kW SIMOVERT MASTERDRIVES Vector Control Inverter Module for High-Power Industrial Drive Systems

The Siemens 6SE7041-3TL84-1GF0 is a 710 kW inverter module belonging to the SIMOVERT MASTERDRIVES Vector Control (VC) platform — a modular, common DC bus drive architecture engineered for continuous-duty, high-dynamic industrial applications. Within a multi-drive system topology, this unit occupies the inverter stage: it receives conditioned DC link voltage from a dedicated rectifier or Active Front End (AFE) module and synthesizes a three-phase PWM output to drive an AC induction or synchronous motor with closed-loop torque and speed precision.

At 710 kW shaft power, this module addresses the upper tier of process-critical drive applications where torque linearity, thermal stability, and deterministic control response are non-negotiable engineering requirements. The SIMOVERT MASTERDRIVES VC platform has accumulated decades of field deployment across steel, cement, paper, marine, and power generation sectors — environments where unplanned downtime carries measurable financial consequence.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 6SE7041-3TL84-1GF0 operates as the power conversion output stage within the SIMOVERT MASTERDRIVES common DC bus architecture. Understanding its internal hardware logic is essential for correct system integration and fault diagnosis.

IGBT Power Stack & Gate Drive Architecture: At 710 kW, the inverter section employs parallel-connected IGBT modules arranged in a three-phase bridge topology. Each IGBT leg is driven by isolated gate driver boards that enforce dead-time insertion (typically 3–5 µs) to prevent shoot-through under all switching conditions. The gate drive circuits are galvanically isolated from the control logic via optocoupler barriers rated to withstand DC link transients exceeding 1,200 V peak.

DC Link Interface & Capacitor Bank: The module connects to the common DC bus via low-inductance busbars. Internal DC link capacitors provide local energy buffering, suppressing voltage ripple generated by the rectifier stage and absorbing regenerative energy spikes from the motor during deceleration. The capacitor bank is dimensioned for the full 710 kW continuous load cycle, with an ESR (Equivalent Series Resistance) profile optimized for high-frequency PWM ripple current.

EMC Design & Conducted Emission Suppression: The module’s internal layout follows a strict EMC partitioning strategy: power and signal paths are physically separated, with the control board mounted on a shielded sub-rack. Ferrite cores are applied at critical signal cable entry points. The PWM carrier frequency selection (2.5 kHz or 5 kHz) directly affects conducted emission profiles — 2.5 kHz reduces switching losses at the cost of higher audible noise, while 5 kHz shifts harmonic energy above the EN 55011 Class A measurement band for cabinet-level compliance.

Thermal Management & Derating Logic: The forced-air cooling system uses a temperature-monitored axial fan with fault detection. An NTC thermistor mounted on the IGBT heatsink feeds the CUVC control board, which implements a two-stage thermal protection algorithm: at 80% of the thermal limit, output current is automatically derated; at 100%, the drive trips with fault code F011 (overtemperature). This prevents catastrophic IGBT failure while providing the control system with advance warning via the PROFIBUS status word.

Current Measurement & Closed-Loop Feedback: Phase current measurement is performed by Hall-effect current transducers on two output phases (the third is computed). The transducers provide galvanic isolation between the power stage and the CUVC signal processing board. Measured current signals are fed to the CUVC’s DSP at a sampling rate synchronized to the PWM period, enabling the vector control algorithm to compute flux and torque components with sub-millisecond latency.

System Integration Benefits

• Common DC Bus Energy Sharing: In multi-drive installations, regenerative energy from braking drives is directly absorbed by motoring drives on the same DC bus, reducing net energy drawn from the AC supply. At 710 kW scale, this can yield measurable reductions in peak demand charges.
• Deterministic PROFIBUS-DP Cycle: With the CBP2 communication board, the drive participates in a PROFIBUS-DP cyclic exchange with the SIMATIC S7 PLC at cycle times as low as 1 ms, enabling synchronized multi-axis coordination without additional fieldbus gateways.
• Sensorless Vector Control for Encoder-Free Operation: SLVC mode maintains speed regulation accuracy of ±0.5% down to approximately 5% of rated speed, eliminating encoder hardware and cabling in applications where absolute zero-speed holding torque is not required.
• Modular Hot-Swap Serviceability: The inverter module can be replaced independently of the rectifier, control board, and communication boards. This reduces mean time to repair (MTTR) in cabinet installations, as the DC bus can remain energized on other drive modules during replacement.
• Integrated Diagnostic Transparency: The CUVC board logs fault codes, operating hours, and thermal history accessible via DriveMonitor software over RS232 or PROFIBUS. This data supports predictive maintenance scheduling without additional condition monitoring hardware.
• Flexible Motor Compatibility: Supports standard asynchronous induction motors, synchronous motors with incremental encoder feedback, and permanent magnet motors with appropriate parameterization — allowing the same drive platform to serve multiple motor technologies across a plant.
• Scalable Power Architecture: Multiple inverter modules can be paralleled on a single DC bus with a shared infeed, scaling total system power without proportionally increasing control complexity or PLC I/O count.
• Technology Board Expansion: Optional T100 or T400 technology boards plug into the CUVC sub-rack to add closed-loop winding tension control, cam profiling, or multi-axis synchronization — extending the module’s functional scope beyond basic speed/torque control without external motion controllers.

Quality Assurance & Global Logistics

Every Siemens 6SE7041-3TL84-1GF0 unit dispatched from our Xiamen, China facility undergoes a structured pre-shipment inspection protocol:

• Part number and label verification against Siemens factory markings and serial number traceability records
• Visual inspection of IGBT module surfaces, busbar connections, and PCB assemblies for physical damage, corrosion, or evidence of prior repair
• DC link capacitor ESR spot-check where test equipment permits
• Anti-static packaging with desiccant sachets and humidity indicator cards, sealed in polyethylene foam-lined cartons
• Export documentation prepared to HS Code 8504.40 with commercial invoice, packing list, and certificate of origin

Logistics from Xiamen port to major industrial hubs: Europe (7–12 days air freight), Southeast Asia (3–5 days), North America (8–14 days air). DHL, FedEx, and UPS express options available for urgent replacement scenarios. All shipments are fully insured and trackable from dispatch to delivery confirmation.
