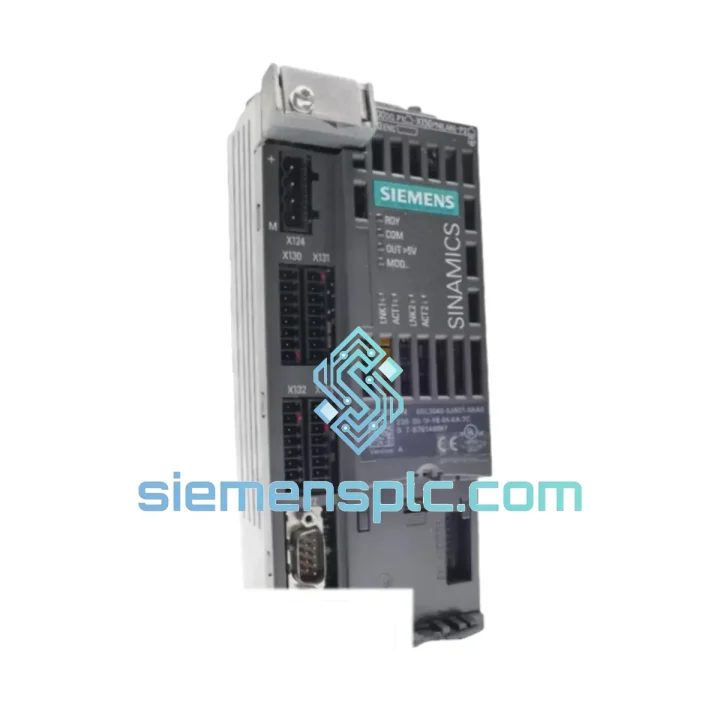

Siemens 6SL3040-0JA01-0AA0 Drive Control Unit – SINAMICS S120

Siemens 6SL3040-0JA01-0AA0 CU320-2 DP: Central Control Architecture for SINAMICS S120 Multi-Axis Drive Systems

The 6SL3040-0JA01-0AA0 is the CU320-2 DP variant of Siemens’ SINAMICS S120 Control Unit family — the computational and communication core that governs coordinated multi-axis drive operation across the entire S120 booksize and chassis power module ecosystem. Unlike peripheral I/O expanders or simple inverter modules, this unit carries the full closed-loop control stack: current regulation, speed/torque setpoint processing, safety function arbitration, and fieldbus protocol handling, all executed within a deterministic real-time kernel.

In a typical S120 drive line, the CU320-2 DP sits at the top of the control hierarchy. It receives motion setpoints from a host controller — most commonly a SIMATIC S7-300, S7-400, or S7-1500 — via PROFIBUS DP at up to 12 Mbit/s, then distributes axis-specific commands downstream to individual Motor Modules over the DRIVE-CLiQ serial backplane. This architecture decouples the fieldbus timing from the inner current control loop, allowing the current controller to run at 125 µs independently of the PLC scan cycle, which is a prerequisite for high-bandwidth servo applications.

The unit manages up to six drive objects simultaneously. Each drive object can be configured as a servo axis (DSC — Dynamic Servo Control), a vector-controlled induction motor axis, or a V/f-controlled axis, depending on the Motor Module type and encoder feedback configuration. Parameter sets are stored on a CompactFlash card inserted into the onboard slot, enabling rapid unit replacement without re-commissioning — a significant advantage in production environments where mean time to repair (MTTR) is a key KPI.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The CU320-2 DP is built around a dual-processor architecture: a real-time DSP core handles the inner current and speed control loops at fixed 125 µs / 250 µs / 500 µs cycle times (selectable per axis), while a separate application processor manages PROFIBUS DP communication, parameter handling, and diagnostic logging. This separation ensures that fieldbus jitter — inherent in any shared-medium network — does not propagate into the servo control loop, maintaining torque ripple below specification even under heavy bus load.

DRIVE-CLiQ Backplane Bus: The four onboard DRIVE-CLiQ ports implement Siemens’ proprietary serial protocol over standard RJ45 cabling. DRIVE-CLiQ carries 100 Mbit/s full-duplex Ethernet-based frames with a fixed 125 µs isochronous cycle. Each connected component — Motor Module, Line Module, encoder interface, or sensor module — is automatically enumerated during power-up. The CU320-2 DP reads the electronic nameplate (MLFB, serial number, firmware version) from each node and builds a topology map stored on the CompactFlash card. This topology verification at every boot-up is a hardware-level counterfeit detection mechanism: a non-genuine Motor Module without a valid DRIVE-CLiQ nameplate will be rejected during topology check.

EMC Design: The PCB layout employs a split ground plane strategy — analog signal ground, digital logic ground, and chassis ground are separated and joined at a single star point near the power entry connector. All I/O signal lines pass through common-mode chokes and TVS diode arrays rated for ±2 kV transient suppression per IEC 61000-4-5 Level 3. The PROFIBUS DP interface uses galvanic isolation with a 500 V DC isolation barrier, preventing ground loop currents from corrupting fieldbus data in installations where the PLC cabinet and drive cabinet share different ground potentials.

Redundancy Arbitration Logic: In applications requiring high availability, two CU320-2 DP units can be configured in a master/standby topology using the SINAMICS S120 redundancy option. The active unit continuously mirrors its parameter RAM to the standby unit via a dedicated synchronization channel. On detection of a watchdog timeout or internal fault on the active unit, the standby unit assumes control within one PROFIBUS DP cycle — typically under 10 ms — without requiring a full drive re-initialization sequence.

Functional Safety Architecture: The STO function is implemented as a two-channel hardware path. Each channel independently monitors the F-DI input and controls a separate gate driver inhibit signal to the Motor Module’s IGBT bridge. Both channels must agree on the STO command within a defined discrepancy time window (configurable, default 500 ms) before the inhibit is asserted. This cross-monitoring architecture satisfies the diagnostic coverage requirements for SIL 2 per IEC 62061 and PLd per ISO 13849-1 without external safety relays.

System Integration Benefits

• Single-cable drive topology via DRIVE-CLiQ: Eliminates discrete encoder cables, resolver cables, and temperature sensor wiring between the control unit and Motor Modules. One RJ45 cable per axis carries all feedback signals, reducing panel wiring labor by approximately 40% compared to conventional drive architectures.
• Deterministic PROFIBUS DP communication: Equidistant bus cycle mode (Takt-synchronous operation) synchronizes the PROFIBUS DP cycle to the drive’s current controller cycle, enabling position-accurate setpoint transmission for electronic gearing and cam applications without additional hardware synchronization modules.
• Integrated PROFIsafe over PROFIBUS: Safety-relevant signals (STO, SS1, SOS) are transmitted within the standard PROFIBUS DP frame using the PROFIsafe profile, eliminating dedicated safety bus wiring and reducing the number of physical cables between the safety PLC and the drive cabinet.
• Automatic topology recognition: On first power-up, the CU320-2 DP scans all DRIVE-CLiQ nodes and auto-generates the drive topology in SINAMICS Startdrive. This reduces initial commissioning time for a 6-axis system from several hours to under 30 minutes for an experienced engineer.
• CompactFlash-based parameter backup: All drive parameters, motor data, and topology information reside on the CompactFlash card. Unit replacement requires only card transfer — no laptop, no software connection, no parameter re-entry. This reduces MTTR in production environments to under 15 minutes.
• Onboard trace and oscilloscope function: The internal trace buffer captures up to 8 simultaneous signal channels at 125 µs resolution, storing waveform data on the CompactFlash card. This enables post-mortem analysis of transient faults without external measurement equipment, directly reducing diagnostic time during commissioning and troubleshooting.
• Scalable axis count without hardware change: The number of active drive objects can be expanded from 1 to 6 via software license activation (SINAMICS S120 option key), allowing the same hardware to serve both small 2-axis test rigs and full 6-axis production machines. This standardizes spare parts inventory across machine variants.
• TIA Portal integration via SINAMICS Startdrive: The CU320-2 DP is fully integrated into the TIA Portal engineering framework. Drive parameters, safety configuration, and motion function blocks share a single project database with the SIMATIC PLC program, enabling cross-referencing of drive fault codes directly within the PLC diagnostic buffer — a significant improvement in diagnostic transparency compared to standalone drive commissioning tools.

Quality Assurance & Global Logistics

Every 6SL3040-0JA01-0AA0 unit dispatched from our Xiamen facility is sourced through verified industrial supply channels and subjected to a structured pre-shipment inspection protocol. Visual inspection confirms label integrity — including the Siemens holographic security label, date code, country of origin marking (Germany), and CE declaration of conformity mark. Functional verification includes a 24 V DC power-on test with DRIVE-CLiQ enumeration check: the unit must successfully enumerate at least one DRIVE-CLiQ node and report a valid firmware version before it is cleared for shipment. Serial numbers are recorded and cross-referenced against shipment documentation.

Packaging follows ESD protection standards per IEC 61340-5-1. Units are placed in anti-static shielding bags, cushioned with conductive foam inserts, and packed in double-wall corrugated cartons rated for the unit’s 7.2 kg weight. For international shipments, cartons are labeled with IATA-compliant handling marks and include a packing list with serial number, firmware version, and inspection date.

Logistics from Xiamen, China covers all major global destinations. Standard express service via DHL Express, FedEx International Priority, or UPS Worldwide Express delivers to most EU, North American, and Southeast Asian destinations within 3–5 business days from payment clearance. For time-critical requirements, same-day dispatch is available for orders confirmed before 14:00 CST. Incoterms supported: EXW Xiamen, FOB Xiamen, CIF destination port. Export documentation including commercial invoice, packing list, and certificate of origin is prepared for all international shipments. A 12-month warranty against manufacturing defects is provided from the shipment date, covering component failure under normal operating conditions.
