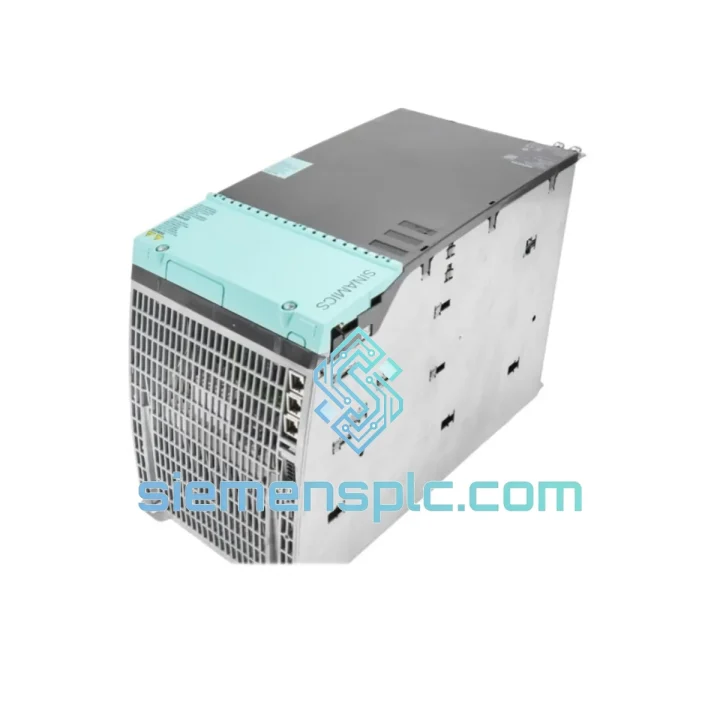

Siemens 6SL3120-1TE28-5AA3 Double Motor Module

Siemens 6SL3120-1TE28-5AA3 Double Motor Module — Stop the Clock on Your Downtime

Every minute a production line sits idle costs real money. If your SINAMICS S120 booksize system has thrown a fault and you’re staring at a dead Double Motor Module, you don’t need a sales pitch — you need the part, fast. The Siemens 6SL3120-1TE28-5AA3 (cross-compatible with 31-3AA3 / 32-0AA4 variants) is on our shelf in Xiamen right now. We ship DHL Express same day on confirmed orders placed before 15:00 CST. That’s the only promise that matters when your CNC spindle is cold.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Common fault codes that point directly to this module:

• F30001 / F30002 — DC link undervoltage or overvoltage. Before condemning the module, verify the Active Line Module output and DC bus fuses. If bus voltage is stable and the fault persists only on this axis pair, the power stage inside the Double Motor Module is the culprit.
• F07900 / A07901 — Motor overtemperature or sensor wire break. Check the KTY84 / PTC wiring at X1/X2 connectors first. If the sensor circuit is intact, the module’s internal temperature monitoring circuit may have failed.
• F30021 — Ground fault detected. Isolate each motor cable individually. If the fault clears with both motors disconnected but returns when the module powers up alone, the module’s output IGBT bridge has failed — replace immediately.
• A01590 / F01600 — DRIVE-CLiQ communication error. Swap the DRIVE-CLiQ cable first (most common cause). If the fault follows the module to a different slot, the module’s CLiQ interface chip is defective.

Step-by-step replacement procedure (field-tested):

1. Safe isolation: Initiate a controlled stop via the CU320-2, wait for DC bus discharge indicator to extinguish (typically 5 minutes after mains off), then verify <50 V DC on the bus bars with a calibrated meter. Do not rely on the LED alone.
2. Document the topology: Screenshot or photograph the DRIVE-CLiQ wiring diagram from STARTER/TIA Portal before disconnecting anything. The S120 booksize system auto-assigns component addresses based on CLiQ topology order — changing the chain sequence will trigger re-commissioning.
3. Component address check: The 6SL3120-1TE28-5AA3 stores its drive object number in non-volatile memory. When inserting the replacement unit, the CU320-2 will detect a new component and prompt for address assignment. Accept the existing address if the topology is unchanged — do not let it auto-assign a new number or your axis parameters will be orphaned.
4. DIP switch / coding plug: This booksize module has no user-accessible DIP switches for address setting — addressing is handled entirely via DRIVE-CLiQ. However, confirm the slot position in the booksize cabinet matches the original; the CU maps drive objects to physical slot order.
5. Firmware matching: The replacement module ships with factory firmware. On first DRIVE-CLiQ handshake, the CU320-2 will compare firmware versions. If there is a mismatch, use STARTER or TIA Portal to push the correct firmware version before going online. Running mismatched firmware between the CU and power modules causes intermittent F01600 faults under load.
6. Motor encoder re-homing: After replacement, absolute encoders (EnDat, Heidenhain) retain their reference — but incremental encoders require a reference point run before the axis is released to production. Confirm with the machine OEM documentation.
7. First power-on: Bring up the DC bus with the motor cables disconnected. Confirm no immediate faults. Then connect one axis at a time and run a low-speed jog to verify current feedback and encoder signals before returning to automatic mode.

Reliability in Harsh Conditions

The SINAMICS S120 booksize platform was engineered for continuous duty in environments that would kill consumer-grade electronics. The 6SL3120-1TE28-5AA3 specifically is rated for ambient temperatures up to 40°C at full load (derated to 55°C with output current reduction), making it viable in poorly ventilated machine cabinets during summer production peaks. The internal IGBT modules are mounted on a copper heat spreader with direct thermal contact to the forced-air cooling channel — not a clip-on heatsink. This matters when you’re running 85 A per axis continuously on a grinding machine that never stops.

Vibration resistance meets EN 60068-2-6 (sinusoidal, 10–500 Hz, 1 g) and EN 60068-2-27 (shock, 15 g / 11 ms half-sine). In practice, this means the module survives being mounted on a press frame or a mobile gantry without PCB solder joint fatigue — a failure mode that plagues cheaper aftermarket alternatives within 18 months. Humidity tolerance is rated to 95% RH non-condensing, which covers coastal and tropical factory environments without additional enclosure treatment.

The conformal coating on the control PCB provides an additional barrier against conductive dust and cutting fluid mist — a real-world concern in any shop running coolant-fed machining centers. Units sourced through siemensplc.com are inspected for coating integrity before dispatch; any unit showing delamination or contamination is rejected.

Global Express Logistics

Our dispatch hub is in Xiamen, Fujian — one of China’s primary export ports with direct DHL and FedEx gateway access. Here’s exactly what happens after you confirm your order:

• Same-day dispatch: Orders confirmed with payment before 15:00 CST ship the same business day. You receive a tracking number within 2 hours of handover to the carrier.
• DHL Express Worldwide: Transit time 2–4 business days to Europe, 3–5 days to North America, 1–3 days to Southeast Asia. DHL’s industrial spare parts lane is prioritized — your shipment does not sit in a general cargo queue.
• FedEx International Priority: Available as an alternative for destinations where FedEx has stronger last-mile coverage (e.g., remote US industrial zones, Canadian provinces).
• Export documentation: Commercial invoice, packing list, certificate of origin (Form E for ASEAN, EUR.1 for EU where applicable), and HS code 8504.40 declaration are prepared and included in every shipment. No customs clearance surprises.
• Packaging: Anti-static bag → foam-lined rigid carton → outer corrugated box with fragile and orientation labels. The module arrives in the same condition it left our warehouse — we’ve shipped to 40+ countries without a transit damage claim.
• Urgent freight: For truly critical situations, we can arrange next-flight-out courier on request. Contact us via WhatsApp for real-time coordination.
