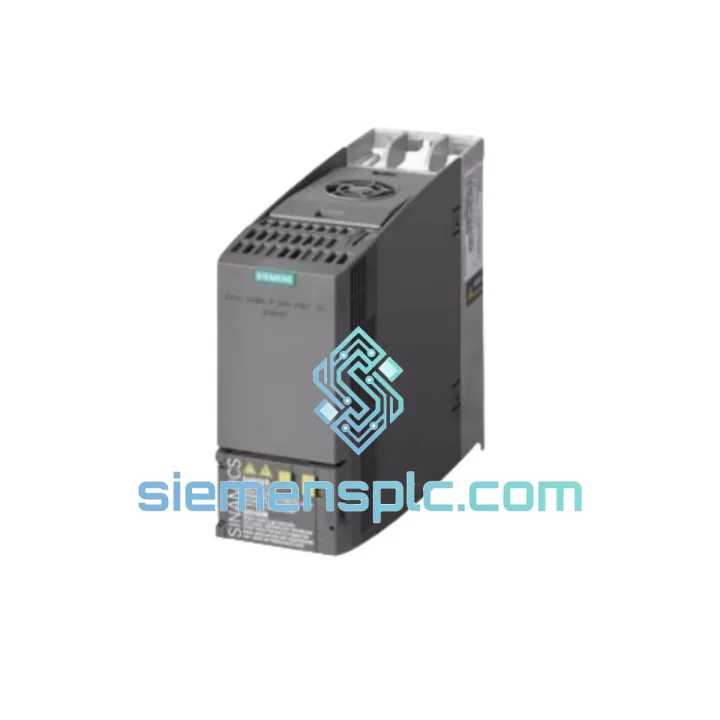

Siemens 6SL3210-1KE18-8AF1 AC Inverter Drive – SINAMICS S120

Siemens 6SL3210-1KE18-8AF1 — SINAMICS S120 Booksize Power Module in DC-Bus Coordinated Drive Systems

The 6SL3210-1KE18-8AF1 is a booksize-format single-axis Power Module within the SINAMICS S120 modular drive platform, rated at 18.5 kW continuous output with a 3-phase AC input range of 380–480 V ±10%. Its role in a control loop is unambiguous: it receives a regulated DC bus voltage from an upstream Line Module (Active Line Module, Smart Line Module, or Basic Line Module), inverts that DC potential into a variable-frequency, variable-amplitude 3-phase output, and delivers it to the connected motor under closed-loop vector or servo control executed by the associated Control Unit (CU320-2 or CU310-2). The module does not operate standalone; it is a subordinate inverter stage within a shared-bus topology, and its electrical behavior is entirely governed by the DRIVE-CLiQ command stream from the Control Unit.

In coordinated multi-axis systems — CNC machining centers, servo press lines, winding machines — this module occupies a defined slot on the shared DC bus rail. During motor deceleration, regenerated kinetic energy flows back onto the DC bus and is consumed by other motoring axes or returned to the grid via an Active Line Module, reducing net energy draw. This energy-exchange mechanism is not incidental; it is a deliberate architectural feature of the S120 booksize family that directly affects cabinet thermal load and peak demand calculations.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The internal power stage of the 6SL3210-1KE18-8AF1 is built around a three-phase IGBT bridge (six switching elements) operating in a standard two-level voltage-source inverter topology. At the default 4 kHz pulse-width modulation frequency, the module achieves a current ripple profile compatible with standard induction and permanent-magnet servo motors without additional output reactors in cable runs below 50 m. Raising the switching frequency to 8 or 16 kHz reduces audible motor noise and improves current waveform quality at the cost of increased IGBT conduction losses and a mandatory output current derating — a trade-off that must be evaluated against motor insulation class and cable capacitance in the specific installation.

EMC Architecture: The module’s DC bus input incorporates a low-inductance busbar connection designed to minimize conducted emissions on the shared rail. The gate driver circuits are galvanically isolated from the control logic via optocoupler barriers rated for reinforced insulation, ensuring that IGBT switching transients (dV/dt up to 5 kV/µs at the output terminals) do not couple back into the DRIVE-CLiQ signal path. For installations requiring compliance with EN 61800-3 Category C2 or C3, an external EMC filter on the Line Module input is the correct mitigation point; the Power Module itself does not contain an input filter stage.

Thermal Management: The forced-air cooling path draws ambient air through the front face and exhausts it from the rear of the cabinet cutout. The thermal model embedded in the Control Unit firmware monitors junction temperature via an NTC sensor on the IGBT heatsink and applies a real-time derating curve if the thermal threshold is approached — this is not a hard shutdown but a controlled current reduction that preserves drive availability at the expense of torque output. Cabinet designers must ensure a minimum 80 mm clearance above and below the module for unobstructed airflow and must account for the 38 W typical dissipation at rated load when sizing the cabinet cooling system.

DRIVE-CLiQ Protocol: The X200 DRIVE-CLiQ port carries a 100 Mbit/s full-duplex serial link that transmits actual current values, IGBT temperature, DC bus voltage, and fault codes to the Control Unit at the isochronous cycle rate (125 µs minimum). This eliminates the need for separate analog feedback wiring from the power stage and enables the Control Unit to perform automatic motor identification (MOTID) and self-commissioning routines without manual parameter entry for Siemens DRIVE-CLiQ-capable motors.

Integrated Safety Logic: The STO function is implemented via a dual-channel hardware path that disables the IGBT gate drivers independently of the firmware execution state. This means STO activation does not depend on the Control Unit CPU completing a software routine — the gate drive supply is physically interrupted within the Power Module hardware, achieving a response time below 10 ms from STO input activation to confirmed torque-off state. This architecture satisfies the requirements of IEC 62061 SIL 2 and ISO 13849-1 PLd without external safety contactors in the motor circuit.

System Integration Benefits

• Shared DC Bus Energy Exchange: In multi-axis configurations, regenerative energy from decelerating axes is directly consumed by motoring axes on the same bus rail, reducing peak grid demand by up to 30% in typical servo press and winding applications — measurable at the Line Module input current waveform.
• Isochronous PROFINET IRT Support: When paired with a CU320-2 PN Control Unit and a PROFINET IRT-capable controller (S7-1500, S7-1500T), the drive participates in a deterministic communication cycle with jitter below 1 µs, enabling synchronized multi-axis motion without a dedicated motion bus.
• Automatic Motor Data Identification: DRIVE-CLiQ-capable Siemens motors (1FK7, 1FT7, 1PH8) transmit their nameplate data, encoder type, and thermal model parameters to the Control Unit at power-up, eliminating manual motor parameterization errors and reducing commissioning time by a documented factor of 3–5× compared to analog encoder wiring.
• Firmware-Level Diagnostics Transparency: The Control Unit continuously logs IGBT temperature, DC bus ripple, output current THD, and encoder signal quality. These values are accessible via STARTER, TIA Portal Startdrive, or the AOP30 operator panel without interrupting drive operation, enabling predictive maintenance scheduling based on actual thermal history rather than fixed intervals.
• Scalable Power Range Without Rewiring: The booksize mechanical format allows replacement with a higher-rated Power Module (e.g., 6SL3210-1KE21-3AF1 at 22 kW / 45 A) by swapping the module in the same cabinet slot and updating the Control Unit parameter set — no motor cable or DC bus wiring changes required, provided the Line Module capacity is sufficient.
• Integrated STO Without External Safety Relays: Eliminating the motor-circuit safety contactor reduces cabinet component count, contact resistance losses, and contactor wear — a direct reduction in lifecycle maintenance cost for safety-critical axes.
• TIA Portal Startdrive Workflow: Full drive configuration, parameter backup, firmware update, and trace recording are executable from a single TIA Portal project, maintaining version consistency between the PLC program and drive parameter set under the same project revision control.
• Side-by-Side Mounting Without Derating: The booksize thermal design permits zero-gap side-by-side installation of multiple Power Modules on the shared DC bus rail, maximizing axis density per cabinet width — a critical factor in machine tool and packaging line cabinet design where floor space is a hard constraint.

Quality Assurance & Global Logistics

Every unit of the 6SL3210-1KE18-8AF1 supplied by siemensplc.com is a genuine Siemens OEM component sourced through verified supply channels. Prior to dispatch from our Xiamen, China facility, each module undergoes a structured pre-shipment inspection protocol: DC bus charge verification, IGBT gate drive integrity check via DRIVE-CLiQ enumeration, STO input response test, and visual inspection of connector housings and busbar contact surfaces. The serial number, firmware version, and date code are recorded and provided with the shipment documentation.

Units are packed in anti-static foam inserts within double-wall corrugated cartons, with a moisture barrier bag and silica gel desiccant to protect against humidity during ocean or air freight transit. Export documentation — commercial invoice, packing list, certificate of origin, and CE declaration of conformity — is prepared for each shipment to facilitate customs clearance in the EU, North America, Southeast Asia, and the Middle East.

Standard dispatch lead time from Xiamen is 1–3 business days for in-stock units. International express delivery via DHL Express or FedEx Priority typically achieves door-to-door transit of 3–5 business days to major industrial hubs. For time-critical plant shutdowns or production line restarts, expedited same-day dispatch is available upon confirmed order before 14:00 CST. All shipments include full tracking and are covered by a 12-month warranty against manufacturing defects from the date of invoice.
