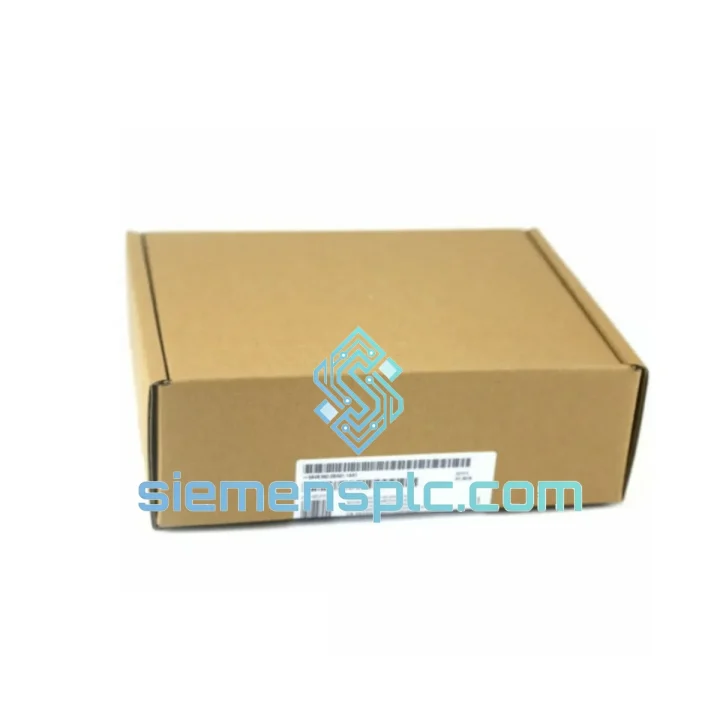

Siemens 7RE2800-0CA00 Voltage Balance Relay

Siemens 7RE2800-0CA00 Voltage Balance Relay — Stop the Bleed: Get Your Line Back Online Today

Every minute your protection panel sits offline with a failed voltage balance relay, you’re bleeding money. Tripped feeders, idle production lines, frustrated shift supervisors — it all adds up fast. The Siemens 7RE2800-0CA00 is on our shelf in Xiamen right now. We’ve shipped this exact part to substations in Southeast Asia, the Middle East, and Europe on 24-hour turnaround. No waiting on factory lead times. No chasing distributors. Just a genuine SIPROTEC relay in your hands before your next shift change.

This is not a refurbished unit. Not a grey-market pull. It’s a 100% original Siemens 7RE2800-0CA00, inspected, serial-number verified, and packed for air freight the moment your PO hits our inbox.

⚡ URGENT REQUIREMENT? Contact us now:
📧 [email protected]
📱 WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Swapping a 7RE2800-0CA00 in the field is straightforward if you follow the sequence. Rush it and you’ll be back on-site for a second call.

Common failure signatures that point to this relay:

• Spurious voltage unbalance trips with no corresponding network fault — internal threshold drift after 8–12 years of service is the usual culprit.
• Relay output contact welded closed — caused by repeated high-current trip operations without contact maintenance.
• No trip on genuine phase-loss event — measuring circuit failure, often traced to a blown VT fuse that went undetected and caused the input circuit to saturate.
• Auxiliary supply LED off but VT inputs present — internal PSU failure, common in units exposed to sustained overvoltage on the DC bus.

Step-by-step replacement procedure:

1. Isolate and lock out. De-energize the relay auxiliary supply and short the VT secondary terminals before disconnecting. Never work on live VT circuits — open-circuited VT secondaries are lethal.
2. Document existing settings. Photograph the front panel settings and record the threshold percentage and time delay before removal. The 7RE2800-0CA00 uses front-panel rotary switches for threshold and time delay — there is no DIGSI configuration file to back up, but your settings must be replicated exactly on the new unit.
3. Check rotary switch positions on the replacement unit. Factory default positions are typically at mid-range. Match them to your documented settings before installation — do not power up with default settings in a live protection scheme.
4. Verify VT secondary wiring polarity. Incorrect phase rotation on the voltage inputs will cause the relay to see permanent imbalance and trip immediately on energization. Use a phase rotation meter on the VT secondary before reconnecting.
5. Functional test before re-energizing the primary. Apply a test voltage set to simulate imbalance above threshold and confirm the output contact operates within the expected time delay. Use a secondary injection test set if available.
6. Check auxiliary supply voltage range. Confirm your panel DC bus voltage falls within the relay’s rated auxiliary supply range. Overvoltage on the aux supply is the leading cause of premature failure on this model.
7. Reset any latched alarms in the upstream SCADA or DCS before returning the feeder to service — a latched voltage unbalance alarm will prevent auto-reclosure on some schemes.

Common fault codes on associated SIPROTEC relays triggered by 7RE2800-0CA00 failure:

• 59N / V0> — Zero-sequence overvoltage alarm, can be triggered by phase-loss that the 7RE2800-0CA00 failed to clear.
• 47 / V2> — Negative-sequence overvoltage, the direct protection function this relay covers. If you’re seeing persistent 47 alarms with no network fault, the relay’s measurement circuit is suspect.
• Relay Fail / Hardware Fault — Self-diagnostic alarm on SIPROTEC 4 units indicating the auxiliary relay output has failed to respond to a trip command.

Reliability in Harsh Conditions

Substations are not clean rooms. The 7RE2800-0CA00 was designed for environments that would kill consumer-grade electronics inside a week.

Vibration: The relay’s internal components are mounted on a rigid PCB assembly with conformal coating, rated to withstand continuous vibration per IEC 60255-21. In practice, this means it survives the mechanical shock of nearby circuit breaker operations — something that shakes loose poorly designed relays over time.

Thermal cycling: Industrial panels in tropical climates see daily temperature swings of 30°C or more. The 7RE2800-0CA00’s -10°C to +55°C operating range and -25°C to +70°C storage rating mean it handles these cycles without the solder joint fatigue that plagues cheaper alternatives. Units we’ve shipped to Middle Eastern customers operating in non-air-conditioned switchrooms have logged 10+ years of continuous service.

Humidity and condensation: The IP40 front panel rating keeps dust and incidental moisture out of the measurement circuits. In high-humidity environments, the conformal coating on the PCB provides a secondary barrier against condensation-induced tracking faults — a failure mode we see frequently on non-Siemens alternatives.

Electromagnetic interference: Switchgear environments are electrically noisy. The 7RE2800-0CA00 meets IEC 60255 EMC requirements, including immunity to fast transients (IEC 61000-4-4) and surge voltages (IEC 61000-4-5). This matters when your relay is mounted in the same panel as VFDs or arc flash detection systems.

Global Express Logistics

Our warehouse is in Xiamen, China — one of the country’s primary export hubs with direct DHL and FedEx gateway access. Here’s exactly what happens after you confirm your order:

1. Same-day processing for orders confirmed before 15:00 CST. The unit is pulled from stock, inspected, and packed in ESD-safe foam within the hour.
2. Export documentation prepared in parallel: Commercial invoice, packing list, Certificate of Origin, and HS code declaration (HS 8536.49 for protection relays) — all ready before the courier collects.
3. DHL Express or FedEx International Priority — your choice. Typical transit times: Southeast Asia 1–2 days, Middle East 2–3 days, Europe 3–4 days, Americas 3–5 days.
4. Tracking number sent within 2 hours of courier collection, directly to your email and WhatsApp.
5. Customs clearance support: We provide all documentation required for smooth customs clearance. For customers in countries with specific import requirements, we coordinate with your local broker in advance.
6. Emergency weekend dispatch: If your plant is down on a Friday afternoon, call us. We have handled Saturday pickups with DHL for critical downtime situations — it costs more, but it’s available.

We’ve shipped to over 40 countries. The 7RE2800-0CA00 has gone to power utilities in Vietnam, cement plants in Saudi Arabia, paper mills in Finland, and offshore platforms in Malaysia. If there’s a DHL or FedEx pickup point within 50 km of your facility, we can get this relay to you.
