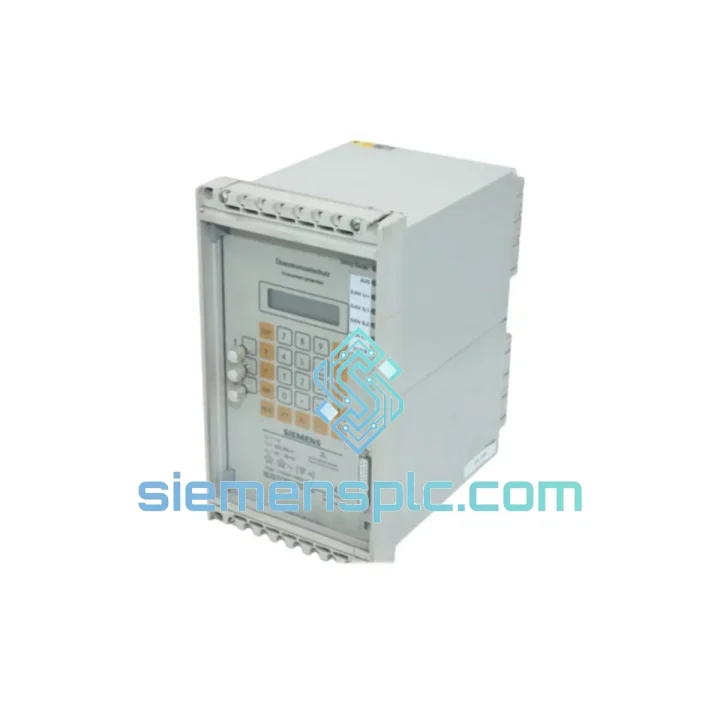

Siemens 7SJ5115-5CA00-0A/HH Protective Relay

Siemens 7SJ5115-5CA00-0A/HH — Stop the Clock on Your Downtime

Every minute a feeder is dark costs money. Whether you’re staring at a tripped MV bay at 02:00 or scrambling to restore a motor protection circuit before the morning shift, the 7SJ5115-5CA00-0A/HH is the unit you need on the shelf — not on a six-week lead time. We stock it in Xiamen, we ship it today, and it lands at your site via DHL Express or FedEx Priority before your maintenance window closes.

This is a 100% original Siemens SIPROTEC 4 numerical overcurrent and earth-fault protective relay. No refurbished boards, no remarked housings, no grey-market risk. Every unit ships with original Siemens documentation and a certificate of conformity.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Ten years of field work teaches you that most 7SJ5115 failures fall into three buckets. Here is what to check before you pull the relay and what to watch when you drop the replacement in.

Common Fault Codes & Root Causes

• LED FAULT steady on, no trip output — Internal watchdog has detected a hardware fault. Check auxiliary supply voltage at terminals X1:1/X1:2; anything below 19 V DC on a 24 V supply will lock the processor. Replace the relay if supply is confirmed good.
• Spurious 51N trips on healthy feeders — CT polarity reversal on the earth-fault input (I4). Verify CT secondary wiring against the relay terminal diagram. The /HH variant directional earth element (67N) is sensitive to VT phase sequence — confirm A-B-C rotation at terminals X3.
• DIGSI 4 connection refused / COM port timeout — The RS-485 interface uses a fixed 9600 baud default from factory. If the previous relay was reconfigured to 19200 baud, the replacement will not handshake until you match the baud rate in DIGSI 4 Device Manager. Use the front-panel optical port for initial connection if RS-485 is unresponsive.
• Relay trips on energization (inrush) — The 7SJ5115 does not have built-in inrush restraint (ANSI 68). If protecting a transformer, set the definite-time overcurrent element (50) pickup above 8x rated current or enable 2nd-harmonic blocking via parameter 1201 in DIGSI 4.

Replacement Checklist — Do This Before You Power Up

• Export all existing parameters via DIGSI 4 before removing the old relay — save the .dp4 file.
• Verify the replacement unit firmware version matches your DIGSI 4 project file. Firmware mismatch causes parameter upload rejection. Current stable firmware: V4.70.
• Engage CT shorting links before disconnecting the old relay from the CT secondary circuit. Open CT secondaries on energized feeders are a safety hazard and will destroy the new relay instantly.
• The /HH suffix requires VT inputs for directional discrimination. Confirm VT secondary fuses are intact and phase rotation is correct before enabling the 67/67N elements.
• After parameter upload, perform a secondary injection test on all protection elements before returning the feeder to service. Minimum: 50/51 pickup and timing, 50N/51N pickup, 67N directional characteristic.
• Reset the event log and fault recorder in DIGSI 4 after commissioning to establish a clean baseline for future diagnostics.

Reliability in Harsh Conditions

The SIPROTEC 4 platform was not designed for a climate-controlled server room. It was built for the environments where protection relays actually live — dusty switchgear rooms in cement plants, humid coastal substations, and vibration-heavy offshore platforms.

The 7SJ5115 housing meets IP51 on the front panel, blocking dust ingress and dripping water from above. The PCB assembly uses conformal coating on critical signal paths, providing a barrier against condensation cycles that destroy unprotected electronics within two to three years in tropical climates. Operating range of −25 °C to +55 °C covers everything from a Siberian substation in January to an uncooled switchroom in Southeast Asia in August.

Vibration and shock resistance complies with IEC 60255-21-1 Class 2 and IEC 60255-21-2 Class 1, meaning the relay maintains calibration accuracy after the mechanical stress that comes from nearby circuit breaker operations, seismic events, or road freight transport. The numerical architecture eliminates mechanical wear points — springs, contacts, dashpots — that cause electromechanical relays to drift out of calibration over time. What you set in DIGSI 4 is what the relay delivers, year after year, without periodic recalibration of mechanical elements.

Long-term component selection targets a 20-year service life. Capacitors are rated for extended temperature cycling; the real-time clock crystal is temperature-compensated to maintain accurate time-stamping for fault records even without GPS synchronization. This matters when you are reconstructing a fault sequence months after the event and need millisecond-accurate timestamps to determine whether the relay operated correctly.

Global Express Logistics

Our warehouse is in Xiamen, Fujian — one of China primary export hubs with direct access to DHL Express, FedEx International Priority, and UPS Worldwide Express gateways. This is not a drop-ship arrangement. The unit is physically on our shelf, inspected, and ready to pack.

• Order confirmed before 15:00 CST — same-day dispatch.
• Anti-static bag, foam-lined carton, humidity indicator card, and desiccant pack — the relay arrives in the same condition it left our warehouse.
• Commercial invoice, packing list, and HS code 8536.49 documentation prepared for customs clearance in all major import markets.
• DHL Express transit times: Europe 2–3 business days, North America 3–4 business days, Southeast Asia 1–2 business days, Middle East 3–4 business days.
• FedEx International Priority available as an alternative for destinations where DHL coverage is limited.
• Tracking number provided within 2 hours of dispatch. We monitor shipments and proactively contact you if a customs hold or delay is detected.
• For projects requiring multiple units or phased delivery, we can hold stock against a purchase order and release shipments on your schedule.

If your plant is down and every hour counts, contact us directly. We have handled emergency airfreight for clients across the Middle East, Europe, and Southeast Asia — same-day booking is possible for orders confirmed before noon CST.
