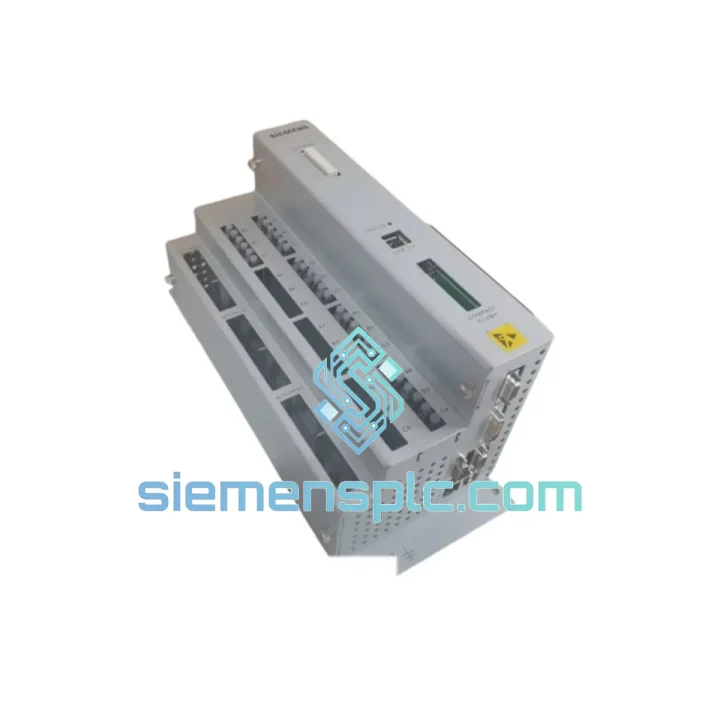

Siemens A5E37764609 NXGpro Control Board: Central Processing Architecture for SINAMICS Medium-Voltage Drive Systems

The A5E37764609 is the NXGpro digital control board manufactured by Siemens AG for deployment within the SINAMICS medium-voltage (MV) drive platform — specifically the GM150, SM150, and GL150 cabinet families. Its function is not peripheral: this board is the sole execution environment for all closed-loop motor control algorithms, protection trip logic, fieldbus communication stacks, and real-time diagnostic data acquisition within the drive cabinet. Without a functional NXGpro board, the entire MV drive is inoperable. Understanding its internal architecture is therefore prerequisite to any procurement, replacement, or upgrade decision.

At the processing core, the A5E37764609 integrates a dual-core DSP (Digital Signal Processor) paired with a dedicated FPGA fabric. The DSP handles floating-point vector control computations — flux estimation, torque reference generation, current regulator output — at a task cycle of under 1 ms. The FPGA operates in parallel, managing deterministic I/O scanning, PWM gate-pulse generation with sub-microsecond timing resolution, and hardware-level protection interlocks that cannot be delayed by software scheduling. This hardware partitioning is a deliberate architectural decision: it ensures that protection functions (overcurrent, overvoltage, ground fault, thermal overload) execute independently of the control software state, eliminating the risk of a software fault masking a hardware protection event.

The board’s backplane interface connects directly to the SINAMICS MV drive’s internal communication bus, through which it exchanges real-time data with the power cell gate driver boards, the HMI panel, and the optional redundancy module. The backplane protocol operates at a fixed deterministic cycle, guaranteeing that gate firing commands arrive at each power cell within a bounded latency window — a requirement for stable multi-cell series topology operation at medium voltage levels (typically 2.3 kV to 11 kV output).

The I/O subsystem on the A5E37764609 provides 16 configurable digital inputs, 8 digital outputs (relay and transistor types), 4 analog inputs (±10 V / 0–20 mA), and 2 analog outputs. All digital I/O channels are optically isolated, with isolation voltage rated to withstand the common-mode transients characteristic of MV switchgear environments. The analog input channels use 16-bit ADC resolution, which translates to a measurement granularity of approximately 0.3 mV on a ±10 V range — sufficient for precise speed feedback and process variable monitoring without external signal conditioning in most industrial installations.

Communication interfaces include PROFIBUS DP (up to 12 Mbit/s) and PROFINET IO (100 Mbit/s), with Modbus RTU/TCP available as a drive-configuration option. The PROFINET stack on the NXGpro supports IRT (Isochronous Real-Time) mode, enabling cycle-synchronous setpoint transmission from a Siemens S7-1500 or S7-400H PLC with jitter below 1 µs — a specification relevant for coordinated multi-drive applications such as tandem rolling mills or synchronized conveyor systems.

Parameter management is handled via the STARTER commissioning tool or SINAMICS Startdrive (TIA Portal integrated). The NXGpro board supports SD card-based firmware updates and parameter backup, allowing field engineers to restore a replacement board to a known configuration state without a laptop connection — a practical advantage during unplanned maintenance events in remote installations.

The board operates from a 24 V DC internal bus supply derived from the drive cabinet’s SMPS. Operating temperature range is 0 °C to +55 °C ambient, with storage rated to −40 °C / +70 °C. Humidity tolerance is 5–95% RH non-condensing. The PCB layout incorporates multi-layer ground planes, differential signal routing on all high-speed lines, and ferrite bead filtering on power supply rails — design measures that collectively achieve compliance with IEC 61800-3 Category C3 EMC requirements without external filtering in standard cabinet configurations.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The NXGpro board’s EMC architecture merits specific attention for engineers specifying replacements in high-interference environments. The PCB uses a 6-layer stackup with dedicated ground and power planes on inner layers, which reduces loop inductance on the 24 V supply rail to below 5 nH — directly limiting conducted emission amplitudes at frequencies above 1 MHz. All inter-board connectors use shielded housings with 360° termination to the chassis ground plane, preventing common-mode currents from coupling into signal traces.

The optical isolation barrier on digital I/O channels uses high-speed optocouplers with a propagation delay of approximately 1 µs, which is negligible relative to the 1 ms control cycle but sufficient to block transient voltages up to 2.5 kV peak — a realistic figure for induced transients in MV switchgear panels during switching operations. The isolation barrier also breaks ground loops between the control board and field wiring, a common source of measurement noise in analog feedback channels.

The FPGA’s role in protection logic deserves emphasis. Hardware-implemented overcurrent detection operates on raw ADC samples at the FPGA clock rate (typically 50–100 MHz), meaning a fault condition can be detected and a trip signal asserted within 10–20 µs of the fault onset — well within the response time required to protect IGBT power cells from destructive overcurrent. This is architecturally superior to software-polled protection schemes, where interrupt latency and task scheduling can introduce delays of several milliseconds.

The backplane bus interface uses a differential serial protocol with CRC error detection on every frame. If a frame is corrupted (e.g., due to EMI on the backplane), the NXGpro asserts a communication fault and initiates a controlled ramp-down rather than continuing with stale data — a fail-safe behavior that prevents undefined drive states during transient interference events.

System Integration Benefits

• Direct cabinet compatibility: The A5E37764609 is a validated drop-in replacement for NXG-based SINAMICS MV cabinets. No backplane re-wiring, no connector adaptation, no firmware re-parameterization from scratch — existing parameter sets are transferable via SD card backup.
• Deterministic real-time response: The DSP+FPGA architecture guarantees a bounded control cycle of < 1 ms, ensuring consistent torque response under variable load transients — critical for applications such as mine hoists and rolling mills where speed deviation directly affects product quality or safety.
• Diagnostic transparency: Onboard non-volatile memory logs fault events with timestamps, pre-fault waveform snapshots (oscilloscope function), and parameter state at the moment of trip. This data is accessible via STARTER without requiring a live drive restart, enabling root-cause analysis without production interruption.
• IRT PROFINET synchronization: Enables cycle-synchronous setpoint exchange with S7-1500/S7-400H PLCs at sub-millisecond jitter, supporting coordinated multi-drive applications without external synchronization hardware.
• Redundancy-ready architecture: The NXGpro board interfaces with Siemens’ optional drive redundancy module, supporting hot-standby control board configurations for applications where unplanned downtime carries high economic or safety cost.
• Field firmware upgrades: Firmware updates are applied via SD card or PROFINET without drive disassembly, allowing Siemens-released functional improvements and security patches to be deployed during scheduled maintenance windows.
• Scalable I/O expansion: The 16 DI / 8 DO baseline can be extended via the drive’s I/O expansion slots, accommodating complex interlocking schemes without external relay panels.
• TIA Portal integration: SINAMICS Startdrive provides full NXGpro parameterization within the TIA Portal engineering environment, enabling unified project management alongside S7 PLC programs, HMI configurations, and network topology — reducing engineering overhead for multi-drive projects.
