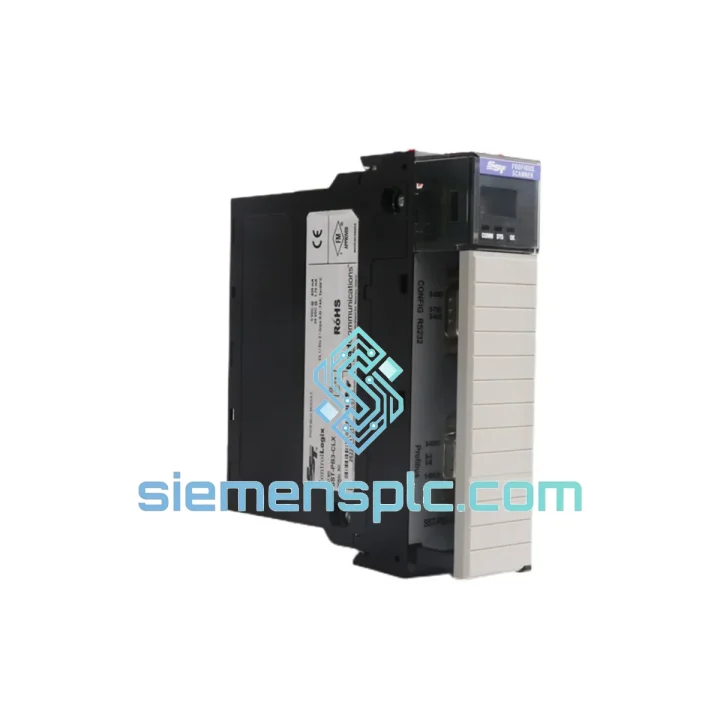

SST SST-PB3-CLX Communication Module – ControlLogix PROFIBUS DP

SST-PB3-CLX: PROFIBUS DP Master/Slave Scanner for Allen-Bradley ControlLogix 1756 Backplane

The SST-PB3-CLX is a single-slot communication module engineered for the Allen-Bradley ControlLogix 1756 backplane, providing a deterministic PROFIBUS DP interface between a Logix controller and field-level devices. Manufactured by SST (a Woodhead/Molex brand), this module implements the full EN 50170 / IEC 61158 PROFIBUS DP protocol stack in hardware, offloading network management from the host CPU and delivering consistent, scan-cycle-independent data exchange across up to 125 slave nodes. In distributed manufacturing architectures where PROFIBUS DP remains the dominant fieldbus — particularly in legacy automotive, chemical, and utilities installations — the SST-PB3-CLX provides the most direct integration path into a ControlLogix control system without requiring an external gateway or protocol converter.

The module operates as a Class 1 DPM1 master for cyclic I/O exchange and simultaneously supports Class 2 DPM2 acyclic services (DP-V1), enabling parameterization, diagnostics, and alarm handling for intelligent field devices such as variable-speed drives, smart transmitters, and valve positioners. Its onboard PROFIBUS controller manages token-ring arbitration, slave watchdog supervision, and bus timing independently of the ControlLogix scan cycle, ensuring that field data integrity is maintained even during controller task overruns.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The SST-PB3-CLX is built around a dedicated PROFIBUS ASIC (application-specific integrated circuit) that handles the complete data link layer (DLL) and physical layer (PHY) processing of the PROFIBUS DP protocol stack. This architectural decision is significant: by separating fieldbus processing from the ControlLogix backplane communication engine, the module eliminates jitter introduced by shared CPU resources. The PROFIBUS token-passing bus access protocol — where each master holds the token for a defined time slice — is managed entirely within the module’s onboard firmware, with cycle times deterministic to within microseconds regardless of the Logix controller’s task load.

The RS-485 physical layer driver circuit incorporates galvanic isolation between the PROFIBUS cable segment and the module’s internal logic. This isolation barrier, typically rated at 500 V DC or higher, protects the ControlLogix backplane from ground potential differences common in large industrial installations where cable runs span multiple electrical panels or buildings. The isolation also attenuates common-mode noise injected onto the PROFIBUS cable by adjacent power cables, variable-frequency drives, and switching power supplies — a critical EMC consideration in environments with high electromagnetic interference density.

The module’s onboard dual-port RAM (DPRAM) architecture provides the data exchange interface between the PROFIBUS network controller and the ControlLogix backplane interface logic. Input and output data tables are maintained in DPRAM and updated asynchronously: the PROFIBUS controller writes fresh slave data into the input table at the end of each bus cycle, while the backplane interface reads from the same table on the Logix controller’s I/O scan. This asynchronous double-buffering prevents data corruption during simultaneous read/write operations and ensures that the Logix controller always reads a coherent, complete snapshot of the PROFIBUS network state.

Slave watchdog supervision is implemented in hardware. Each slave node is assigned a watchdog timeout value during configuration. If a slave fails to respond within its watchdog window — due to cable fault, device failure, or power loss — the module sets the corresponding slave’s diagnostic bit in the controller tag structure and, depending on configuration, either clears the slave’s output data to zero or holds the last valid value. This fail-safe behavior is configurable per slave and is enforced by the module’s firmware independently of the Logix controller, ensuring that field devices reach a safe state even if the controller is in program mode or undergoing a firmware update.

System Integration Benefits

• Zero-gateway architecture: The SST-PB3-CLX occupies a standard 1756 backplane slot and maps PROFIBUS I/O data directly to Logix controller tags. No external protocol converter, serial gateway, or Ethernet-to-PROFIBUS bridge is required, eliminating an additional failure point and reducing network latency by one full protocol translation layer.
• Deterministic scan cycle decoupling: The module’s onboard PROFIBUS controller runs its own bus cycle independently of the Logix controller scan. Field data is updated at the PROFIBUS bus cycle rate (which can be sub-millisecond at 12 Mbps with few slaves), while the Logix controller reads the latest available data on its own scan. This decoupling prevents PROFIBUS bus timing from being constrained by controller task execution time.
• DP-V1 acyclic service support: As a Class 2 master, the module supports DP-V1 read/write services for device parameterization and extended diagnostics. Engineers can read drive fault histories, write PID setpoints, or retrieve calibration data from smart transmitters directly from Logix ladder logic using MSG instructions — without interrupting the cyclic I/O exchange.
• Per-slave diagnostic transparency: Each slave’s diagnostic data — including module status, channel-level faults, and manufacturer-specific diagnostic bytes — is mapped to dedicated controller tags. This enables the Logix controller to implement structured alarm management and predictive maintenance logic based on real-time device health data rather than inferred fault conditions.
• GSD-based plug-and-play configuration: Standard GSD files from any PROFIBUS-certified device manufacturer are imported directly into the SST configuration tool. The tool generates the network configuration binary loaded into the module, ensuring that slave address assignments, I/O data sizes, and watchdog parameters are validated against the device’s certified GSD specification before commissioning.
• ControlLogix redundancy compatibility: The module is compatible with ControlLogix redundancy chassis configurations. In a redundant system, the primary and secondary controllers each host an SST-PB3-CLX; upon controller switchover, the new primary module assumes PROFIBUS master token ownership with minimal disruption to the field network, supporting high-availability process control architectures.
• Wide baud rate range for legacy network integration: Support for baud rates from 9.6 kbps to 12 Mbps allows the module to integrate into existing PROFIBUS networks operating at legacy speeds without requiring network-wide reconfiguration. This is particularly relevant in brownfield projects where older PROFIBUS devices with limited baud rate support must coexist with newer high-speed nodes.
• Studio 5000 / RSLogix 5000 native workflow: Configuration and I/O tag mapping follow the standard Logix add-on profile (AOP) workflow. Engineers familiar with ControlLogix I/O configuration can commission the SST-PB3-CLX without specialized PROFIBUS training, reducing project engineering hours and commissioning risk.

Quality Assurance & Global Logistics

Every SST-PB3-CLX unit supplied by siemensplc.com is sourced from verified supply channels with documented provenance. Pre-shipment inspection covers physical label verification (part number, hardware revision, date code), connector integrity check, and anti-static packaging confirmation. Units are cross-referenced against manufacturer authentic product databases to mitigate counterfeit risk — a non-trivial concern in the industrial automation aftermarket. A Certificate of Conformance (CoC) is available upon request for qualified procurement orders.

Logistics operations are based in Xiamen, China, a major export hub with direct access to international air freight and sea freight services. Standard orders are dispatched within 1–3 business days of order confirmation. Express air freight to Europe, North America, Southeast Asia, and the Middle East typically achieves door-to-door delivery in 3–7 business days. Full export documentation — commercial invoice, packing list, and certificate of origin — is provided for all international shipments. Customs HS code classification support is available upon request to facilitate smooth import clearance in destination countries.

All units are covered by a 12-month warranty from the date of shipment. Warranty claims are handled directly by siemensplc.com’s technical team, with replacement or credit resolution targeted within 5 business days of confirmed fault diagnosis.
