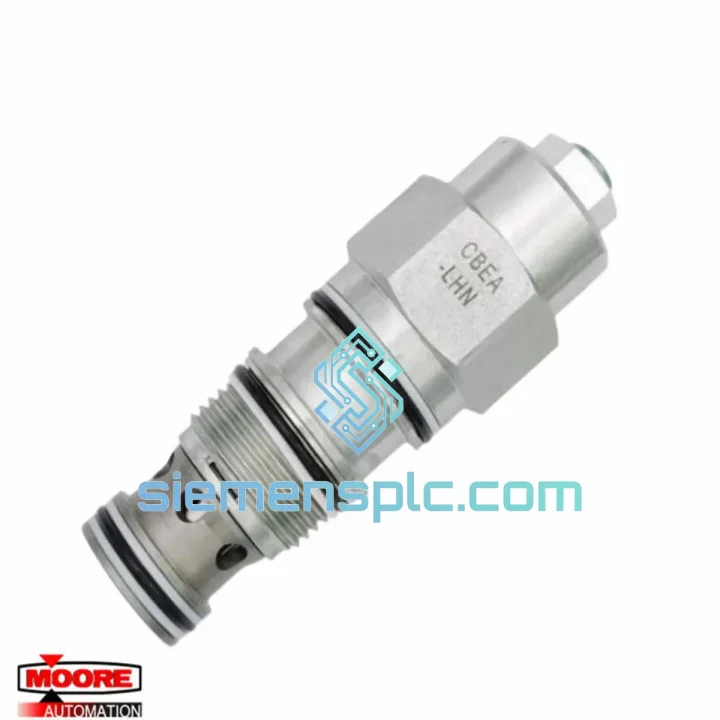

SUN Hydraulics CBEA-LHN-XAW/S Counterbalance Valve – CBEA Series

CBEA-LHN-XAW/S: Non-Relieving Pilot-Operated Counterbalance Valve for Deterministic Load Control

The SUN Hydraulics CBEA-LHN-XAW/S is a pilot-operated counterbalance cartridge valve designed for T-11A cavity manifold integration. In hydraulic circuits where vertical actuators, suspended loads, or overrunning forces demand zero-drift load retention, this valve functions as the primary pressure-holding element between the directional control valve and the actuator port. Its architecture encodes four independent design decisions — low crack pressure (L), high pilot ratio (H), non-relieving seat geometry (N), and external pilot actuation (XAW) — each of which directly governs circuit behavior under dynamic load conditions.

The CBEA series is manufactured by SUN Hydraulics (Helios Technologies) and has accumulated a substantial installed base across mobile hydraulics, industrial press systems, and subsea manifold assemblies. The CBEA-LHN-XAW/S configuration is selected specifically for circuits where pilot supply pressure is constrained, back-pressure must be preserved against thermal expansion or pressure intensification, and load-induced oscillation must be suppressed at the valve level rather than through external damping orifices.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

Dual-Poppet Cartridge Architecture: The CBEA-LHN-XAW/S integrates two functional poppets within a single T-11A cartridge body: a load-holding poppet that seals against back-pressure from the actuator port, and a free-flow check poppet that permits unrestricted flow in the actuating direction. This co-axial arrangement eliminates the need for a separate external check valve in the supply line, reducing manifold port count and the number of potential external leak paths from two components to one.

High Pilot Ratio (H) — Quantified Circuit Impact: The H-code pilot ratio of ≥4.5:1 means that for every 1 bar of pilot pressure applied at the XAW port, the valve can overcome 4.5 bar of load-induced back-pressure at the holding poppet. In a practical circuit with 150 bar actuator back-pressure, the minimum pilot pressure required to initiate controlled load lowering is approximately 33 bar — well within the capability of a standard 35–50 bar pilot supply circuit. This ratio is critical in mobile equipment where pilot pump output drops at low engine idle speed.

Non-Relieving Seat Geometry (N) — Pressure Containment Logic: The non-relieving designation means the load-holding poppet does not provide a bypass path to tank when actuator port pressure exceeds the crack pressure set point. Pressure intensification from thermal expansion of trapped fluid, or from external forces acting on a stationary actuator, is fully contained within the actuator port circuit. Circuit designers must size a separate relief valve on the actuator port to handle these conditions. The benefit is that back-pressure is preserved under dynamic overrunning loads, preventing rod-side cavitation in differential cylinders during rapid extension strokes.

External Pilot Port (XAW) — Oscillation Suppression: Internal pilot counterbalance valves derive their opening signal from the same port that carries load-induced back-pressure. Under variable load conditions, this creates a feedback loop: rising load pressure increases the pilot signal, which opens the valve further, which reduces back-pressure, which reduces the pilot signal — a cycle that manifests as pressure oscillation or valve chatter. The XAW external pilot configuration breaks this feedback loop entirely. The pilot signal is sourced from the directional control valve outlet, which is load-independent, delivering a stable, monotonic opening signal regardless of actuator load variation.

Thread Interface and Seal Integrity: The T-11A cartridge thread provides a metal-to-metal shoulder seal at the cavity face, supplemented by O-ring seals at the port interfaces. This dual-seal arrangement ensures that even if an O-ring degrades over service life, the metal shoulder contact prevents catastrophic external leakage. The Buna-N (/S) elastomers are compatible with mineral-based hydraulic fluids across the full −40 °C to +120 °C range, covering arctic mobile equipment and high-ambient industrial press environments within a single seal specification.

System Integration Benefits

• Integral Free-Flow Check Eliminates External Component: The built-in check poppet removes one discrete valve from the manifold BOM, reducing machining complexity, assembly time, and the number of potential external leak points in the actuator circuit.
• Load-Independent Pilot Signal Prevents Chatter: External pilot (XAW) decouples the opening signal from load-induced back-pressure, eliminating the pressure feedback oscillation that causes hunting in internally piloted counterbalance valves under variable load profiles.
• Low Pilot Pressure Demand Supports Idle-Speed Operation: The ≥4.5:1 pilot ratio allows the valve to open reliably at pilot supply pressures as low as 20–35 bar, maintaining controlled load-lowering capability even when the prime mover is at low idle and pilot pump output is reduced.
• Zero-Leakage Static Load-Holding: Poppet-type seating geometry provides metal-to-seat contact under static load conditions, delivering measurably lower internal leakage than spool-type counterbalance valves — critical for long-duration load-holding in crane and press applications.
• Back-Pressure Preservation Prevents Rod-Side Cavitation: Non-relieving design maintains actuator back-pressure during rapid extension strokes on differential cylinders, preventing the sub-atmospheric pressure conditions that cause cavitation erosion on rod-side port surfaces.
• T-11A Cavity Compatibility Enables Direct Drop-In Replacement: Standard SUN cavity dimensions allow the CBEA-LHN-XAW/S to replace any T-11A counterbalance cartridge without manifold re-machining, reducing planned maintenance downtime to the time required for cartridge removal and re-torque.
• External Pilot Port Supports Real-Time Circuit Diagnostics: A pressure transducer installed at the XAW pilot port provides continuous monitoring of pilot signal integrity. Degradation in pilot pressure — indicating pump wear, filter restriction, or pilot line leakage — is detectable before it affects load-lowering performance, enabling condition-based maintenance scheduling.
• Inherent EMC Immunity: As a purely hydromechanical device with no electronic components, the CBEA-LHN-XAW/S is unaffected by electromagnetic interference from variable-frequency drives, welding equipment, or high-frequency switching power supplies operating in the same installation environment.
• Dual Counterbalance Configuration for Double-Acting Cylinders: Two CBEA-LHN-XAW/S valves can be mounted in a single manifold block to provide independent load-holding on both extend and retract ports of a double-acting cylinder, with each valve’s external pilot port cross-connected to the opposing supply line for automatic actuation.

Quality Assurance & Global Logistics

Each CBEA-LHN-XAW/S unit dispatched from siemensplc.com is sourced through verified supply channels for SUN Hydraulics (Helios Technologies) components. Pre-shipment inspection at our Xiamen facility covers part marking verification against the SUN Hydraulics part numbering convention, T-11A thread condition check, seal integrity visual inspection, and confirmation of original manufacturer packaging where available. Batch and serial traceability records are retained for warranty and audit support.

A 12-month warranty applies from the date of dispatch, covering manufacturing defects under operating conditions consistent with the SUN Hydraulics CBEA series datasheet parameters. Warranty claims are processed with full traceability documentation.

Logistics Infrastructure — Xiamen, China: Our Xiamen warehouse operates with direct access to Xiamen Gaoqi International Airport (XMN) and Xiamen Port, one of China’s five major container ports by throughput volume. Express courier dispatch via DHL, FedEx, and UPS reaches most international destinations within 3–7 business days. Standard export documentation — commercial invoice, packing list, certificate of origin, and HS code declaration — is prepared as standard for all international shipments. Sea freight consolidation is available for volume orders. Third-party inspection and material certification documentation can be arranged prior to order confirmation upon request.
