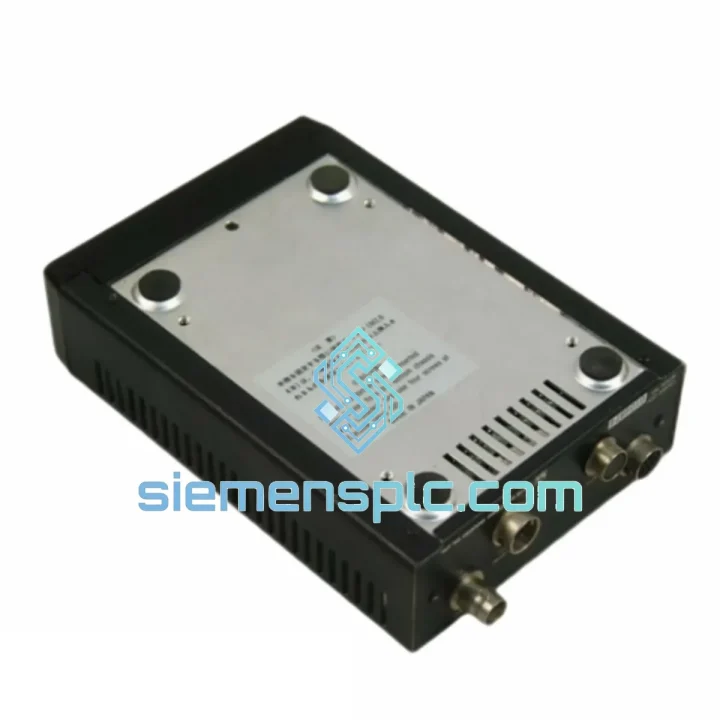

TELI CS3500C Camera Control Unit

TELI CS3500C: Stop the Line Bleeding — Get Your Replacement Shipped Today

Every hour your vision inspection line sits idle, you’re burning money. A failed CS3500C control unit doesn’t just halt one camera — it can take down an entire AOI station, a wafer inspection cell, or a multi-camera FPD defect detection system. We stock the TELI CS3500C specifically because we’ve seen what a 3-week OEM lead time does to a production schedule. Our Xiamen warehouse ships same-day on confirmed orders. That’s the difference between a 6-hour recovery and a 6-week nightmare.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

After handling dozens of CS3500C field swaps, here’s what actually trips engineers up during replacement — not the obvious stuff, but the details that cost you another 4 hours if you miss them.

1. Camera Link Cable Integrity First
Before condemning the CS3500C, pull the Camera Link cable and inspect both MDR-26 connectors under magnification. Bent pins on pin 1–4 (clock pair) cause intermittent sync loss that mimics a dead control unit. Swap the cable with a known-good one and power-cycle before pulling the module.

2. Trigger Logic Level Mismatch
The CS3500C accepts TTL-level external trigger (0–5V). If your PLC outputs 24V trigger signals through a relay without a voltage divider or optocoupler, you will damage the trigger input stage. This is the single most common cause of CS3500C failures in automotive and food-line environments. Always verify your trigger conditioning circuit before installing the replacement unit.

3. RS-232C Baud Rate Lock
Default baud rate is 9600 bps. If the previous unit was reconfigured via TELI SDK to 38400 or 115200, your host software will fail to enumerate the new unit. Check your TELI SDK configuration file (typically TLIConfig.ini) for the BaudRate parameter and match it before first power-on.

4. Frame Grabber Driver Re-enumeration
On Windows hosts using Matrox Solios or NI PCIe-1433 frame grabbers, the CS3500C enumerates as a new device after replacement. You must re-run the Camera Link configuration wizard in Matrox Intellicam or NI MAX to re-map the camera descriptor file (.ccf). Skipping this step results in a black image or camera-not-found error even with a fully functional unit.

5. Exposure Synchronization After Swap
If your system uses hardware-triggered exposure with a strobe controller (CCS, Effilux, etc.), verify that the strobe delay offset is still calibrated after replacement. Mechanical tolerances in the new unit’s shutter mechanism can shift the optimal strobe delay by ±50µs. Run a calibration capture sequence before returning the line to production.

6. Firmware Version Check
TELI released firmware revisions for the CS3500C addressing color interpolation artifacts in high-contrast scenes. If your replacement unit ships with an older firmware build, you may see banding or color fringing that wasn’t present before. Request the firmware version from us at time of order — we can pre-flash to your required revision before shipment.

Reliability in Harsh Conditions

The CS3500C was engineered for the factory floor, not a lab bench. TELI’s design validation for the CS3500 series includes vibration testing per IEC 60068-2-6 (sinusoidal, 10–500 Hz, 2G), shock testing per IEC 60068-2-27 (15G, 11ms half-sine), and thermal cycling across the full -20°C to +70°C storage range. The internal PCB uses conformal coating on signal-critical traces, providing baseline protection against condensation in environments where temperature swings cause brief humidity spikes — common in facilities with large overhead doors or seasonal HVAC transitions.

The Camera Link MDR-26 connector is secured with a locking screw mechanism, not a friction-fit clip. In high-vibration environments — stamping presses, conveyor-mounted inspection heads, robotic end-of-arm tooling — this matters. Friction-fit connectors work loose within weeks. The CS3500C’s locking interface stays seated through 2G continuous vibration without signal degradation.

Thermal management is passive, with no internal fan. This eliminates the single most common mechanical failure point in industrial electronics. In enclosures where ambient temperature approaches the 50°C operating limit, mount the unit with at least 30mm clearance on all sides and orient the chassis so natural convection can flow across the heatsink fins. We’ve seen units run continuously for 5+ years in properly ventilated enclosures without thermal-related failures.

Global Express Logistics

Our Xiamen warehouse is 12 minutes from Xiamen Gaoqi International Airport (XMN), which operates direct cargo flights to major hubs in Europe, North America, Southeast Asia, and the Middle East. This is not a coincidence — it’s the reason we chose this location specifically for time-critical industrial parts fulfillment.

Standard Express Routing:

• DHL Express Worldwide: Xiamen → destination in 2–4 business days for most of Europe, North America, and Australia. Tracking activated within 2 hours of pickup.
• FedEx International Priority: Available for US, Canada, and Mexico destinations. Typically 1–3 business days from XMN. Preferred for shipments requiring FedEx customs brokerage integration.
• SF Express International: Optimized for Southeast Asia and Hong Kong. Next-day delivery to Singapore, Malaysia, and Thailand on orders confirmed before 14:00 CST.

Order-to-Dispatch Process:
1. Order confirmed + payment cleared → warehouse pick ticket issued within 30 minutes.
2. Unit pulled, inspected, and photographed → packed in anti-static foam with desiccant.
3. Airway bill generated → carrier pickup scheduled same afternoon (for orders before 15:00 CST).
4. Tracking number sent to buyer via email and WhatsApp within 1 hour of carrier pickup.
5. Customs documentation (commercial invoice, packing list, COO) included in shipment and emailed separately for pre-clearance.

For destinations with complex import requirements (India, Brazil, Russia, Turkey), contact us before ordering. We have established customs broker relationships in these markets and can advise on HS code classification, import duty estimates, and documentation requirements to prevent clearance delays.
