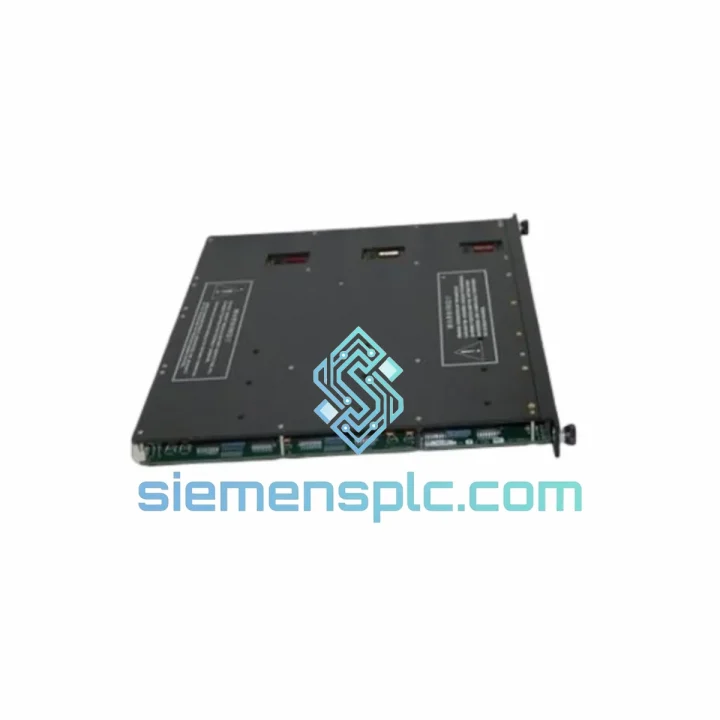

TRICONEX 7400210-010 Digital Input Module – Tricon TMR

TRICONEX 7400210-010: 32-Channel Discrete Input Acquisition in Triple Modular Redundant Safety Architectures

The TRICONEX 7400210-010 is a 32-channel digital input module engineered exclusively for deployment within the Tricon Triple Modular Redundant (TMR) safety system platform. Its primary function within a safety instrumented system (SIS) is the deterministic acquisition of discrete field signals — dry contacts, wet contacts, and proximity switch outputs — and the delivery of those signals, with per-channel fault isolation, across the Tricon proprietary backplane bus to all three independent processing legs simultaneously. This architecture ensures that no single-point failure in the field wiring, module circuitry, or backplane communication path can compromise the voted safety output.

In a Tricon TMR control loop, the 7400210-010 occupies a defined I/O slot and presents its 32 input channels to the three independent CPUs (Leg A, Leg B, Leg C) via the backplane. Each leg reads the same physical field state independently. The TMR voter logic then applies a 2-out-of-3 (2oo3) majority vote before any safety function is executed. This means the module must maintain signal integrity and timing consistency across all three data paths — a requirement the 7400210-010 meets through its synchronous backplane interface and hardware-level channel diagnostics.

Real-time stock inquiry and RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 7400210-010 is built around a per-channel opto-coupler isolation stage that electrically decouples field wiring from the module’s internal logic circuitry. Each opto-coupler presents a defined input impedance to the field device, limiting the current draw to approximately 7 mA at 24 VDC — a value low enough to avoid false triggering on leakage currents from solid-state field devices, yet high enough to reliably drive the LED junction of the opto-coupler across the full 18–32 VDC input range.

The isolation barrier provides 1,500 VAC withstand between the field side and the backplane logic side. This is not merely a regulatory checkbox — in process plant environments where ground loops, induced voltages from adjacent power cables, and transient surges from solenoid valve switching are routine, this isolation level prevents common-mode noise from corrupting the digital state presented to the TMR voter. The module’s EMC design follows IEC 61000-4 series test criteria, including 4 kV contact discharge (ESD), 2 kV fast transient burst (EFT), and 1 kV surge immunity on signal lines.

On the backplane side, the module interfaces with the Tricon chassis through a synchronous, time-deterministic bus. The 7400210-010 does not buffer or queue input states — it presents the current sampled state of all 32 channels to the backplane at each scan cycle boundary. This synchronous presentation is critical: all three TMR legs must read the same physical snapshot of field conditions within the same scan window. Any asynchronous or delayed data would introduce a temporal skew between legs, potentially causing the 2oo3 voter to operate on inconsistent data sets during transient field events.

The module’s on-board diagnostic logic continuously monitors each channel for open-circuit conditions. An open-wire fault — caused by a broken field cable or a disconnected terminal — is detected by the absence of the expected current flow through the opto-coupler LED. This fault is reported to the Tricon main processor via the backplane status register, flagged in TriStation 1131, and can be configured to trigger a diagnostic alarm without forcing a safety shutdown. This separation of diagnostic alarms from safety actions is a fundamental SIL 3 design requirement: the system must be able to detect and report faults without inadvertently initiating spurious process trips.

The PCB revision suffix (-010) denotes the initial production release of this module family. Subsequent revisions (-020, -030) introduced minor component-level changes — typically capacitor or resistor tolerance upgrades — without altering the functional specification or backplane protocol. All revisions are electrically and functionally interchangeable within the same Tricon chassis generation.

System Integration Benefits

• 2oo3 Voter Compatibility Without Re-Engineering: The 7400210-010 is natively designed for the Tricon TMR architecture. Its backplane timing and data format are matched to the Tricon main processor’s voter logic, eliminating any need for signal conditioning, protocol conversion, or custom firmware to achieve SIL 3 voted input acquisition.
• Per-Channel Open-Wire Diagnostics: Each of the 32 input channels is individually monitored for open-circuit faults. Fault data is available at the channel level in TriStation 1131, enabling maintenance teams to isolate a single broken field cable without ambiguity — reducing mean time to repair (MTTR) in safety-critical loops.
• Hot-Swap Online Replacement: The module supports live replacement within the Tricon chassis while the system remains in service. The replacement module is automatically initialized by the main processor, and the channel data is re-integrated into the TMR vote within one scan cycle — typically under 100 ms — without requiring a process shutdown or a manual system restart.
• Deterministic Scan Synchronization: Input states are presented to all three TMR legs at the same scan cycle boundary, ensuring the 2oo3 voter always operates on temporally consistent data. This eliminates race conditions that could cause transient voter disagreements during fast-changing field events such as valve position feedback transitions.
• 1,500 VAC Field-to-Backplane Isolation: The opto-coupler isolation barrier protects the Tricon backplane and CPU logic from field-side voltage transients, ground loops, and induced surges. This directly reduces the probability of a common-cause failure (CCF) propagating from the field wiring into the safety system’s logic layer.
• IEC 61508 SIL 3 Validated Architecture: The module operates within the Tricon system’s certified SIL 3 boundary. No additional safety analysis or PFD (Probability of Failure on Demand) calculation is required for the input acquisition function — the validated system architecture covers the 7400210-010 as a defined component within the certified configuration.
• TriStation 1131 Native Integration: The module is fully recognized by the TriStation 1131 programming environment. Channel assignments, diagnostic status, and forced states are all accessible through the standard TriStation I/O configuration interface, with no third-party drivers or custom I/O maps required.
• Broad Field Device Compatibility: The 18–32 VDC input range and dual wet/dry contact support allow the 7400210-010 to interface directly with a wide range of field devices — including NAMUR proximity switches, 2-wire transmitter discrete outputs, relay contacts, and solenoid valve position feedback switches — without external signal conditioning hardware.
• Fault Isolation Without Spurious Trip: Diagnostic faults detected by the module’s on-board logic are reported as status alarms, not as forced safety states. This design prevents a single open-wire fault from triggering an unplanned process shutdown, preserving plant availability while maintaining full diagnostic transparency.
• Long-Term Spare Parts Availability: As a widely deployed module across global oil and gas, petrochemical, and power generation installations, the 7400210-010 has an established surplus market with verified stock available from specialist distributors. This supports long-term asset management strategies for plants operating Tricon systems beyond the original OEM support window.

Quality Assurance & Global Logistics

Every TRICONEX 7400210-010 unit supplied by siemensplc.com is sourced from verified channels and subjected to a structured pre-shipment inspection protocol. Authentication begins with serial number traceability against manufacturer records, followed by physical label verification — including holographic security features where present — and PCB-level inspection for signs of remarking, re-balling, or counterfeit component substitution. Units that do not pass this inspection are rejected and not offered for sale.

Functional testing is available upon request prior to shipment. Test procedures replicate the module’s operational environment: 24 VDC is applied to each of the 32 input channels in sequence, and the corresponding backplane output state is verified against the expected logic level. Open-wire detection circuitry is also exercised during this test. A test report documenting channel-by-channel pass/fail results can be provided with the shipment.

All units are packaged in ESD-safe anti-static bags, placed in foam-lined cartons, and sealed with tamper-evident tape. Original manufacturer documentation — including the datasheet and Certificate of Conformance (CoC) — is included where available. A 12-month functional warranty covers all units from the date of shipment. Warranty claims are processed with a target replacement or repair turnaround of 5 business days.

Logistics operations are based in Xiamen, China. In-stock units are dispatched within 1–3 business days of order confirmation. International shipments are handled via DHL Express, FedEx International Priority, and UPS Worldwide Expedited, with full tracking provided from dispatch to delivery. Export documentation — including commercial invoice, packing list, and certificate of origin — is prepared in compliance with destination country import requirements. Customers in the EU, Middle East, Southeast Asia, and the Americas are served from the same Xiamen inventory hub, with typical transit times of 3–7 business days depending on destination.
