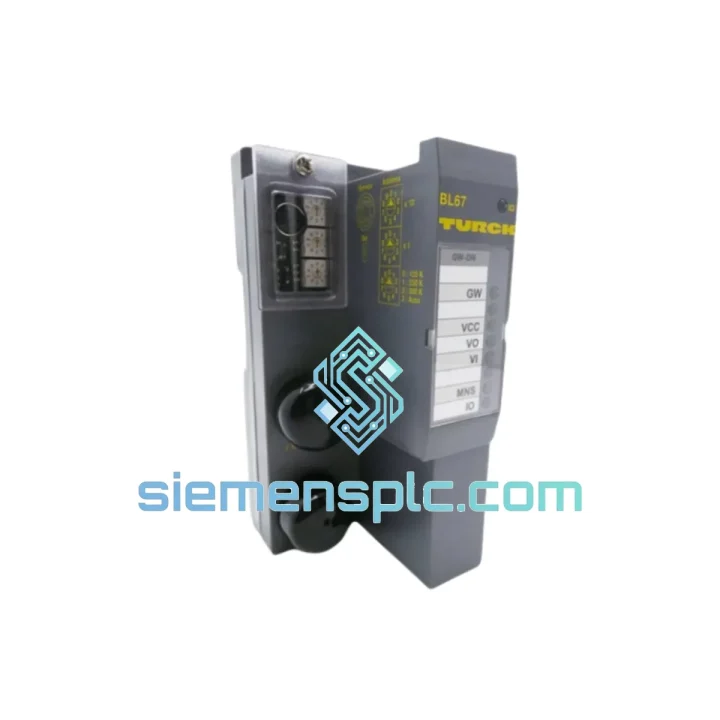

TURCK BL67-GW-DN Fieldbus Gateway Module – BL67 Series

TURCK BL67-GW-DN: Single-Node DeviceNet Head Station for Scalable Distributed I/O Architecture

The TURCK BL67-GW-DN is the network interface head station of the BL67 modular I/O platform, designed to bridge a DeviceNet CAN-layer fieldbus segment with the BL67 proprietary backplane bus. In a distributed control topology, this module occupies a single MAC ID on the DeviceNet trunk and presents the entire downstream I/O station — regardless of the number of attached modules — as one ODVA-compliant slave device to the master scanner. All digital, analog, counter, and serial I/O modules assembled on the BL67 DIN rail are addressed transparently through the gateway’s I/O assembly objects, with no individual node address required per module. This single-node architecture is a deliberate design choice that conserves the 63-node address space on DeviceNet segments already populated with variable-frequency drives, valve manifolds, and smart sensors.

The gateway’s internal arbitration logic maps the BL67 backplane process image — up to 64 bytes input and 64 bytes output — directly into DeviceNet I/O assembly instances: Instance 100 for input data and Instance 150 for output data in polled mode. Change-of-state (COS) and cyclic messaging modes are also supported, giving the master scanner the flexibility to select the most bandwidth-efficient communication model for the application. The backplane scan cycle is synchronized to the DeviceNet polled I/O request interval, ensuring that the process image delivered to the PLC reflects the most recent backplane read — no stale data artifacts from asynchronous polling. This deterministic behavior is a hard requirement in automotive body-in-white assembly lines, high-speed packaging cells, and press transfer systems where I/O response must align with a fixed PLC scan window.

Beyond process I/O, the BL67-GW-DN exposes module-level diagnostic data through DeviceNet explicit messaging. Wire-break detection on analog inputs, short-circuit detection on digital outputs, and supply voltage monitoring for each downstream module are accessible via the gateway’s diagnostic assembly object. This allows the PLC program to implement structured fault handling with module identity and fault type — reducing mean time to repair (MTTR) compared to systems that surface only a generic station fault bit.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The BL67-GW-DN implements a dual-bus architecture with two physically and electrically isolated communication domains: the DeviceNet CAN physical layer on the fieldbus side, and the BL67 proprietary backplane bus on the I/O station side. The gateway’s embedded microcontroller manages protocol translation between these domains without introducing variable latency — a critical distinction from gateway designs that use buffered, interrupt-driven translation, which can produce jitter in the process image delivery timing.

CAN Transceiver and EMC Protection: The DeviceNet interface circuit incorporates common-mode chokes on both CAN_H and CAN_L signal lines, combined with transient voltage suppression (TVS) diodes rated for fast transient events. This passive protection network provides immunity to electrical fast transients at 2 kV per IEC 61000-4-4 and surge events per IEC 61000-4-5 — both common in industrial environments with inductive load switching on shared power distribution. The backplane connector uses a low-impedance ground path bonded to the DIN rail, reducing ground loop susceptibility between cabinet sections operating at different ground potentials.

Backplane Bus Arbitration and Token Passing: The BL67 internal bus uses a deterministic token-passing arbitration scheme with the gateway module acting as bus master. Each downstream I/O module is polled in a fixed sequence, and the gateway maintains an internal I/O map that reflects the current physical configuration of the station. Module insertion and removal are detected via a backplane presence signal on each slot. When a module is removed, the gateway marks the corresponding I/O bytes as invalid in the process image and sets the associated diagnostic bit — the PLC program receives a structured fault indication rather than a silent data freeze. When a replacement module of the same type is inserted, the gateway re-integrates it into the polling sequence without requiring a station restart, supporting hot-swap maintenance on continuously running lines.

Process Image Coherency: The gateway completes a full backplane scan within the DeviceNet Expected Packet Rate (EPR) window configured at the master scanner. This timing relationship guarantees that the input assembly data delivered to the PLC in each polled I/O exchange represents a coherent snapshot of all downstream module states — not a partial update from an asynchronous backplane cycle. In high-speed applications where the PLC scan period is 5–10 ms, this coherency property prevents false logic conditions caused by reading input data that spans two different backplane scan cycles.

EDS-Based Plug-and-Play Configuration: The module ships with an ODVA-standard Electronic Data Sheet (EDS) file that defines all supported I/O assembly instances, explicit message parameters, and configurable attributes. This file is directly importable into RSNetWorx for DeviceNet, Sycon.net, and any other ODVA-certified configuration tool, eliminating manual parameter entry during commissioning and reducing the probability of configuration errors on multi-node segments.

System Integration Benefits

• Single MAC ID for the Entire I/O Station: All BL67 modules assembled on the rail — regardless of count or type — consume exactly one DeviceNet node address. On legacy segments already near the 63-node limit, this is a practical constraint that the BL67-GW-DN resolves without requiring segment restructuring or additional repeaters.
• Deterministic EPR-Aligned Data Delivery: The backplane scan completes within the master scanner’s configured EPR window, so the PLC always reads a current, coherent process image. There are no stale-data artifacts from asynchronous backplane polling — a measurable reliability improvement in motion-synchronized I/O applications.
• Heterogeneous I/O Module Support: The BL67 platform supports digital I/O (8/16-channel), analog I/O (0–10 V, 4–20 mA, thermocouple, RTD), incremental encoder/counter, and RS-232/RS-485 serial modules — all addressable through the same BL67-GW-DN gateway without changing the DeviceNet node configuration.
• Structured Module-Level Diagnostics: Wire-break on analog inputs, output short-circuit, and supply undervoltage are reported per module via explicit messaging. The PLC program can generate alarm messages with module slot number and fault type, reducing MTTR compared to systems that report only a station-level fault bit.
• Broad Master Scanner Interoperability: ODVA certification ensures verified interoperability with Rockwell Automation 1756-DNB and 1769-SDN scanners, Omron DRM21, Bosch Rexroth, and any other certified DeviceNet master. No vendor-specific extensions or custom EDS modifications are required.
• IP67 Field Distribution Capability: When paired with BL67 IP67-rated field modules, the station can be mounted directly on the machine frame, eliminating home-run wiring back to a central cabinet. This reduces cable cost, installation labor, and the number of potential wiring fault points in large machine footprints.
• Tool-Free MAC ID and Baud Rate Setting: Both parameters are set via physical DIP switches on the module face, removing the dependency on a laptop or configuration software during initial installation. This accelerates commissioning in environments where software tools are not immediately available on the factory floor.
• Hot-Swap I/O Module Replacement: The backplane arbitration logic supports module replacement under power. A failed I/O module can be swapped without shutting down the DeviceNet segment or interrupting the PLC scan — a direct contribution to overall equipment effectiveness (OEE) on continuous production lines where unplanned downtime carries measurable cost.
• Wide Ambient Temperature Tolerance: The -25 °C to +60 °C operating range accommodates outdoor enclosure installations in cold climates and high-ambient machine enclosures in foundry, glass, and rubber manufacturing environments without additional thermal management hardware.
• Reduced Panel Wiring Complexity: Centralizing I/O termination at the BL67 station reduces the number of individual terminal blocks, cable ducts, and wire labels in the control panel, directly lowering panel build labor hours and the probability of wiring errors during commissioning and subsequent modifications.

Quality Assurance & Global Logistics

Every TURCK BL67-GW-DN unit supplied through siemensplc.com is sourced from verified supply channels and processed through a structured incoming inspection protocol before dispatch from our Xiamen, China facility.

Incoming Inspection: Each unit undergoes visual authentication of label format, date code, and housing markings against documented genuine TURCK production references. Connector pin condition, backplane bus contacts, and DIP switch mechanical operation are verified. Where test fixtures are available, power-on functional verification confirms correct enumeration on a live DeviceNet segment at all three supported baud rates.

Storage and Packaging: Units are stored in climate-controlled conditions at 15–25 °C with humidity monitoring. Each unit is packed in an anti-static bag with a humidity indicator card. Outer cartons are double-walled corrugated with foam insert protection, labeled with part number, quantity, inspection date, and batch reference for full traceability from our warehouse to the end destination.

Export Documentation: All international shipments include a commercial invoice, packing list, and HS code classification (HS: 8537.10) prepared in compliance with the destination country’s import requirements. Certificate of origin is available on request for preferential tariff applications.

Global Shipping from Xiamen: Our Xiamen location provides direct access to Xiamen Gaoqi International Airport (XMN) and Xiamen Port, supporting both express air freight and sea freight consolidation. Indicative air freight transit times: 3–5 business days to Europe, 4–6 business days to North America, 2–3 business days to Southeast Asia. Same-day dispatch is available for in-stock units ordered before 14:00 CST.

12-Month Warranty: All units carry a 12-month warranty from the date of shipment. Units that fail to perform to TURCK factory specifications within the warranty period are eligible for replacement or full refund after fault verification. Warranty claims are processed within 5 business days of receipt of the returned unit.
