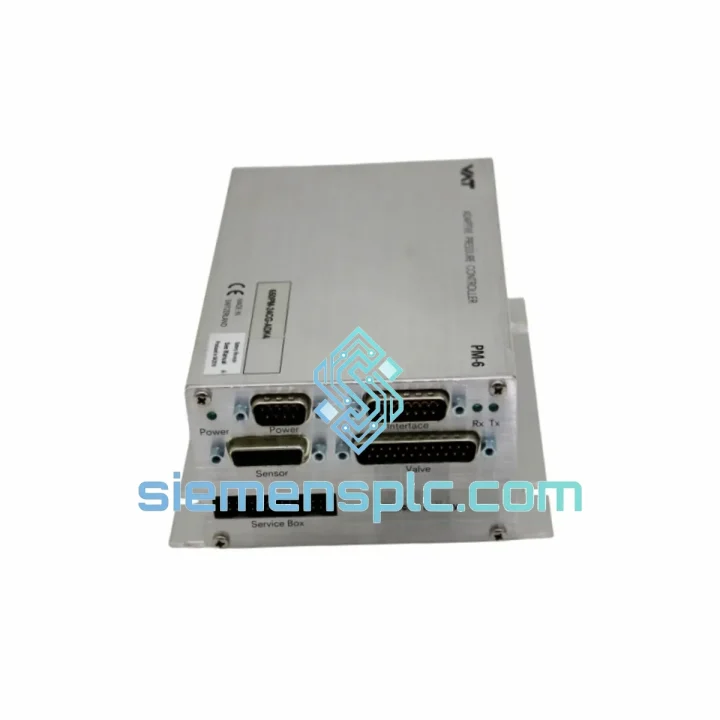

VAT PM-6 650PM-24CG-ADK4 T208 722B11TCD2FA RAS16 Vacuum Pressure Controller

VAT PM-6 650PM-24CG-ADK4 T208 722B11TCD2FA RAS16 — Stop the Clock on Your Downtime

Every hour a vacuum process chamber sits idle costs real money. In CVD, PVD, and etch environments, a failed pressure controller does not just halt one tool — it can cascade into a full bay shutdown, scrapped wafer lots, and missed delivery commitments. The VAT PM-6 series adaptive pressure controller is the component that keeps your throttle valve in closed-loop control. When it fails, you need an exact replacement on the bench, not a four-week lead time from the OEM.

We stock the VAT PM-6 650PM-24CG-ADK4 T208 722B11TCD2FA RAS16 in Xiamen, China, and ship globally via DHL Express and FedEx International Priority. Most destinations in Asia, Europe, and North America receive parts within 3–5 business days from order confirmation. No waiting for factory allocation. No minimum order quantity. One unit ships the same day if stock is confirmed before 14:00 CST.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Common Failure Signatures on the PM-6 650PM-24CG-ADK4

Before condemning the controller, isolate the fault. The PM-6 integrates the actuator, control electronics, and serial interface into one assembly. A fault in any sub-system will manifest differently:

• Pressure setpoint not reached / valve hunting: Most frequently caused by a degraded ADK4 stepper encoder or worn bearing preload. The adaptive PID will attempt to compensate, but you will see oscillation amplitude increasing over time. Check the RAS16 diagnostic register — error code E04 (position feedback fault) confirms actuator failure.
• No serial communication (RAS16 offline): Verify baud rate match between host controller and PM-6 (default 9600 baud, 8N1). A common field error is a reversed RS-485 A/B polarity on the terminal block after a cable replacement. Swap A and B before replacing the unit.
• Valve fully open or fully closed at power-up: The PM-6 performs a self-calibration stroke on initialization. If the valve does not complete the full open-close sweep within 15 seconds, the controller flags a homing fault. This is often caused by mechanical obstruction (process deposits on the disc edge) rather than electronics failure — inspect the valve body before ordering a replacement controller.
• 24 VDC supply present but controller unresponsive: Measure supply voltage at the controller connector under load. The ADK4 stepper draws up to 2.5 A peak during positioning. Undersized cable runs or a marginal 24 V supply will cause brownout resets. Minimum supply: 22.8 VDC at the connector under full load.
• T208 thermal fault alarm: The T208 designation includes an internal temperature sensor. If the process chamber temperature exceeds the rated envelope, the controller will assert a thermal fault and lock the valve in the last safe position. Verify chamber bake-out temperature profile against the T208 specification before assuming controller failure.

Replacement Procedure — Key Steps

1. Vent the process chamber to atmosphere and isolate the upstream gate valve. Do not attempt hot-swap on a live vacuum system.
2. Record the current PID parameters from the host controller or SCADA before disconnecting the old unit. The PM-6 stores tuning data internally, but the host recipe file is your backup.
3. Disconnect the RAS16 serial cable and 24 VDC power connector. Label both before removal.
4. Remove the valve from the foreline flange. Note the disc orientation mark — the PM-6 pendulum disc has a preferred flow direction stamped on the body.
5. Install the replacement unit. Torque flange bolts to the VAT-specified value (typically 8–10 N·m for KF/ISO-K flanges). Do not over-torque — the anodized aluminum flange is not forgiving.
6. Reconnect power and serial. Apply 24 VDC and allow the controller to complete its initialization stroke before commanding any setpoint.
7. Run the adaptive PID auto-tune routine from the host controller before returning the chamber to process. A fresh unit will not have the tuning history of the removed controller.
8. Verify pressure setpoint tracking at three points across the operating range before releasing the tool to production.

Reliability in Harsh Conditions

The VAT PM-6 platform is not designed for benign environments. Semiconductor fabs and industrial coating lines impose conditions that eliminate lesser components within months. The 650PM-24CG-ADK4 T208 722B11TCD2FA RAS16 configuration addresses these stresses at the design level:

• Vibration resistance: The ADK4 stepper actuator uses a preloaded ball-screw mechanism that maintains positional accuracy under continuous vibration loads typical of turbomolecular pump operation (up to 50 Hz, 2 g). No backlash accumulation over the service life.
• Thermal cycling: The T208 thermal rating covers repeated bake-out cycles. Internal electronics are conformal-coated and mounted on a thermally decoupled sub-assembly, preventing solder joint fatigue from differential expansion.
• Corrosive process gas exposure: The anodized aluminum body and 316L stainless steel internals resist attack from HF, Cl₂, NF₃, and O₃ cleaning chemistries. Elastomer seal compounds are selected for compatibility with halogen-based process gases.
• Humidity and condensation: The sealed electronics enclosure meets IP54 ingress protection. In humid fab environments or during facility HVAC failures, the controller electronics remain protected from condensation-induced short circuits.
• EMC immunity: The RAS16 serial interface includes opto-isolation on the RS-485 transceiver, preventing ground loop currents from corrupting position commands in electrically noisy fab environments with multiple RF generators operating simultaneously.
• Mechanical shock: VAT’s internal shock testing covers 15 g / 11 ms half-sine pulses — sufficient for standard air freight handling without special packaging requirements.

Global Express Logistics

Our warehouse is located in Xiamen, Fujian Province, China — one of the most logistics-efficient export hubs in Southeast China, with direct access to Xiamen Gaoqi International Airport and Xiamen Port. This geographic position translates directly into shorter transit times for customers across Asia-Pacific, Europe, and the Americas.

• Order cutoff: Orders confirmed with payment before 14:00 CST ship same business day.
• Carrier options: DHL Express Worldwide, FedEx International Priority, UPS Express Saver — all with door-to-door tracking and shipment insurance.
• Typical transit times: Southeast Asia 1–2 days | Japan / Korea 2–3 days | Europe 3–5 days | North America 4–6 days | Middle East / India 3–5 days.
• Export documentation: Commercial invoice, packing list, and HS 8481.20 export declaration prepared and filed for every shipment. No delays at customs due to incomplete paperwork.
• Dangerous goods compliance: All shipments comply with IATA regulations. No restricted materials in this product category.
• Tracking: AWB number provided within 2 hours of dispatch. Real-time tracking link sent via email and WhatsApp.
• Insurance: Full declared-value cargo insurance included on all express shipments. Claims handled directly — no third-party broker delays.
