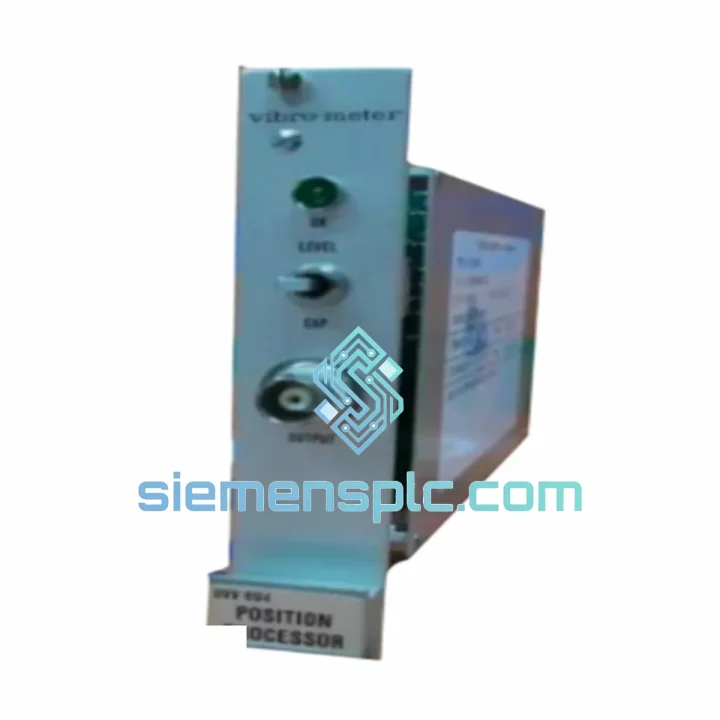

VIBRO METER UVV694 204-694-000-023 Vibration Conditioner

UVV694 204-694-000-023 — Machinery Goes Dark Without It. We Ship Yours in 24 Hours.

When the UVV694 204-694-000-023 drops out of your protection rack, your rotating equipment is running without a safety net. No vibration trend. No trip threshold. No early warning before a bearing wipes out or a shaft goes into resonance. The DCS may still show a healthy green — but that signal is gone, and you know it. Every hour you wait is an hour of unprotected runtime on a machine that could cost you six figures to repair and weeks to bring back online.

We carry the VIBRO METER UVV694 204-694-000-023 in bonded stock at our Xiamen facility. Not on order. Not inbound next week. On the shelf, tested, and ready to pack the moment your PO lands. We have shipped this exact part number to petrochemical plants, power stations, and offshore platforms across four continents. We know what a shutdown looks like from the customer side, and we built our logistics around eliminating the wait.

⚡ URGENT REQUIREMENT? Contact us now:
Email: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Field Failure Patterns — What Actually Goes Wrong

The UVV694 204-694-000-023 is a mature, reliable platform, but after years of continuous service in harsh industrial environments, specific failure modes emerge. Here is what to look for before you pull the module:

• Output locked at 4 mA (zero vibration reading): The analog output driver or internal ADC has failed. The module may power up normally and the status LED may appear healthy — but the loop is dead. The DCS interprets this as zero vibration, which is the most dangerous failure state because no alarm fires. Do not waste time on wiring checks. Swap the module.
• Output locked at 20 mA (full-scale reading, no actual vibration): Internal reference failure or output stage saturation. The DCS will likely generate a high-vibration alarm, which is at least visible — but the reading is false. Same resolution: replace the UVV694.
• Intermittent signal loss correlated with panel temperature: Thermal cycling over years of service degrades solder joints on the signal conditioning PCB. If readings disappear during hot weather or after the panel has been running for several hours, the module is the suspect — not the transducer or cable. A cold-spray test on the module housing will often reproduce the fault.
• DCS fault: “Transducer open circuit” with transducer confirmed good: The UVV694’s internal IEPE excitation circuit has failed. The module is no longer supplying the constant-current excitation that the accelerometer needs to operate. This is not field-repairable. The transducer is fine; the module is not.
• Noise spikes on the analog output synchronized with nearby VFD switching: The module’s internal EMC filter capacitors have degraded. Re-grounding the cable shield may reduce the amplitude but will not eliminate the root cause. Replace the module and verify the new unit’s shield termination at both ends.

Replacement Procedure — Step by Step

1. Document before you touch anything: Photograph the terminal wiring and record every DIP switch and jumper position on the existing module. The UVV694 204-694-000-023 uses hardware switches to configure output range (4–20 mA vs. 0–10 V), measurement parameter (velocity vs. displacement), and filter bandwidth. These settings are not stored anywhere else. If you pull the module without recording them, you are guessing on reinstallation.
2. Isolate the 24 VDC supply: De-energize the supply rail feeding the module. Verify with a multimeter at the terminal block — do not rely on the breaker label. Some installations share a supply rail across multiple modules; confirm you are not dropping protection on adjacent channels.
3. Label every wire before removal: The UVV694 uses a screw-terminal interface. Mark each conductor with its terminal number before disconnecting. Pay particular attention to transducer input polarity and whether the analog output is wired as a current source or current sink — reversing either will give you a live but incorrect output after reinstallation.
4. Configure the replacement unit before installation: Set all DIP switches and jumpers on the new UVV694 204-694-000-023 to match the documented positions from step 1. Do this on the bench, before the module goes into the rack. A misconfigured module installed under time pressure is how you end up with a live output that reads 30% low and nobody notices for three months.
5. Reinstall and restore power: Reconnect all terminals, restore 24 VDC, and allow 30 seconds for the module to initialize. Check the status LED — steady green indicates normal operation on standard UVV694 variants.
6. Verify the output loop: Apply a known vibration reference or use the module’s built-in test function to confirm the 4–20 mA output tracks correctly against the expected engineering unit range. Cross-check the DCS display value against your reference before signing off. Do not return the machine to service on a visual LED check alone.

Part Number Suffix Warning: The 204-694-000-023 suffix designates a specific output and configuration variant. The 204-694-000-024 and 204-694-000-011 are different configurations. Installing the wrong suffix gives you a live, non-alarming output that reads incorrectly — the worst possible failure mode in a protection system. Confirm your existing P/N before ordering.

Reliability in Harsh Conditions

A vibration measurement module that cannot survive the environment it is measuring is useless. VIBRO METER designed the UVV694 platform for the actual conditions found in turbine halls, compressor buildings, and offshore module decks — not for a climate-controlled instrument room.

The operating temperature range of –20 °C to +70 °C covers outdoor installations in northern European and Canadian winters as well as enclosed panels in tropical process plants running at full load. Internal component selection prioritizes long-term thermal stability over cost reduction — VIBRO METER modules routinely remain in continuous API 670-compliant service for 10 to 15 years before requiring replacement.

EMC performance is validated to IEC 61000, with internal filtering designed to reject common-mode noise from transducer cable runs exceeding 50 meters through cable trays shared with power conductors. In practice, this means the UVV694 delivers clean, stable analog outputs even in switchgear rooms where VFDs and motor starters are generating conducted interference on every rail.

Mechanical robustness is inherent in the design philosophy: a module that measures vibration must itself be immune to it. The UVV694 is qualified to the mechanical shock and vibration environments defined by IEC 60068, making it suitable for installation in panels mounted directly on or adjacent to the machinery it monitors. The DIN-rail screw-terminal interface is rated for repeated field reconnection without contact degradation — relevant in installations where the module is accessed during every annual shutdown.

Humidity resistance covers the condensation events that occur when a panel is opened on a cold morning in a humid environment. The conformal coating on the signal conditioning PCB prevents the surface leakage currents that cause intermittent faults in unprotected electronics under these conditions.

Global Express Logistics

Our Xiamen warehouse operates on a 24-hour dispatch cycle, seven days a week for emergency orders. Here is the exact sequence from your PO to your door:

• Hour 0–2: PO received, unit pulled from bonded stock, P/N 204-694-000-023 verified against your order, packaging and physical condition inspected.
• Hour 2–8: Commercial invoice, packing list, and certificate of conformance prepared. Export customs declaration filed. HS code classification confirmed for your destination country.
• Hour 8–24: Shipment handed to DHL Express or FedEx International Priority. Tracking number issued to your designated contact. Courier collection confirmed.
• Asia-Pacific transit: 1–3 business days to Singapore, South Korea, Japan, Taiwan, and Australia.
• Europe transit: 2–4 business days to Germany, Netherlands, UK, France, Norway, and Poland.
• Americas transit: 2–4 business days to the United States, Canada, and Brazil.
• Middle East and India transit: 2–3 business days to UAE, Saudi Arabia, Qatar, and India.

For shutdown and turnaround situations where the machine cannot wait for standard processing, contact us on WhatsApp before placing the order. We will confirm real-time stock availability, provide a firm ETA with courier pickup time, and flag the shipment for priority handling. Same-day courier collection is available for orders confirmed before 14:00 CST.

All international shipments include complete export documentation: commercial invoice with HS code, packing list with net and gross weight, and country of origin declaration (Switzerland). Import duty classification support is available on request for customers in regulated markets including the EU, India, and Brazil.
