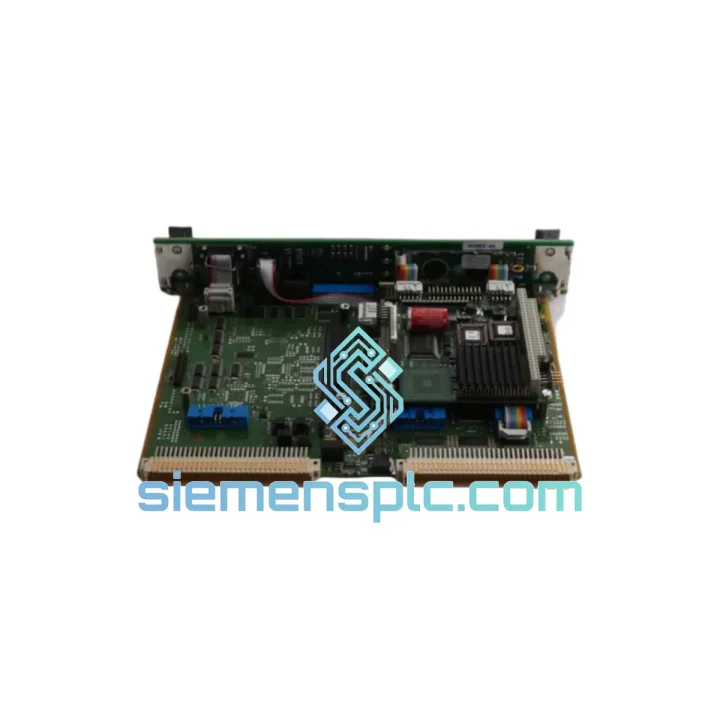

VIBRO-METER VM600-CPU-M-200-595-074-122 CPU Module

VM600-CPU-M-200-595-074-122 — When Your Machinery Protection Rack Goes Dark, Every Minute Costs You

A failed CPU M card in your VM600 rack doesn’t just trigger an alarm — it takes your entire vibration monitoring and protection system offline. No trip logic. No bearing data. No SCADA feed. In a gas turbine or compressor train environment, that’s an unacceptable exposure. We stock the VIBRO-METER VM600-CPU-M-200-595-074-122 in Xiamen and ship globally via DHL/FedEx express. Your rack can be back online before your maintenance window closes.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Common failure signatures for the VM600 CPU M:

• All channels show “COMM FAIL” or freeze at last value — CPU M has lost backplane communication. Power-cycle the rack first; if the fault persists after 60 seconds, the CPU M itself is the suspect, not the I/O cards.
• Ethernet port unresponsive / VibroSight® cannot connect — Check the RJ45 LEDs on the CPU M faceplate. No link light = NIC failure or firmware corruption. A firmware re-flash via serial port is worth attempting before condemning the board.
• Rack powers up but CPU M STATUS LED stays red or amber — Indicates failed self-test. Common causes: corrupted configuration EEPROM, failed RAM, or backplane voltage out of spec. Measure backplane ±5 V and ±15 V rails before swapping the CPU.
• Intermittent trip outputs with no process change — Often caused by CPU M clock drift or watchdog timeout under high thermal load. Check rack ventilation and ambient temperature before assuming CPU failure.

Step-by-step replacement procedure:

1. Export full configuration backup via VibroSight® before touching anything. File → Export → System Configuration. If the CPU M is already dead, retrieve the last known-good backup from your DCS historian or engineering workstation.
2. Notify control room — inhibit all VM600 trip outputs at the DCS level to prevent spurious shutdowns during the swap. Document the inhibit in your PTW.
3. Power down the rack — VM600 CPU M is not hot-swap capable in single-CPU configurations. Isolate the RPS600-R supply before extraction.
4. Note the firmware label on the old CPU M faceplate (e.g., FW Rev 2.x.x). The replacement unit must match or exceed this revision. Mismatched firmware between CPU M and I/O cards (AMC8, MPC4, RLC16) causes channel initialization errors on startup.
5. Seat the new CPU M firmly — the Eurocard connector requires full insertion until the front-panel locking levers click. A partially seated card causes intermittent backplane faults that are extremely difficult to diagnose.
6. Power up and verify — STATUS LED should cycle through amber (self-test) to green (normal) within 90 seconds. If it stays amber beyond 2 minutes, the configuration upload failed.
7. Restore configuration via VibroSight® → Import → System Configuration. Verify all channel engineering units, alarm setpoints, and trip delays match the pre-swap values before releasing inhibits.
8. Perform a channel-by-channel functional check — apply a known reference signal to at least one channel per I/O card and confirm the CPU M is processing and reporting correctly before returning the system to service.

Configuration notes specific to this part number (200-595-074-122): The CPU M variant carries expanded onboard RAM versus the earlier CPU A. If you are replacing a CPU A with this unit, re-validate your VibroSight® software version — CPU M requires VibroSight® v3.0 or later. Older software versions will connect but will not expose all CPU M diagnostic registers.

Reliability in Harsh Conditions

The VM600 platform was designed from the ground up for continuous-duty industrial deployment — not office-grade electronics repackaged for a panel. The CPU M card reflects this philosophy at the component level.

The PCB uses conformal coating across all signal traces, providing resistance to condensation, salt fog, and airborne process contaminants common in coastal refineries and offshore platforms. Vibration tolerance is validated to IEC 60068-2-6 (sinusoidal) and IEC 60068-2-64 (random), covering the frequency ranges generated by rotating machinery foundations — the exact environment where this card operates. Thermal cycling endurance testing covers the full 0°C to +60°C operating range with rapid transitions, simulating the thermal shock experienced during emergency shutdowns and restarts.

The Eurocard connector system uses gold-plated contacts rated for a minimum of 500 insertion cycles, which matters in maintenance-intensive environments where cards are pulled for inspection during turnarounds. Onboard voltage regulation is independent per functional block, so a localized power anomaly on one subsystem does not cascade into a full CPU failure — a design choice that significantly improves mean time between failures in real-world deployments.

Units we ship have been stored in climate-controlled conditions with ESD protection from the point of receipt. We do not warehouse cards in uncontrolled environments. Every unit is inspected for connector pin integrity, PCB surface condition, and label legibility before it leaves Xiamen.

Global Express Logistics

Our warehouse is located in Xiamen, Fujian — one of China’s primary export hubs with direct DHL and FedEx gateway access. For urgent replacement orders, this geography matters: Xiamen to Singapore is next-day. Xiamen to Dubai is 2 days. Xiamen to Rotterdam or Houston is 3–4 business days door-to-door under normal customs conditions.

Standard export process for VM600-CPU-M-200-595-074-122:

• Order confirmed → same-day picking and ESD packaging
• Commercial invoice, packing list, and HS code declaration prepared within 2 hours
• DHL Express or FedEx International Priority — tracking number issued before 18:00 CST on day of shipment
• For destinations requiring import permits or end-user declarations (e.g., certain Middle East or South Asian markets), we advise on documentation requirements upfront — no surprises at customs
• Dangerous goods: this module contains no lithium batteries or hazardous materials — no special air freight restrictions apply
• Insurance available on request for high-value single-unit shipments

If your plant is facing an active shutdown and you need the fastest possible delivery, contact us directly on WhatsApp. We can arrange same-day dispatch for orders confirmed before 15:00 CST.
