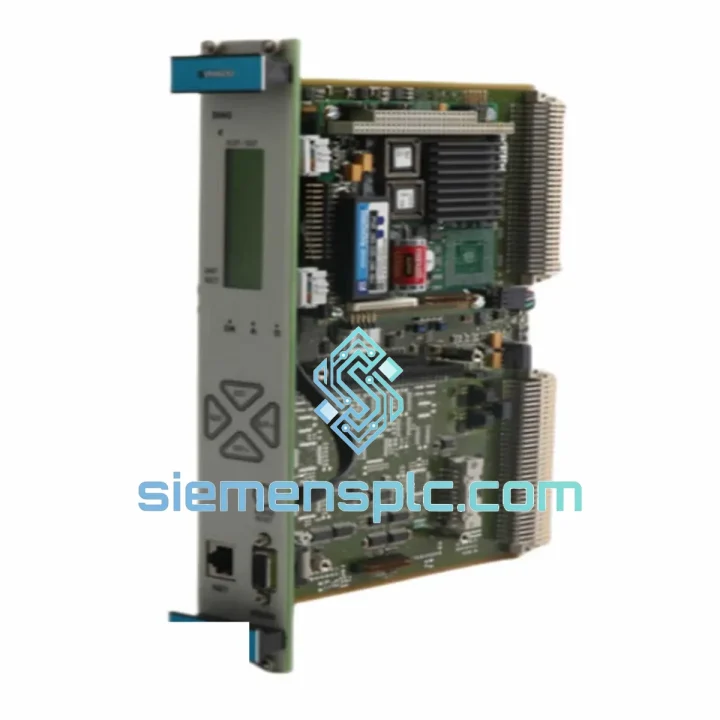

VIBRO METER VM600 CPU M 200-595-041-113 CPU Card

VM600 CPU M 200-595-041-113 Down? Every Minute of Turbine Downtime Costs You — We Ship Today

Your VM600 rack just threw a CPU fault. The protection system is offline. The turbine is tripped. Operations are breathing down your neck. You don’t need a sales pitch — you need the card on your bench by Thursday. We stock the VIBRO METER VM600 CPU M, P/N 200-595-041-113, bench-tested and ready to clear customs from Xiamen within 24 hours of order confirmation. DHL Express to most destinations in 3–5 business days.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Common failure signatures that point to a dead CPU M:

• All channel cards show “No Communication” or “Bus Timeout” in the VM600 configuration software — the CPU M has lost rack bus arbitration.
• Rack front panel LED: CPU STATUS red solid or rapid blink after power cycle — POST failure, typically SRAM or flash corruption.
• Modbus/Profibus host reports device offline while rack power supply LEDs are green — CPU M firmware crash, not a power issue.
• Intermittent spurious trips with no process exceedance — CPU M watchdog resets causing momentary relay de-energization.
• VM600 configuration software cannot establish connection even with correct COM port settings — CPU M serial interface IC failure.

Before you pull the card — rule these out first:

• Verify backplane connector pins P1/P2 are clean and seated. A bent pin on the VME bus will mimic CPU M failure.
• Check RPS6 power supply output rails with a DMM: ±15 V and +5 V must be within ±2 %. A sagging +5 V rail will cause CPU M POST failure without triggering the PSU fault LED.
• Swap the CPU M into slot 1 of a known-good rack if available — isolates whether the fault is card or chassis.

Replacement procedure — field-proven steps:

1. Export current rack configuration via VM600 Config software before touching anything. Save to USB. This is non-negotiable — the CPU M holds the active configuration in flash.
2. Note firmware version displayed in the software (e.g., v3.2.1). Request a replacement card with matching or higher firmware. Downgrading firmware on a running rack is not supported without a full recommission.
3. Check DIP switch SW1 on the CPU M PCB. On most VM600 racks, SW1 positions 1–4 set the rack node address for Modbus/Profibus. Photograph the original card’s switch positions before removal.
4. Power down the rack at the RPS6 mains switch. The CPU M is not hot-swappable in single-CPU configurations — attempting live swap risks corrupting the backplane bus and damaging I/O cards.
5. Seat the replacement card firmly until both front-panel ejector levers click. A partially seated card will pass visual inspection but fail POST due to intermittent VME bus contact.
6. Power up and observe POST: CPU STATUS LED should cycle green/amber for 15–30 seconds during initialization, then settle green. If it goes red, check DIP switch address conflicts with other cards.
7. Reload configuration from the saved backup via VM600 Config software. Verify all channel cards re-enumerate correctly before re-enabling protection outputs.
8. Perform a relay output test on all trip channels before returning the machine to service. Do not skip this step — a configuration reload does not guarantee relay hardware integrity.

Firmware matching note: VM600 CPU M firmware is not field-upgradeable via the front panel. If your replacement card arrives with a different firmware version than your original, contact Meggitt/Hottinger Brüel & Kjær (HBK) support or request a pre-flashed unit from us at time of order.

Reliability in Harsh Conditions

The VM600 platform was engineered for continuous unattended operation in the most demanding rotating equipment environments on the planet — offshore gas platforms in the North Sea, petrochemical complexes in the Middle East, and power generation facilities running 24/7/365. The CPU M reflects that design philosophy at the component level.

The PCB uses conformal coating on all signal traces, providing resistance to condensation, salt fog, and airborne hydrocarbon contamination — conditions that kill standard industrial electronics within months. The VME-format card cage provides mechanical rigidity that absorbs the broadband vibration spectrum generated by large turbomachinery foundations, typically 2–200 Hz at amplitudes up to 2 g RMS. Connector retention force on the DIN 41612 backplane connectors is specified to maintain contact integrity through thousands of thermal cycles.

Operating temperature range of 0–60 °C covers the full envelope of enclosed machinery house environments, including summer conditions in tropical LNG facilities where ambient temperatures inside instrument enclosures routinely exceed 45 °C. The CPU M’s thermal design relies on convective airflow within the VM600 rack — ensure rack fan modules are operational and air filters are clean. A blocked filter is the single most common cause of premature CPU M failure in tropical installations.

All units we ship have been stored in climate-controlled ESD-safe environments. Each card is individually bagged in anti-static packaging with desiccant and humidity indicator cards. Shelf life from our warehouse to your site does not degrade the unit’s operational readiness.

Global Express Logistics

Our dispatch hub is in Xiamen, Fujian, China — one of China’s primary export ports with direct DHL and FedEx gateway access. Here is exactly what happens after you confirm your purchase order:

• Day 0 (PO Confirmed): Card pulled from ESD-safe storage, final functional bench test performed, test report generated. Export documentation prepared: commercial invoice, packing list, Certificate of Origin (COO), and HS code declaration (HS 8537.10 or 8543.70 depending on destination customs requirements).
• Day 1 (Shipment): Packed in double-wall carton with foam inserts and anti-static inner packaging. Handed to DHL Express or FedEx International Priority — your choice. Tracking number sent to your email within 2 hours of pickup scan.
• Day 2–4 (In Transit): DHL Express typically clears Xiamen customs within 12 hours of pickup. Most destinations in Europe, Middle East, and Southeast Asia receive delivery on Day 3–4. North America Day 4–5.
• Customs Clearance: We prepare accurate, compliant export documentation to minimize customs hold risk. For destinations with import duty concerns (EU, India, Brazil), we can provide HS code pre-classification support and adjust declared values per legal requirements.
• Delivery Confirmation: POD (proof of delivery) shared automatically via DHL/FedEx tracking portal. We follow up proactively if any customs exception occurs.

For genuinely critical shutdowns where every hour counts, contact us on WhatsApp for same-day dispatch options — we can arrange pickup before the DHL 18:00 cutoff if your order is confirmed before 14:00 CST.
