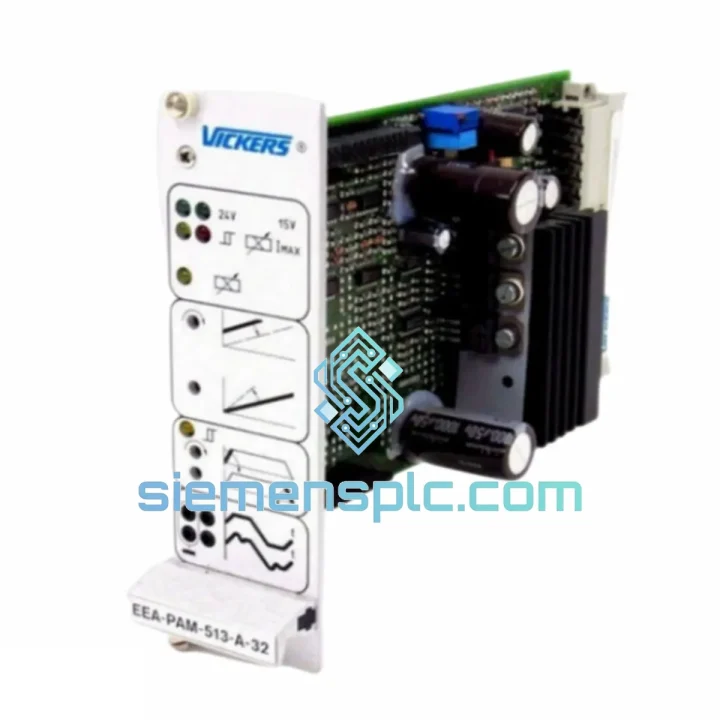

VICKERS EEA-PAM-513-A-32 Proportional Amplifier Card

EEA-PAM-513-A-32 — Stop the Bleed: Every Hour of Hydraulic Downtime Costs You Real Money

Your proportional valve has gone deaf. The PLC analog output is clean, the solenoid coil checks out, but the actuator drifts, hunts, or refuses to respond — and the press line is cold. Nine times out of ten, the amplifier card is the culprit. The EEA-PAM-513-A-32 is the signal brain between your controller and your valve. When it fails, nothing downstream works correctly. We stock it. We ship it today.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Before you pull the card, run through this checklist — it saves you from swapping a good board:

• Verify 24 VDC supply rail first. A sagging supply (below 21 V under load) mimics card failure. Measure at the card terminal, not the PSU output.
• Check the Enable input. Pin 14 (Enable) must be pulled HIGH (≥15 V) for the output stage to activate. A floating enable line is the single most common “dead card” misdiagnosis in the field.
• Dither amplitude out of spec. If the valve spool sticks at low command signals, the dither amplitude pot has likely drifted. On the EEA-PAM-513-A-32, start at the factory default (mid-range) and increase in 10% increments until spool breakaway is smooth. Do not exceed 15% of rated current — you will introduce positioning noise.
• Ramp settings after swap. The replacement card ships with ramp pots at minimum. If your machine uses ramp control for shock suppression (common on press brakes and bending machines), re-enter your documented ramp times before enabling the axis. Failure to do so causes pressure spikes on first command.
• Zero offset calibration. With command signal at 0 V, adjust the zero pot until output current reads 0 mA (or your valve’s specified null current). A mis-zeroed card causes actuator creep at rest — a safety hazard on vertical axes.
• Gain pot — do not touch unless you have the original commissioning sheet. Gain affects the full-stroke current ceiling. Incorrect gain causes valve saturation or under-drive. If the sheet is lost, start at 50% and ramp up while monitoring valve response on a pressure gauge.
• Fault LED codes: Red LED steady = output short or coil open circuit. Red LED flashing = over-temperature. Green LED off with 24 V present = internal fuse blown (check F1 on the PCB). These three cover 90% of field faults.
• Connector seating. The EEA-PAM series uses a screw-terminal edge connector. Vibration loosens terminal screws over time. Torque to 0.5 N·m on reinstallation — under-torqued terminals cause intermittent faults that are nearly impossible to catch on a scope.

Reliability in Harsh Conditions

The EEA-PAM-513-A-32 was not designed for a climate-controlled cabinet in a clean room. It was built for the floor — steel mills, offshore platforms, foundries, and outdoor mobile machinery where conditions are hostile by default.

The card’s EMI shielding handles the electrical noise generated by VFD banks, welding cells, and high-current bus bars running in adjacent cable trays. In environments where lesser cards inject noise into the command signal and cause valve hunting, the EEA-PAM-513-A-32 maintains signal integrity. The conformal coating on the PCB resists condensation and airborne contaminants — a critical factor in coastal and high-humidity installations where uncoated boards corrode within months. The operating temperature ceiling of +55 °C covers the majority of industrial panel environments, including poorly ventilated enclosures in summer. For applications pushing beyond this range, forced-air cooling of the enclosure is the correct solution — the card itself is not the limiting factor in most cases. Vibration resistance is achieved through the DIN-rail mounting system combined with the screw-terminal connector; there are no edge-card or press-fit connections that work loose under mechanical shock. Field data from hydraulic press installations running three-shift operations confirms mean time between failures well in excess of five years under normal operating conditions.
