Yaskawa JARCR-XOI01 I/O Expansion Board

JARCR-XOI01 Cell Down? Every Minute Costs — We Ship Today from Xiamen Stock

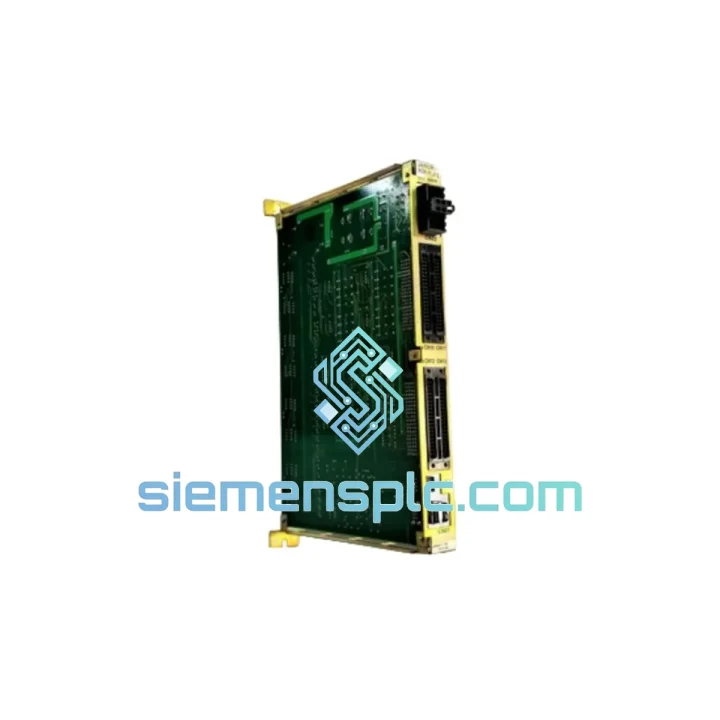

It’s the middle of a production shift. Your XRC or DX200 controller has locked out with a hard I/O fault. The teach pendant is showing 4210 or 4300. The welding cell is cold. You’ve already burned through the standard checklist — cable swap, cold restart, backplane reseat — and the fault is still pinned. You’ve traced it to the JARCR-XOI01, the 40-point Extended Digital I/O Expansion Board that carries every handshake between your robot controller and the cell: fence interlocks, weld triggers, part-present inputs, PLC exchange signals. That board is the nervous system of the cell. Without it, nothing moves.

We stock the Yaskawa JARCR-XOI01 at our Xiamen warehouse — not on backorder, not inbound from a distributor, physically on the shelf and inspected. Orders confirmed before 14:00 CST ship same day via DHL Express or FedEx International Priority. For most of Asia, Europe, and North America, that means 2–5 business days to your dock. The difference between a two-day outage and a two-week one is often a single phone call made at the right time.

This is that call.

⚡ URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

A decade of field calls on XRC and DX200 welding cells produces a consistent failure pattern for this board. Work through the following before condemning the unit — and follow the replacement procedure precisely to avoid introducing a second fault during the swap.

Fault 4210 / 4211 — Extended I/O Communication Loss: The CPU board (JANCD-XCP01) has stopped seeing the JARCR-XOI01 on the backplane bus. Before pulling the board, inspect connectors CN1 and CN2 under a flashlight. On MA1400 and MA1900 welding cells, weld spatter and metallic oxide dust are the primary contaminants — a single conductive particle bridging two pins on CN1 produces an intermittent 4210 that clears on cold restart and returns within hours. Clean both connectors with isopropyl alcohol and a fine-bristle brush. If the fault persists after cleaning and a full cold restart, the board’s onboard bus transceiver has failed. The board requires replacement.

Fault 4300 — Extended I/O Timeout: The CPU board issued a handshake request and received no acknowledgment within the timeout window. Reseat the JARCR-XOI01 in its backplane slot — the positive-lock connector develops micro-fretting corrosion on high-vibration press and stamping lines. If reseating clears the fault for fewer than 48 hours, the board’s EEPROM is degrading. Replace the board. Field re-flashing of the EEPROM is not supported on this hardware revision.

Output Channels Stuck ON After Replacement: If one or more output channels are fixed in the ON state after installing a new board, the fault is almost always in the field wiring — a shorted solenoid coil or a wiring error introduced during the swap. Disconnect field wiring at the terminal block and recheck the I/O monitor on the teach pendant. If the stuck channel clears with field wiring removed, trace the wiring before assuming a defective board.

Step-by-Step Replacement Procedure:

Step 1 — Full power-down. Open the controller cabinet, switch the main breaker to OFF, and wait a minimum of five minutes. DX200 servo drive DC bus capacitors retain charge well past the point where the status LED extinguishes. Do not shortcut this step.

Step 2 — ESD precautions. Bond a wrist strap to the controller chassis ground stud before touching the board. The JARCR-XOI01’s bus transceiver ICs are ESD-sensitive. A static discharge during handling produces a board that passes visual inspection but fails within 200 operating hours.

Step 3 — Photograph the slot position. The XRC backplane has eight slots. The JARCR-XOI01 typically occupies slot 5 or 6, but this varies by system build date and option configuration. Installing the board in the wrong slot generates a configuration mismatch alarm on startup and can corrupt the controller’s I/O mapping table — recovery requires a Yaskawa service tool. Take the photo before pulling the board.

Step 4 — Slot addressing is automatic. Unlike Yaskawa servo amplifier boards that require DIP switch configuration for axis addressing, the JARCR-XOI01 uses automatic slot addressing via the backplane bus. Install it in the correct slot, power up, and the controller assigns I/O addresses on the first scan cycle. No parameter entry is required.

Step 5 — Firmware compatibility check. The JARCR-XOI01 does not carry user-flashable firmware, but boards manufactured after mid-2018 contain a revised CPLD revision. If your controller’s system software is older than YAS-XRC-V3.12, the revised CPLD may not be recognized correctly. Check the system version on the teach pendant under Maintenance → System Version before ordering. Contact us if you need the earlier board revision.

Step 6 — First power-on verification. After installation, navigate to I/O → Monitor on the teach pendant. Confirm all 40 extended I/O points are visible and in the expected state. Any channel showing a fixed fault state with field wiring connected indicates a wiring issue, not a board defect.

Step 7 — Safety interlock cycle test. Before releasing the cell to production, manually actuate every safety device wired through the JARCR-XOI01 — perimeter fence gates, light curtains, area scanners, and safety relay outputs. This board carries safety-rated signals on certain DX200 configurations. A missed interlock test is a recordable incident. Sign off the test sheet before the cell goes live.

Reliability in Harsh Conditions

The JARCR-XOI01 was designed to operate inside a welding robot controller cabinet — an environment that combines radiated heat from servo drives, conducted vibration from the robot base, and airborne contamination from weld fume and metallic oxide dust. Yaskawa’s engineering choices reflect that operating reality.

The PCB carries a full conformal coating that resists the fine iron oxide and aluminum oxide particles generated by MIG and spot welding processes. These particles are electrically conductive at high concentrations. Without conformal coating, they accumulate on PCB surfaces and create leakage paths that produce erratic I/O behavior before causing outright failure. The coating also provides a moisture barrier against the humidity cycling that occurs when a controller cabinet is powered down over a weekend in a coastal or high-humidity facility — a common failure accelerator that goes undiagnosed until the board fails during a Monday morning startup.

The backplane connector uses a positive-locking mechanism with gold-plated contacts rated for 500 insertion cycles. On press and stamping lines where floor vibration is continuous, this connector maintains electrical integrity where standard friction-fit connectors develop intermittent contact within 18 months of installation. We have pulled JARCR-XOI01 boards from controllers that ran three-shift, 52-week operations for over a decade. The failure mode is connector oxidation or EEPROM cell wear — not PCB trace cracking or component delamination.

Operating temperature range inside the controller enclosure is 0°C to 45°C continuous. The board has been observed operating reliably at sustained internal temperatures of 52°C in poorly ventilated enclosures, though we recommend cleaning the controller’s air filters quarterly to keep internal temperatures within specification and extend board service life.

Every unit shipped from our Xiamen warehouse undergoes visual inspection under 10× magnification for cold solder joints, cracked ceramic capacitors, and damaged PCB traces — the three defect modes that pass functional testing but produce field failures within the first 500 operating hours. We do not ship boards that show any of these indicators, regardless of whether they pass a power-on test.

Global Express Logistics

Our warehouse operates from Xiamen, Fujian Province. Xiamen Gaoqi International Airport handles direct freighter services to major hubs across Europe, North America, and Southeast Asia. The Port of Xiamen provides backup routing for non-urgent freight. This infrastructure gives us same-day carrier handoff to DHL Express, FedEx International Priority, and UPS Worldwide Express for orders confirmed before 14:00 CST.

Estimated transit times from Xiamen:

— Southeast Asia (Vietnam, Thailand, Malaysia, Indonesia, Philippines): 2–3 business days via DHL Express
— Northeast Asia (South Korea, Japan, Taiwan): 1–2 business days via FedEx International Priority
— South Asia (India, Pakistan, Bangladesh): 2–4 business days via DHL Express
— Middle East (UAE, Saudi Arabia, Turkey): 3–4 business days via DHL Express
— Europe (Germany, Italy, Poland, Czech Republic, France, Spain): 3–5 business days via DHL Express
— North America (USA, Canada, Mexico): 3–5 business days via FedEx IP or UPS Worldwide Express
— Australia and New Zealand: 3–4 business days via DHL Express

All shipments include a commercial invoice with correct HS code classification (HS 8537.10) to minimize customs clearance delays. For customers in countries with import licensing requirements for industrial electronics, we provide a certificate of origin and a manufacturer declaration on request at no additional charge.

Export documentation is prepared same day for orders confirmed before 14:00 CST. Tracking numbers are sent via email and WhatsApp within two hours of carrier pickup. We monitor every active shipment and contact you proactively if a customs hold or routing exception occurs — you will not be left chasing a tracking number while your production line sits idle.

If you require delivery by a specific date to meet a maintenance window or production restart deadline, contact us before placing the order. We will confirm the realistic delivery date based on current carrier schedules and advise on the best shipping option for your timeline.
