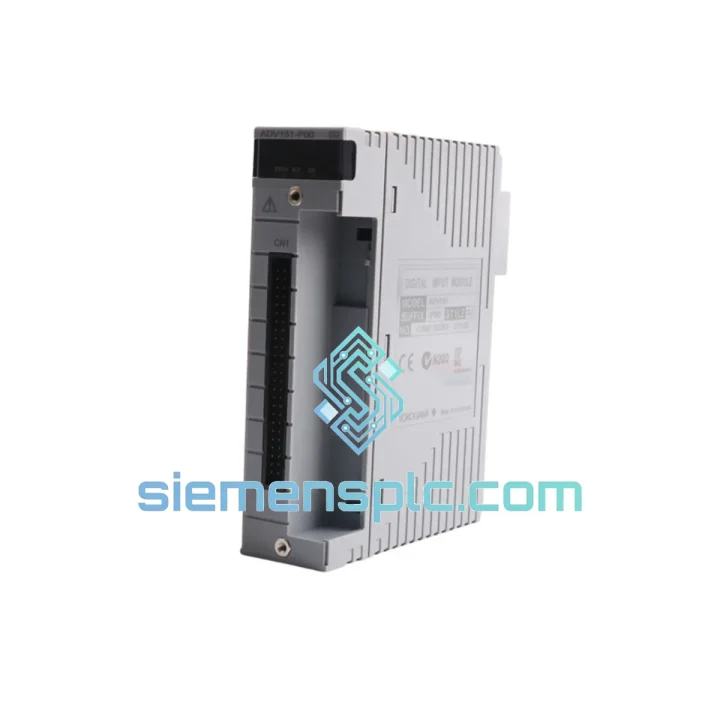

Yokogawa ADV151-P00 S2 Digital Input Module – CENTUM VP CS 3000

Yokogawa ADV151-P00 S2: 32-Channel Optically Isolated Digital Input Module for CENTUM VP and CS 3000 Field Control Stations

The ADV151-P00 S2 occupies a well-defined role in the CENTUM distributed control architecture: it is the primary discrete-state acquisition interface between field instrumentation and the Field Control Station (FCS). Each of its 32 channels independently samples dry-contact or wet-contact signals at 24 V DC nominal, converts the binary state through an optical isolation barrier, and delivers a synchronised digital word to the FCS backplane at every control scan cycle. In a refinery or power-generation environment where hundreds of limit switches, valve position feedback contacts, and motor run/stop relays must be polled without introducing ground-loop noise or common-mode interference into the control bus, the ADV151-P00 S2 provides the electrical boundary that keeps field-side transients from propagating into the FCS CPU domain.

The S2 hardware revision incorporates updated opto-coupler components and revised PCB trace geometry compared to the original S1 release, resulting in measurable improvements in EMC immunity under IEC 61000-4-4 burst testing and reduced susceptibility to conducted interference on the 24 V DC supply rail. These are not cosmetic changes; they reflect Yokogawa’s response to field feedback from high-noise environments such as variable-frequency drive (VFD) motor control centres and high-voltage switchgear rooms.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

At the channel level, each of the 32 inputs is routed through a dedicated opto-coupler stage. The LED side of the coupler is driven by the field-side 24 V DC loop through a current-limiting resistor network, while the phototransistor output feeds a Schmitt-trigger buffer on the system-side PCB. This two-stage architecture — opto-coupler followed by Schmitt trigger — provides both galvanic isolation and hysteresis-based noise rejection. Contact bounce events shorter than the Schmitt threshold window are suppressed before the signal reaches the channel ASIC, reducing false-state transitions that would otherwise generate spurious alarms in the FCS function block logic.

The channel ASIC performs parallel sampling of all 32 inputs within a single scan window and serialises the resulting 32-bit word onto the ESB backplane. Because sampling is synchronous across all channels, the ADV151-P00 S2 avoids the inter-channel skew that would occur with sequential polling architectures. In interlock applications where two or more discrete inputs must be evaluated simultaneously — for example, a two-out-of-three (2oo3) voting logic block — synchronous sampling ensures that the FCS receives a temporally consistent snapshot of field states, which is a prerequisite for deterministic safety logic evaluation.

The S2 revision’s PCB layout routes the 24 V DC field supply traces with increased clearance from the ESB data lines and adds ferrite bead filtering on the opto-coupler supply rail. This directly addresses IEC 61000-4-4 Level 3 fast transient/burst immunity requirements, which are commonly encountered in environments where contactors and solenoid valves share the same 24 V DC distribution panel as the DI module wiring. The result is a module that maintains stable channel states during switching transients that would cause false reads in earlier hardware revisions.

Hot-swap capability is implemented through a sequenced power-up circuit on the module’s backplane connector. When the module is inserted into a live nest, the ESB data lines are connected only after the module’s internal power rails have stabilised, preventing bus contention or data corruption on adjacent modules during the insertion event. The FCS detects the module’s presence via a hardware identification register and initiates an automatic configuration download, restoring the channel’s operational state without requiring an FCS restart.

System Integration Benefits

• Deterministic scan-cycle alignment: All 32 channels are sampled within a single FCS scan period, ensuring that interlock logic and sequence-of-events (SOE) recording receive temporally consistent input data without inter-channel skew.
• Zero-downtime module replacement: Hot-swap insertion and automatic FCS configuration download allow field maintenance teams to replace a failed module without halting the control loop or requesting a process shutdown, directly reducing mean time to repair (MTTR).
• Galvanic field-to-bus isolation: The 500 V AC isolation barrier prevents ground-loop currents and common-mode voltages originating in field wiring from reaching the FCS backplane, protecting CPU and communication hardware from damage and data corruption.
• Dual-redundant I/O architecture: When paired in a redundant nest configuration, the ADV151-P00 S2 supports automatic switchover to the standby module on detection of a primary module fault, maintaining continuous signal acquisition for SIL-rated and high-availability control loops.
• Per-channel diagnostic transparency: LED indicators on the module face provide immediate visual confirmation of channel ON/OFF state and module health, enabling technicians to verify field wiring continuity without connecting a laptop or opening the FCS engineering station.
• FCS alarm integration: Module-level and channel-level faults are reported directly to the FCS alarm management system via the ESB bus, appearing in the operator HIS with timestamp and fault code, supporting structured maintenance workflows and audit trails.
• High channel density per nest slot: 32 DI channels in a single module slot reduces the number of nests and field termination assemblies required for a given I/O count, lowering panel space requirements and wiring infrastructure cost in both greenfield and brownfield projects.
• Cross-platform compatibility: The ADV151-P00 S2 operates in both CENTUM CS 3000 and CENTUM VP environments, allowing plants that are migrating from CS 3000 to VP to reuse existing I/O modules and field wiring, reducing migration capital expenditure.
• EMC-hardened S2 design: Updated opto-coupler components and ferrite bead filtering on the field supply rail provide improved immunity to IEC 61000-4-4 fast transients, making the module suitable for installation in motor control centre (MCC) environments without additional external filtering.
• Schmitt-trigger contact debounce: Hardware-level hysteresis on each channel input suppresses contact bounce from mechanical switches and relays, reducing nuisance alarms and false interlock activations without requiring software filter tuning in the FCS function block.

Quality Assurance & Global Logistics

Every ADV151-P00 S2 unit dispatched from our Xiamen, China facility is a genuine Yokogawa-manufactured component. Units are sourced through verified supply channels and subjected to a structured incoming inspection protocol before being listed as available stock. Inspection covers visual examination of the PCB, connector pins, and module label for physical integrity; confirmation of the S2 hardware revision suffix; and a functional power-on verification to confirm that the module initialises correctly and that all channel LEDs respond as expected.

Modules are stored in a temperature- and humidity-controlled warehouse environment consistent with Yokogawa’s recommended storage conditions (0 °C to +40 °C, 20% to 80% RH). Each unit is individually packaged in anti-static foam with desiccant sachets and sealed in an ESD-protective bag before being placed in a rigid outer carton. This packaging protocol is maintained throughout the fulfillment chain to prevent electrostatic discharge damage during transit.

International shipments are dispatched via DHL Express, FedEx International Priority, or SF Express International, with full tracking provided from collection to delivery. Standard dispatch lead time for in-stock units is 1 to 3 business days from order confirmation. For urgent requirements, same-day dispatch is available on request subject to order cut-off time. Commercial invoices, packing lists, and certificates of conformance are provided with every shipment. For regulated industries requiring additional documentation — such as material traceability records or inspection reports — these are available upon request at the time of order placement.

A 12-month warranty is provided on all units from the date of dispatch. Warranty coverage addresses manufacturing defects and functional failures under normal operating conditions as defined by Yokogawa’s published specifications. Technical support for installation, commissioning, and compatibility queries is available via email and WhatsApp throughout the warranty period.
