ZIEHL-ABEGG FB063-6EQ.4I.V4L EC Axial Fan – FB/FE Series

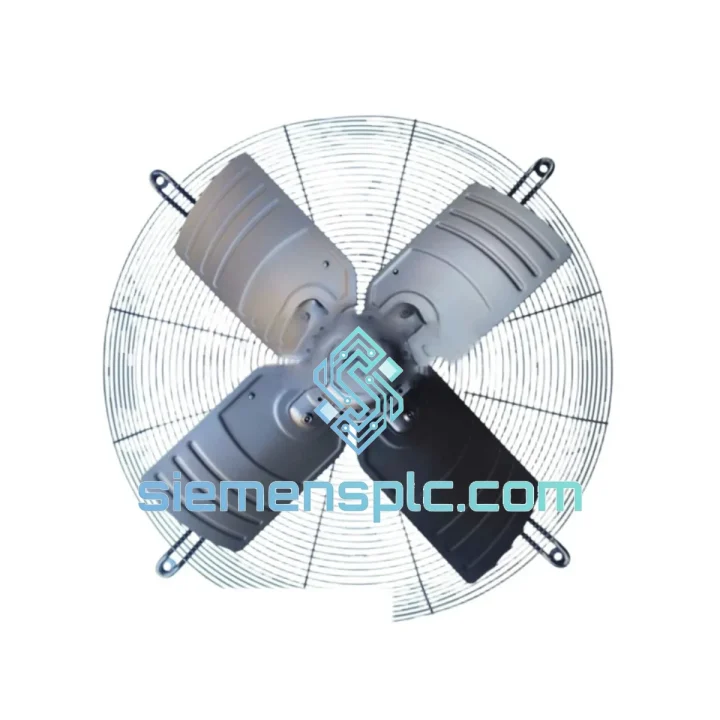

ZIEHL-ABEGG FB063-6EQ.4I.V4L: 630 mm EC Axial Fan for Industrial Refrigeration and Cold-Chain Control Loops

The FB063-6EQ.4I.V4L is a 630 mm diameter, 6-pole electronically commutated (EC) axial fan manufactured by ZIEHL-ABEGG, a German precision engineering group with over a century of specialization in motor and fan technology. Within a refrigeration or cold-storage control loop, this unit functions as the primary airflow actuator on the evaporator side — its rotational speed directly governs heat-transfer rate, coil defrost cycle frequency, and overall system coefficient of performance (COP). Unlike fixed-speed AC fan assemblies, the FB063-6EQ.4I.V4L accepts a 0–10 V DC analog command signal from the refrigeration controller or building management system (BMS), enabling proportional speed modulation without any external frequency inverter. This architecture reduces the number of active power-conversion stages in the control loop, lowers harmonic distortion on the supply bus, and eliminates the inverter as a single point of failure.

The suffix breakdown is engineering-critical for procurement: FB063 denotes the FB-series axial platform with 630 mm nominal blade diameter; 6EQ specifies a 6-pole winding with the EQ motor variant; .4I identifies the 0–10 V analog input interface (as opposed to .4P for PWM); V4L is a ZIEHL-ABEGG internal variant code encoding winding configuration and lead-wire length. Ordering any abbreviated or substituted model number risks dimensional or electrical incompatibility — always specify the full 18-character string.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

EC Motor Architecture and Internal Power Conversion
The FB063-6EQ.4I.V4L integrates a permanent-magnet brushless DC rotor with an onboard IGBT-based inverter module housed within the motor bell. AC mains input (200–277 V) is first rectified to a DC bus; the onboard microcontroller then executes field-oriented control (FOC) algorithms to modulate IGBT switching sequences, maintaining rotor position synchronization via Hall-effect sensors embedded in the stator. This eliminates brush wear, reduces bearing contamination from carbon dust, and extends mean time between failures (MTBF) well beyond conventional AC induction motor designs. The FOC algorithm also enables torque control at low speeds — a critical advantage during evaporator defrost cycles where fan speed must ramp down gradually to prevent thermal shock to coil fins.

EMC Design and Conducted Emission Suppression
The integrated inverter generates high-frequency switching transients (typically 4–16 kHz PWM carrier). ZIEHL-ABEGG addresses conducted EMI through a multi-stage LC filter on the AC input stage, combined with common-mode chokes on the motor phase leads. The result is compliance with EN 61000-3-2 (harmonic current limits) and EN 55014-1 (conducted emissions), ensuring the unit does not degrade power quality on shared distribution panels — a non-trivial concern in cold-storage facilities where multiple fans operate simultaneously on the same feeder circuit.

Sub-Zero Bearing and Lubrication Engineering
Standard bearing grease formulations lose viscosity and lubrication film integrity below −20 °C, leading to accelerated wear and increased starting torque. The FB063-6EQ.4I.V4L uses a specially compounded synthetic grease with a pour point below −55 °C, pre-packed into deep-groove ball bearings with controlled preload. The bearing housing geometry is designed to minimize thermal contraction stress on the outer race at −40 °C, preventing micro-fretting that would otherwise initiate spalling under cyclic thermal loading.

Blade Aerodynamics and Acoustic Profile
The PA-GF blade set uses a swept-back, forward-skewed aerofoil profile derived from ZIEHL-ABEGG’s computational fluid dynamics (CFD) optimization program. Blade sweep reduces the rate of pressure rise at the leading edge, attenuating tonal noise components at blade-pass frequency (BPF = RPM/60 × blade count). At partial-load operating points (40–70% speed), the acoustic signature is substantially lower than fixed-speed AC equivalents — a measurable benefit in noise-regulated cold-storage facilities adjacent to residential zones.

System Integration Benefits

• Direct BMS/EMS Interface: The 0–10 V analog input connects natively to standard refrigeration controllers (Danfoss AK, Carel, Dixell) and building automation systems without signal conditioning hardware, reducing panel wiring complexity and commissioning time.
• Elimination of External Frequency Inverter: Integrated drive electronics remove the inverter as a separate BOM item, reducing panel footprint by up to 40% and eliminating a failure-prone component from the control architecture.
• Deterministic Speed Response: The EC controller achieves speed setpoint within 2–3 seconds of a control signal change, enabling tight integration with PID-controlled refrigeration loops where airflow is a manipulated variable.
• Closed-Loop Speed Verification: Optional tachometer pulse output allows the refrigeration controller to confirm actual fan RPM against setpoint, enabling fault detection for blocked rotor, belt slip (in belt-drive configurations), or mechanical obstruction without additional sensors.
• Energy Metering Compatibility: The near-unity power factor (PF > 0.95 across the operating range) of the EC motor simplifies kWh metering and reactive power compensation calculations in facilities subject to power factor penalty tariffs.
• Soft-Start and Soft-Stop: The integrated controller ramps motor speed at a configurable acceleration rate, eliminating inrush current spikes that would otherwise trip upstream MCBs or cause voltage sags on shared distribution circuits.
• Fault Transparency: Latching shutdown on over-temperature, locked rotor, or under-voltage conditions, with auto-restart after thermal recovery — fault state is detectable by the BMS via loss of tachometer signal or via an optional digital fault output.
• Drop-In Mechanical Compatibility: The FB063 EC series shares the identical mounting flange geometry and blade diameter with legacy ZIEHL-ABEGG FB063 AC variants, enabling direct retrofit without modification to fan housing, ductwork, or mounting structure.
