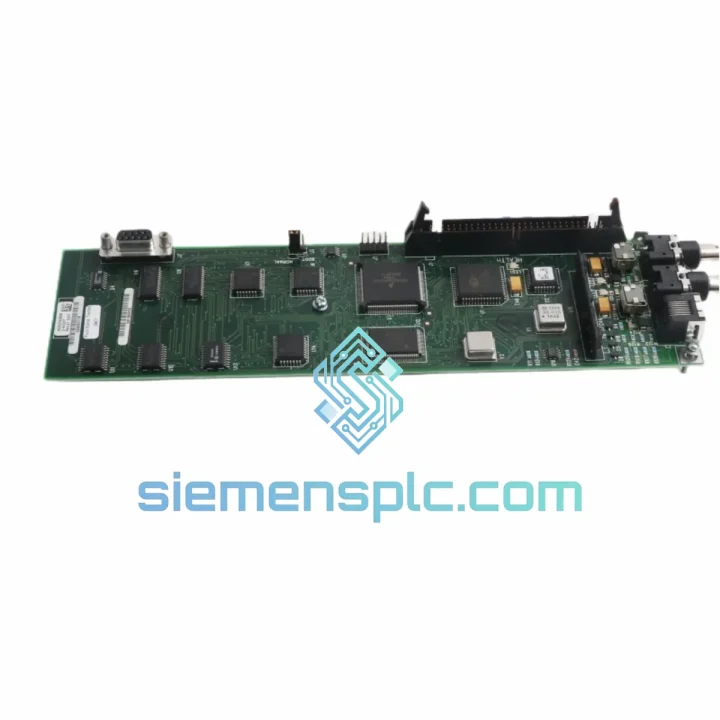

ABB 0-63007 M003742626 803624-113 PC Board

ABB 0-63007 M003742626 803624-113 — Stop the Clock on Your Downtime

Every minute your line is down, you’re bleeding money. When the ABB 0-63007 / M003742626 / 803624-113 control circuit board fails, you don’t have time for OEM lead times that stretch into weeks. This is the exact board — same part, same spec, same footprint — pulled from verified stock and ready to ship today from Xiamen. We’ve done this hundreds of times. We know what’s at stake.

The 803624-113 is a core signal-processing and control board within ABB’s drive and automation architecture. It handles closed-loop feedback, I/O interfacing, and internal bus communication. When it goes down, the drive goes down. When the drive goes down, the process stops. The fix is straightforward — if you have the right board in hand.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Common failure signatures for the 803624-113 board:

• Fault code ACS800 F-0001 / F-0002 (DC bus undervoltage / overvoltage): Before condemning the power section, verify the control board is correctly reading the DC link voltage via its measurement circuit. A failed 803624-113 can report false bus faults even when the power stage is healthy.
• Drive trips on F-0022 (encoder feedback loss): The encoder interface on this board is a common wear point. Check the D-sub connector pins for fretting corrosion before replacing the board — but if the ASIC on the board has failed, replacement is the only fix.
• Intermittent communication loss on DDCS fiber link: The fiber optic transceiver on the 803624-113 degrades over time in high-vibration environments. If the drive is losing sync with the master controller sporadically, this board is the first suspect.
• Drive powers up but outputs no PWM: The gate signal generation logic lives on this board. No PWM output with a healthy IGBT stack almost always points here.

Replacement procedure — field notes:

1. De-energize and lock out: Full LOTO on the drive cabinet. Wait minimum 5 minutes after power-off for DC bus capacitors to discharge below 50 V — verify with a meter before touching anything.
2. Document DIP switch positions: The 803624-113 carries hardware configuration switches (typically SW1–SW4) that set the drive’s node address on the DDCS ring and enable/disable certain I/O functions. Photograph or record all switch positions before removal. The replacement board ships in factory default — you must replicate the original settings.
3. Fiber optic cables: Label each fiber before disconnecting. The TX/RX orientation matters. Reversed fibers will cause immediate communication fault on power-up.
4. Firmware compatibility: If the drive’s main control unit (RMIO / RDCU) is running firmware below version 7.x, verify the 803624-113 revision level is compatible. Mixing board hardware revisions with mismatched firmware can cause non-obvious faults. Check the ABB firmware release notes for your specific drive type.
5. Self-addressing on power-up: After installation, the drive will perform a self-test sequence. Allow it to complete before attempting to run. If the drive faults immediately on F-0001 or similar, recheck the DIP switch configuration — node address conflicts on the DDCS ring are the most common post-replacement issue.
6. Parameter backup: Before any board swap, upload a full parameter backup from the drive panel or DriveWindow. The new board does not retain the previous drive’s parameter set.

Reliability in Harsh Conditions

ABB designed the 803624-113 for deployment in environments that would destroy consumer-grade electronics within weeks. The board’s conformal coating protects the PCB substrate and component leads against condensation, salt fog, and airborne contaminants — a requirement for coastal industrial sites and offshore platforms where humidity regularly exceeds 95% RH non-condensing.

Vibration resistance is engineered to IEC 60068-2-6 test profiles, covering sinusoidal vibration up to 3.5 mm displacement at frequencies from 2 to 9 Hz and 10 m/s² acceleration from 9 to 200 Hz. In practice, this means the board survives continuous operation next to large rotating machinery — compressors, mills, and pumps — without solder joint fatigue or connector fretting.

Thermal performance is rated for ambient operating temperatures from -10°C to +55°C, with short-term excursions to +70°C tolerated during transport. The board’s power dissipation is managed through careful component placement and thermal vias, ensuring that even in poorly ventilated cabinets, the critical ICs remain within their junction temperature limits.

Every unit we ship — whether new OEM or tested surplus — is inspected under magnification for lifted pads, cracked solder joints, electrolyte leakage from capacitors, and corrosion on connector contacts. Boards that don’t pass visual inspection don’t leave our warehouse. Boards that pass visual are bench-tested for basic functionality before packaging. You receive a board that works, not a board that looks like it might work.

Global Express Logistics

Our dispatch hub is in Xiamen, China — one of the country’s primary export ports with direct DHL and FedEx gateway access. When you confirm an order, here’s what happens:

• Same-day dispatch: Orders confirmed before 14:00 CST ship the same business day. Orders confirmed after 14:00 ship the following morning.
• Packaging: The board is sealed in a static-shielding bag, placed in foam-lined inner packaging, and boxed in a double-wall corrugated outer carton. The carton is labeled with the part number, your reference, and the destination address. Fragile and ESD-sensitive markings are applied.
• DHL Express Worldwide: Typical transit times — Europe: 2–4 business days. North America: 3–5 business days. Southeast Asia: 1–2 business days. Middle East: 3–5 business days. Australia: 3–5 business days.
• FedEx International Priority: Available as an alternative carrier. Transit times are comparable to DHL. We select the carrier with the best current routing for your destination unless you specify a preference.
• Tracking: A tracking number is emailed to you within 2 hours of dispatch. You can monitor the shipment in real time through the carrier’s portal.
• Export documentation: Commercial invoice, packing list, and airway bill are provided as standard. Certificate of Origin and other customs documents are available on request. We have experience exporting to 60+ countries and can advise on import requirements for your destination.
• Customs clearance: We declare goods accurately and at full value. We do not under-declare or mislabel shipments. This protects you from customs seizure and ensures your import records are clean.

If your plant is down right now and you need this board on the fastest possible timeline, call or WhatsApp us directly. We will confirm stock, generate a proforma invoice, and have the shipment booked within the hour.
