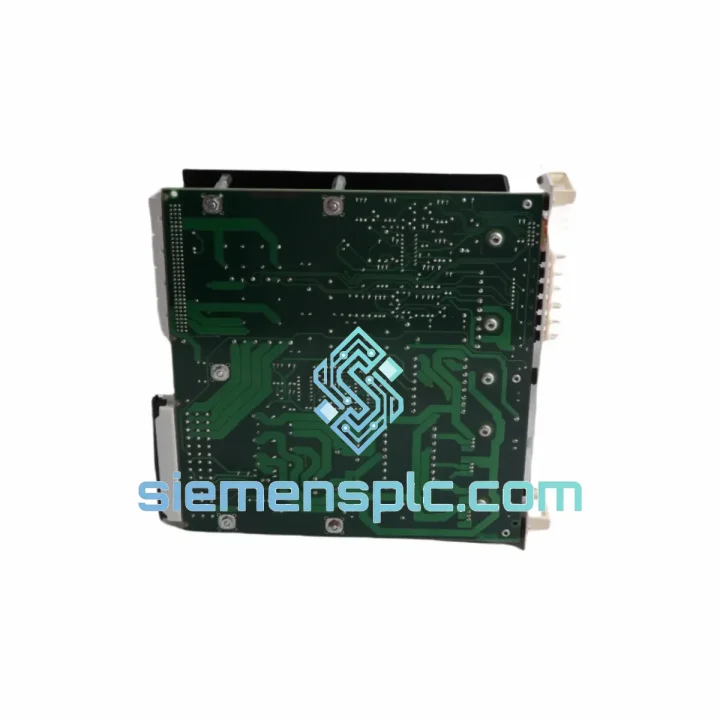

ABB YPP109A YPN106A EG2401S-AR DCS Power Module

ABB YPP109A / YPN106A EG2401S-AR – Stop the Clock on Your DCS Downtime

Every hour a DCS power module stays offline in a process plant costs money — sometimes tens of thousands per hour in lost production, emergency labor, and cascading process upsets. The ABB YPP109A (YT204001-DL) / YPN106A (YT204001-BD) digital power module assembly, sub-reference EG2401S-AR, is the dedicated DC power conditioning unit for ABB’s Symphony Plus, Advant, and MOD 300 distributed control system platforms. When this module fails, the downstream I/O racks lose their regulated supply rail, and the controller goes dark. There is no workaround — you need the exact replacement, and you need it fast.

siemensplc.com maintains verified stock of the YPP109A / YPN106A EG2401S-AR assembly in Xiamen, China, with same-day dispatch capability for confirmed orders. Our inventory is sourced through traceable ABB-authorized surplus channels, inspected against OEM markings, and bench-tested before packaging. If your plant is down right now, this is the page you need.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Field experience with ABB DCS power module failures points to a consistent set of fault signatures. Before condemning the YPP109A / YPN106A assembly, work through the following diagnostic sequence to confirm the fault is in the power module and not upstream in the AC feed or downstream in a shorted I/O card.

Common Fault Indicators:

• PWR FAIL LED lit on controller faceplate: The most direct indicator. Cross-check with the system event log — ABB Symphony Plus logs power rail undervoltage events with timestamp and node address. If the event correlates with a 24 V DC rail drop below 21.6 V, the YPP109A output stage is the primary suspect.
• Intermittent controller resets without process alarm: Often caused by marginal capacitor degradation inside the YPN106A filter stage. The module passes initial power-on self-test but collapses under load transients. Replace the full YPP109A / YPN106A assembly — do not attempt to replace individual capacitors in the field.
• Asymmetric voltage across redundant power rails: In dual-supply configurations, a delta greater than 0.8 V between the two 24 V rails indicates one module is current-limiting. Identify the weak module using a clamp meter on the output bus bar before pulling either card.
• EG2401S-AR sub-assembly hot to touch: Thermal runaway in the regulation circuit. Immediate shutdown recommended. Do not attempt to restart — internal damage is likely progressive.

Replacement Procedure Notes:

• No DIP switch or address configuration required: The YPP109A / YPN106A is a passive power conditioning assembly. It carries no node address, firmware, or software configuration. Slot-for-slot replacement is valid — no engineering workstation connection needed post-swap.
• Hot-swap capability: Verify your specific rack revision supports live insertion before attempting. On older Advant OCS racks, power down the affected rack section before extraction to avoid backplane transients.
• Connector seating: The keyed backplane connector requires firm, even pressure. A partially seated module will pass visual inspection but produce intermittent 24 V dropout under vibration. Use the module’s front-panel extraction levers to confirm full engagement — both levers must click into the locked position.
• Post-replacement verification: Measure output voltage at the rack test points (TP1/TP2 on the backplane PCB) within 30 seconds of power-up. Acceptable range: 23.5 V DC to 25.2 V DC. Log the reading in your maintenance record.
• Firmware matching: Not applicable to this module. The EG2401S-AR sub-assembly contains no programmable logic. No firmware download or version matching is required.

Reliability in Harsh Conditions

ABB designed the YPP109A / YPN106A power module family for continuous operation in process industry control rooms and marshalling cabinets — environments that are rarely as benign as the equipment room in a datasheet photo. The module’s construction reflects the physical realities of industrial deployment.

The PCB substrate uses a high-Tg FR4 laminate rated for continuous operation at 130 °C, providing margin against the localized thermal loading that occurs when the module is mounted in a fully populated rack with minimal forced-air cooling. Electrolytic capacitors in the output filter stage are rated at 105 °C, not the 85 °C components found in commercial-grade power supplies — this directly extends mean time between failures (MTBF) in warm cabinet environments.

Vibration resistance is addressed through conformal coating on the primary PCB assembly, which prevents micro-fractures in solder joints under the low-frequency mechanical vibration (5–150 Hz) common in pump houses, compressor buildings, and offshore platform control rooms. The module’s front-panel connector uses gold-plated contacts with a minimum 500-cycle insertion rating, maintaining low contact resistance across repeated maintenance interventions.

EMC performance is achieved through a combination of input filtering on the AC feed side and output decoupling on the 24 V DC rail. The module meets IEC 61000-4-4 (electrical fast transient) and IEC 61000-4-5 (surge immunity) requirements, which is the relevant baseline for DCS power supply components operating in proximity to variable-speed drives, large contactors, and transformer switching events.

Humidity tolerance up to 95% non-condensing, combined with the conformal coating, makes the module suitable for coastal and tropical installations where cabinet breathing cycles introduce moisture over time.

Global Express Logistics

siemensplc.com operates from Xiamen, Fujian Province — one of China’s primary export hubs with direct access to Xiamen Gaoqi International Airport and the Port of Xiamen. This geographic position enables consistent next-flight-out dispatch for urgent industrial spare parts.

Standard Dispatch Process:

• Order confirmation by 14:00 CST: Same-day dispatch via DHL Express or FedEx International Priority. Tracking number issued within 2 hours of collection.
• Order confirmation after 14:00 CST: Next business day dispatch. For genuine plant-down emergencies, contact us via WhatsApp — we can arrange after-hours packaging and airport drop-off for critical shipments.
• Transit times (indicative): Southeast Asia 1–2 days; Middle East and Europe 2–3 days; North America 3–4 days; South America and Africa 4–6 days. Actual transit depends on customs clearance at destination.
• Export documentation: Commercial invoice, packing list, and certificate of origin are prepared for every shipment. HS Code 8537.10 is applied for customs classification. We can provide a pro-forma invoice for advance customs pre-clearance on request.
• Dangerous goods: Not applicable. The YPP109A / YPN106A assembly contains no lithium cells, pressurized components, or restricted substances requiring special air freight declarations.
• Insurance: Shipment insurance is available and recommended for high-value orders. Declare your requirement at the time of order confirmation.

For plant-down situations where every hour counts, send your purchase order or RFQ directly to [email protected] with the subject line URGENT – YPP109A. Our team monitors this inbox around the clock for emergency procurement requests.
