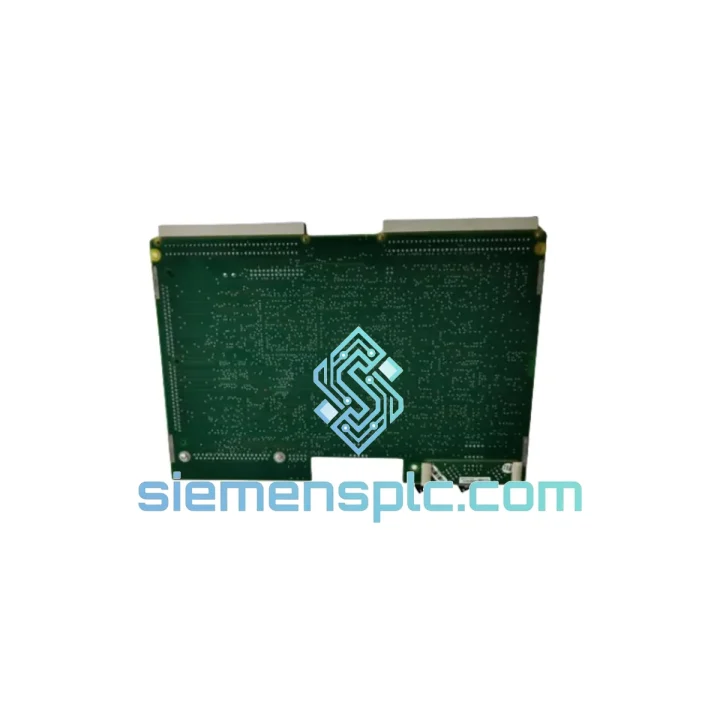

ABB 1MRK000167-GCr00 PC Board – REL REB REF Series

ABB 1MRK000167-GCr00 Protection Relay PC Board — Signal Processing Architecture in Numerical Relay Control Loops

The ABB 1MRK000167-GCr00 (cross-reference: 1MRK000005-258) is a printed circuit board engineered for deployment within ABB’s numerical protection relay platform. Its primary function is to serve as a signal conditioning and processing substrate within the relay’s internal control loop — bridging analog measurement inputs, digital logic execution, and inter-module communication on the relay backplane. The board operates under deterministic timing constraints imposed by the relay’s protection algorithm cycle, typically in the range of 1–20 ms per protection function execution, depending on the host relay series and configured protection elements.

Unlike generic industrial PCBs, this board is designed to satisfy the electrical isolation, thermal stability, and EMC immunity requirements mandated by IEC 60255 (measuring relays and protection equipment) and IEC 61000-4 series immunity standards. Its role in the control loop is not passive: it participates actively in signal routing, analog-to-digital conversion buffering, and status flag propagation to the relay CPU module.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

Optical Isolation Architecture: Signal inputs on the 1MRK000167-GCr00 are routed through optocoupler stages rated for a minimum common-mode transient immunity (CMTI) of 10 kV/μs. This prevents ground-loop currents and high-frequency transients — common in substation environments where switching operations on 110 kV or 220 kV busbars generate steep-front surges — from propagating into the board’s logic domain. The isolation barrier is maintained at the analog input stage, ensuring that the ADC reference ground remains decoupled from the field wiring ground.

EMC Design and Shielding: The PCB stack-up incorporates dedicated ground planes between signal layers, reducing inter-layer crosstalk to below −60 dB at frequencies up to 100 MHz. Ferrite beads are placed at the board’s power entry points to attenuate conducted emissions in the 150 kHz–30 MHz range. Bypass capacitors (100 nF X7R ceramic in parallel with 10 μF electrolytic) are distributed at each IC power pin to suppress local supply rail noise below 50 mVpp under transient load conditions.

Backplane Bus Interface: The board interfaces with the relay’s internal backplane via a parallel or serial bus architecture (relay-series dependent), with address decoding logic implemented in on-board programmable logic. Bus arbitration is handled through a priority-encoded scheme that guarantees the protection CPU module always holds bus mastership during active protection algorithm execution cycles, preventing I/O board transactions from introducing latency into the protection trip path.

Thermal Management: Component placement follows a thermal gradient strategy: high-dissipation components (power regulators, driver ICs) are positioned at the board edges adjacent to the relay chassis airflow path, while temperature-sensitive analog components (precision references, ADC front-ends) are located in the thermally stable center zone. This layout maintains analog reference drift below ±50 ppm/°C across the full operating temperature range.

Conformal Coating: The board is conformally coated with an acrylic or polyurethane compound (IPC-CC-830 compliant) to resist moisture ingress, condensation, and airborne contaminants — a critical requirement for installations in coastal substations or industrial environments with elevated particulate levels.

System Integration Benefits

• Zero-configuration drop-in replacement: The GCr00 hardware revision maintains full backward compatibility with the relay’s firmware baseline, eliminating the need for parameter re-entry or protection setting recalculation upon board swap.
• Deterministic protection cycle integrity: The board’s bus arbitration logic ensures that I/O scan cycles do not preempt the protection CPU’s algorithm execution window, preserving trip time accuracy to within ±1 ms of the relay’s specified operate time.
• Diagnostic transparency via relay HMI: Board-level self-diagnostics (power supply monitoring, watchdog status, communication health) are mapped to the relay’s internal event log and accessible via the relay’s local HMI or remote SCADA interface without additional configuration.
• IEC 61850 ecosystem compatibility: When installed in Relion-series hosts, the board’s data model contributions are automatically included in the relay’s IEC 61850 logical node structure, maintaining GOOSE and Sampled Values interoperability with substation automation systems.
• Reduced maintenance window duration: Board replacement requires only standard ESD precautions and mechanical re-seating — no soldering, no firmware flashing, and no calibration procedure — enabling maintenance teams to restore relay service within a single planned outage window.
• Thermal derating margin: Rated to 55 °C continuous operation with a thermal derating curve that permits short-duration excursions to 70 °C without component damage, providing headroom for installations in poorly ventilated relay panels.
• Long-term spare parts availability: The GCr00 revision is stocked as a long-life spare part, with cross-reference traceability to the 1MRK000005-258 procurement code used in older ABB service documentation, simplifying spare parts management across mixed-vintage relay fleets.
• Anti-static and export-grade packaging: Each unit ships in a conductive foam anti-static tray inside a sealed moisture-barrier bag with desiccant, enclosed in a rigid export carton rated for air and sea freight handling — ensuring board integrity from Xiamen to the end installation site.

Quality Assurance & Global Logistics

Every ABB 1MRK000167-GCr00 unit dispatched from our Xiamen, China facility undergoes a structured pre-shipment inspection protocol. Visual inspection confirms the absence of physical damage, corrosion, or component displacement. Functional verification is performed where test fixtures are available, with results documented in a unit-level test record. Boards sourced from ABB’s authorized distribution network carry original ABB traceability markings and are accompanied by manufacturer documentation upon request.

Xiamen’s geographic position as a major South China Sea port provides direct access to international air freight hubs (Xiamen Gaoqi International Airport) and sea freight lanes serving Southeast Asia, the Middle East, Europe, and the Americas. Standard air freight transit times are 3–7 business days to most destinations. DHL Express, FedEx International Priority, and UPS Worldwide Express are the primary carriers for time-critical shipments. Sea freight consolidation is available for bulk orders where lead time permits. Export documentation — including commercial invoice, packing list, certificate of origin, and HS code declaration (HS 8538.90 for relay PCBs) — is prepared as standard for all international shipments.

All units are covered by a 12-month warranty from the date of shipment. Warranty claims are processed with a target response time of 1 business day. Defective units are replaced or credited at our discretion following technical assessment. No-fault returns are accepted within 30 days of receipt subject to prior authorization.
