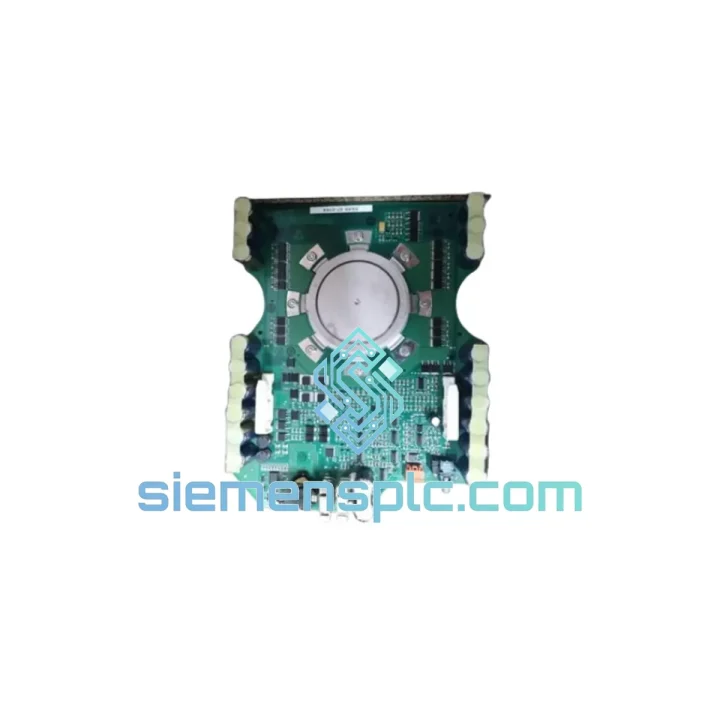

ABB 3BHB020538R0001 IGCT Module

ABB 3BHB020538R0001 / 5SHX1060H0003 / 3BHE024415R0101 — GV C714 A101 IGCT Stack: Stop the Clock on Your Downtime

Every hour your ACS1000, ACS5000, or MEGADRIVE-LCI sits idle costs real money — production losses, penalty clauses, idle crews. The GV C714 A101 IGCT stack is the single most failure-prone power cell component in ABB’s medium-voltage drive lineup, and when it goes, the drive goes with it. We stock the complete matched assembly — gate unit 3BHB020538R0001, thyristor wafer 5SHX1060H0003, and driver board 3BHE024415R0101 — ready to pull from shelf and ship same day from Xiamen. No waiting on ABB lead times. No partial kits. One order, one shipment, back online.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Fault Codes That Point Here First

Before you pull the stack, confirm the fault signature. On ACS1000/5000 platforms, the following fault codes are the most common indicators of a failed GV C714 A101 assembly:

• F-0011 / F-0012 (Gate Fault): Driver board 3BHE024415R0101 is not receiving acknowledgment from the gate unit. Check fiber-optic TX/RX continuity first — a cracked fiber jumper mimics a dead gate unit. If fiber checks out, the gate unit itself is suspect.
• F-0021 (Overcurrent / Short Circuit): Thyristor wafer 5SHX1060H0003 has failed short. Measure anode-cathode resistance with a 500 V megger — anything below 1 MΩ confirms wafer failure. Do not attempt to re-fire the drive.
• F-0031 (Coolant Temp High / Thermal Derating): Often misdiagnosed as a cooling system fault. If coolant flow and inlet temp are within spec, the wafer’s thermal resistance has degraded — a sign of end-of-life junction fatigue. Replace the stack proactively.
• F-0041 (Driver Supply Undervoltage): Internal SMPS on 3BHE024415R0101 has failed. The driver board is a line-replaceable unit — swap it independently before condemning the full stack.

Step-by-Step Replacement Procedure

1. Isolate & Discharge: Open main MV breaker and LV auxiliary supply. Verify DC link voltage is below 50 V using a calibrated HV probe — do not rely on drive display alone. Lock out / tag out per site procedure.
2. Drain Coolant Loop: Close isolation valves on the power cell cooling circuit. Drain residual coolant from the cell manifold into a clean container. Note: deionized water conductivity must be re-verified after refill (<5 µS/cm per ABB service manual 3BHS135153).
3. Disconnect Fiber Optics: Label and photograph all fiber connections to 3BHE024415R0101 before removal. Fiber TX/RX pairs are polarity-sensitive — incorrect reconnection causes persistent gate fault codes.
4. Remove Bus Bar Connections: Torque values for anode/cathode bus bar bolts are specified in the cell-specific service drawing. Retain hardware — ABB uses non-standard M10 stainless fasteners in this assembly.
5. Extract the Stack: The GV C714 A101 slides out on a rail guide. Do not tilt more than 15° during extraction — the wafer clamping spring preload is set at the factory and must not be disturbed.
6. Install New Assembly: Verify the replacement stack’s date code and lot number match your maintenance records. Slide in, reconnect bus bars to specified torque, reconnect fiber in correct polarity, reconnect coolant fittings.
7. Refill & Purge: Refill coolant loop, bleed air from high points, verify flow rate and inlet temperature before energizing.
8. Firmware Check: No firmware flashing is required for the GV C714 A101 stack itself — the driver board 3BHE024415R0101 is hardware-configured. However, confirm the drive’s control software version is compatible with your power cell revision (check ABB technical note TN-ACS-2019-04 for revision matrix).
9. Test Run: Perform a no-load test at reduced speed before returning to full production load. Monitor gate fault registers for the first 30 minutes of operation.

Critical Configuration Notes

• The GV C714 A101 does not use DIP switches or address jumpers — it is not self-addressing. The drive’s control system identifies the power cell by slot position, not by module ID.
• Never mix gate unit and wafer from different production lots. ABB matches these at the factory. Mismatched assemblies cause asymmetric current sharing and accelerated wafer degradation.
• If replacing only the driver board (3BHE024415R0101), re-run the gate calibration routine from the drive’s service menu after installation. Skipping this step causes intermittent F-0011 faults under load.

Reliability in Harsh Conditions

The GV C714 A101 IGCT stack was engineered for environments that destroy lesser components. ABB’s qualification testing for this assembly exceeds standard IEC 60068 requirements across every stress category relevant to heavy industry:

Vibration & Mechanical Shock: The thyristor wafer is clamped under controlled spring preload — not soldered or bonded — which means thermal cycling does not induce solder fatigue. The assembly survives IEC 60068-2-6 sinusoidal vibration at 2 g across 10–150 Hz and IEC 60068-2-27 shock at 15 g / 11 ms half-sine. This matters on offshore platforms and mining conveyors where structural vibration is continuous.

Thermal Cycling: Medium-voltage drives in cement, steel, and mining applications cycle between full load and standby dozens of times per shift. The IGCT’s pressure-contact construction eliminates the coefficient-of-thermal-expansion mismatch that causes IGBT module bond wire fatigue. Field data from ABB’s installed base shows IGCT stacks achieving >15 years of service life in continuous cycling applications where IGBT modules require replacement every 5–7 years.

Humidity & Contamination: The driver board 3BHE024415R0101 is conformally coated to IPC-CC-830B standard, providing protection against condensation, salt fog (IEC 60068-2-52), and airborne conductive particulates. In cement plant and coastal installations where humidity regularly exceeds 90% RH, this coating is the difference between a 10-year service life and a 2-year one.

High Altitude: Derating is required above 1,000 m ASL per IEC 60664-1. For installations at 2,000–4,000 m (common in Andean mining and Tibetan plateau applications), consult ABB’s altitude derating curves in technical document 3BHS490294. The IGCT’s liquid-cooled architecture is inherently less sensitive to altitude than air-cooled IGBT designs.

Global Express Logistics

Our warehouse is located in Xiamen, Fujian Province — one of China’s primary export hubs with direct access to DHL, FedEx, and UPS international gateways. When your drive goes down, here is exactly what happens after you place your order:

• Hour 0–2: Order confirmed, unit pulled from shelf, pre-shipment inspection completed (visual, gate impedance check, packaging integrity verified).
• Hour 2–6: Export documentation prepared — commercial invoice, packing list, HS code 8541.10 declaration. For customers requiring a Certificate of Origin or inspection report, these are generated in parallel.
• Hour 6–24: Shipment handed to DHL Express or FedEx International Priority, depending on destination and customer preference. Tracking number issued to customer via email and WhatsApp.
• Day 1–3 (most destinations): DHL Express delivers to major industrial hubs in Southeast Asia, Middle East, Europe, and the Americas. Remote destinations (offshore platforms, inland mining sites) may require an additional 1–2 days for final-mile delivery.
• Customs Clearance: We pre-classify all shipments with correct HS codes and provide complete commercial documentation to minimize customs hold risk. For customers in countries with import licensing requirements for electronic components, we advise on documentation requirements at the time of order.
• Emergency Courier: For absolute critical situations, we can arrange hand-carry courier service from Xiamen to your site. Contact us directly to discuss.

All units are packed in anti-static shielding bags with humidity indicator cards, enclosed in foam-lined rigid cartons rated for air freight handling. The GV C714 A101 stack has never arrived damaged in transit under this packaging protocol.
