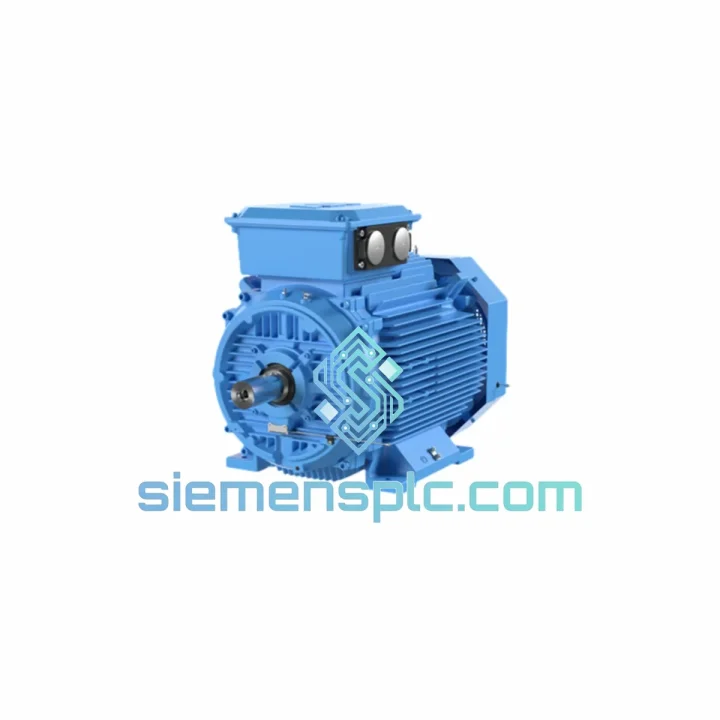

ABB 3GAA052002-A AC Induction Motor – M2AA Series

ABB 3GAA052002-A Low-Voltage AC Induction Motor — M2AA Series Compact Frame Drive Unit

The ABB 3GAA052002-A is a compact-frame, aluminium-housed AC induction motor from ABB’s M2AA series, designed for continuous-duty industrial drive applications where dimensional precision, thermal stability, and IEC interchangeability are non-negotiable engineering requirements. This unit operates within the low-voltage segment of ABB’s rotating machine portfolio, occupying a frame class that balances torque density with installation flexibility — a combination that makes it a preferred selection for OEM machine builders and system integrators working under tight enclosure constraints.

Unlike cast-iron frame motors, the aluminium housing of the 3GAA052002-A provides a measurable reduction in total installed weight — approximately 2.45 kg — without compromising the structural rigidity required to maintain bearing alignment under continuous radial and axial loading. The alloy’s thermal conductivity coefficient (approximately 160 W/m·K) facilitates passive heat dissipation from the stator winding stack to the external fin array, reducing the thermal gradient across the insulation system during sustained S1 duty cycles.

The M2AA series was engineered to IEC 60034-1 dimensional standards, which means the 3GAA052002-A is a dimensionally interchangeable replacement for any IEC-frame motor of equivalent frame designation. Shaft height, bolt-circle diameter, and shaft-end geometry conform to IEC 72-1 tolerances, eliminating the need for adapter plates or custom coupling modifications during retrofit installations.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 3GAA052002-A stator winding employs a distributed lap-wound configuration with Class F impregnation resin applied under vacuum-pressure impregnation (VPI) process. VPI eliminates inter-turn voids that would otherwise act as partial-discharge initiation sites under repetitive PWM inverter excitation — a critical design consideration when the motor is driven by a variable-frequency drive (VFD) with switching frequencies in the 4–16 kHz range.

The rotor assembly uses a die-cast aluminium squirrel cage with skewed rotor bars. Bar skew angle is selected to suppress the dominant slot harmonic order, reducing audible noise and torque ripple at rated speed. The skew geometry also attenuates parasitic eddy-current losses in the rotor end rings, contributing to the motor’s efficiency classification under IEC 60034-30.

Bearing selection follows ABB’s standard practice for this frame class: deep-groove ball bearings (6200 series) at both drive-end (DE) and non-drive-end (NDE) positions, pre-greased with lithium-complex grease rated to 120 °C continuous. The bearing housing bores are machined to H7 tolerance, ensuring consistent interference fit with the outer race and preventing fretting corrosion under vibration-loaded conditions.

The terminal box is positioned at the top of the motor frame with a 90° rotation capability in 4 positions, accommodating conduit entry from multiple directions without requiring motor repositioning. Terminal block accepts conductors up to 4 mm² with M4 screw terminals, rated for 600 V insulation class. The IP55 terminal box gasket is moulded EPDM rubber, maintaining seal integrity across the full operating temperature range.

EMC performance is addressed through the aluminium frame’s inherent shielding effectiveness against radiated emissions. The frame provides a continuous conductive enclosure around the stator assembly, attenuating high-frequency common-mode currents that would otherwise couple into adjacent signal wiring in mixed-signal control panels. For VFD-driven installations, ABB recommends supplementary shaft grounding rings to divert bearing currents induced by common-mode voltage on the motor shaft.

System Integration Benefits

• IEC 60034-1 dimensional conformance — direct drop-in replacement for any M2AA or equivalent IEC-frame motor of the same frame designation, eliminating mechanical re-engineering costs during retrofit projects.
• VFD compatibility — Class F VPI winding withstands repetitive dV/dt stress from PWM inverters; compatible with ABB ACS310, ACS355, ACS580, and equivalent third-party drives without additional output filters in most standard cable-length configurations.
• Deterministic thermal behaviour — aluminium frame’s high thermal conductivity reduces winding hot-spot temperature rise by approximately 8–12 K compared to equivalent cast-iron frames at the same power rating, extending insulation service life per Arrhenius degradation models.
• Reduced installation mass — at 2.45 kg, the motor imposes minimal structural load on lightweight machine frames and conveyor structures, reducing the required section modulus of mounting brackets and support members.
• IP55 environmental sealing — suitable for deployment in dusty production environments (woodworking, cement, grain handling) and wash-down zones where periodic low-pressure water cleaning is performed.
• Multi-position terminal box — 4-position rotation eliminates conduit routing conflicts in congested panel layouts, reducing installation labour and cable tray complexity.
• Standardised bearing maintenance intervals — pre-greased deep-groove bearings with defined relubrication intervals (per ABB maintenance schedule) enable predictive maintenance integration with CMMS platforms without motor-specific calibration.
• Global spare-parts ecosystem — M2AA series components (bearings, seals, terminal blocks) are stocked by ABB distributors in over 100 countries, minimising mean time to repair (MTTR) for geographically distributed installations.

Quality Assurance & Global Logistics

Every ABB 3GAA052002-A unit supplied through siemensplc.com is sourced from verified ABB-authorised distribution channels with full batch traceability. Prior to dispatch, each unit undergoes a structured acceptance inspection covering nameplate data verification, housing integrity assessment, shaft runout check, and terminal insulation resistance measurement (minimum 100 MΩ at 500 V DC Megger test). Units failing any acceptance criterion are quarantined and returned to the supply chain — no exceptions.

Logistics operations are managed from our warehouse in Xiamen, China, with established carrier agreements with DHL Express, FedEx International Priority, and sea-freight consolidators for bulk orders. Standard export documentation — commercial invoice, packing list, certificate of origin — is prepared for every shipment. For orders requiring specific import compliance documentation (REACH declaration, RoHS statement, CE Declaration of Conformity), these are available upon request prior to order confirmation.

Transit packaging uses anti-static polyethylene foam inserts within double-wall corrugated cartons, rated to withstand the mechanical shock and vibration profiles defined in ISTA 2A test procedures. Each carton is labelled with the SKU, serial number, and inspection record reference, providing end-to-end traceability from our warehouse to the customer’s goods-receiving dock.

The 12-month warranty covers manufacturing defects in materials and workmanship under normal operating conditions as defined by IEC 60034-1. Warranty claims are processed within 5 business days of receipt of the returned unit and supporting documentation.
