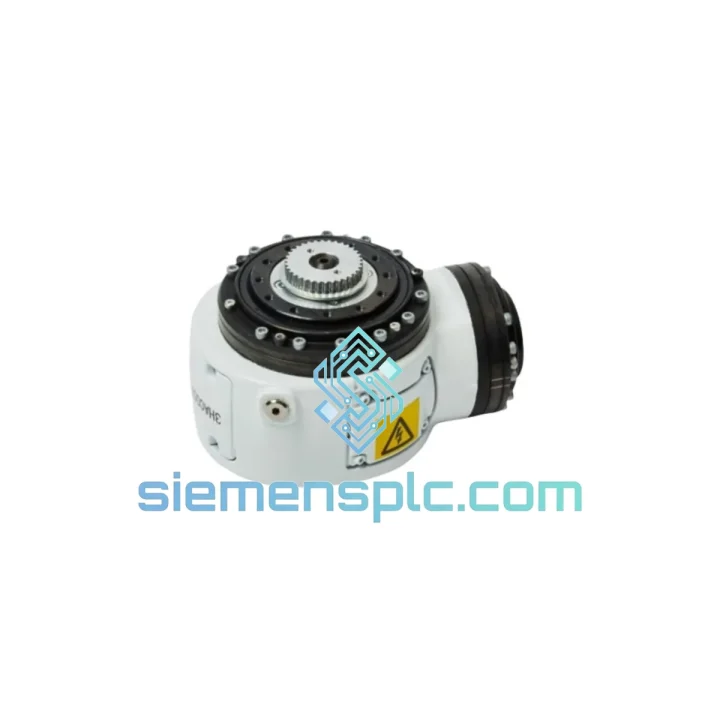

ABB 3HAC023854-001 Servo Drive Unit IRB4400

ABB 3HAC023854-001 — Wrist Drive Unit Down? Every Minute Costs You Money. We Ship Today.

Your IRB4400 is offline. Axis 5 or Axis 6 has thrown a fault — motion error, resolver loss, or a dead drive stage. The robot cell is cold, the line is stopped, and your maintenance team is staring at a cabinet waiting for a part that your distributor says is 4–6 weeks out. That’s not acceptable. We stock ABB 3HAC023854-001 (cross-ref: 3HAC5954-1 / 3HAC056146-001) in Xiamen and we can have it moving toward your facility within hours of order confirmation — DHL Express, door to door, tracked every step.

This is not a grey-market gamble. Every unit we dispatch has been function-tested against ABB’s own resolver feedback loop verification procedure. You get a part that works on the first installation attempt, not a paperweight that costs you another day of downtime while you wait for a replacement replacement.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Common fault signatures that point to 3HAC023854-001 failure:

• Error 50024 / 50025 — Joint 5 or Joint 6 position deviation: The resolver inside the drive unit is returning inconsistent position data. Before condemning the drive unit, verify the resolver cable connector at the wrist is fully seated and undamaged. If the cable is intact and the error persists across a cold restart, the resolver stage inside the drive unit has failed — replace the unit.
• Error 38203 — Drive unit communication fault: The DSQC 661/662 drive module in the controller cabinet cannot establish a handshake with the wrist drive unit. Check the internal harness routing through the upper arm for chafing. If the harness is clean, the drive unit’s communication interface has failed.
• Axis 5/6 motor runs hot with no load: A shorted output stage in the drive unit causes continuous current draw even at rest. Measure phase-to-phase resistance at the motor connector — if readings are asymmetric, the drive unit is the source.
• Intermittent position jumps during high-speed wrist moves: Resolver signal dropout under vibration. This is a mechanical fatigue failure inside the drive unit — not a cable issue. Replace the unit.

Replacement procedure — field notes:

1. Power down the controller and engage the mechanical brake release procedure per ABB service manual section 4.3. Do not skip the brake release — forcing the wrist against a live brake will damage the gearbox.
2. Photograph the existing cable routing before disconnecting anything. The wrist harness has three connectors: motor power, resolver, and brake. Swapping resolver and brake connectors is a common field error that produces confusing fault codes on first power-up.
3. Remove the four M5 mounting screws securing the drive unit to the wrist housing. The unit will slide out axially — support it as you withdraw it to avoid stressing the harness.
4. Install the new 3HAC023854-001. Torque the M5 screws to 6 Nm. Do not over-torque — the housing is aluminium alloy.
5. Reconnect all three connectors. Verify the resolver connector locking tab clicks fully home — a half-seated resolver connector is the single most common cause of a failed first power-up after drive unit replacement.
6. No calibration offset adjustment is required. The 3HAC023854-001 uses an absolute resolver — the robot controller reads the absolute position on power-up without a homing cycle. If the controller requests a calibration after replacement, verify the resolver connector seating before assuming a calibration fault.
7. Perform a slow-speed (10% override) test move through the full Axis 5 and Axis 6 range before returning to production speed. Monitor the drive current in the controller’s diagnostic screen — current draw should be symmetric and within the rated envelope.

Firmware note: No firmware flashing is required for this drive unit. The 3HAC023854-001 does not carry field-updatable firmware — all motion control logic resides in the DSQC drive module in the controller cabinet. If your controller is running RobotWare 5.x or 6.x, this unit is compatible without any software changes.

Reliability in Harsh Conditions

The IRB4400 wrist assembly operates in some of the most demanding industrial environments on the planet — semiconductor fabs cycling between cleanroom-controlled 20°C and the thermal load of continuous high-speed operation, pharmaceutical lines where humidity control is strict but vibration from adjacent machinery is constant, and aerospace composite layup cells where the robot runs three-shift, 24/7 schedules with minimal planned downtime windows.

ABB engineered the 3HAC023854-001 to survive exactly these conditions. The sealed, low-outgassing housing prevents particulate ingress that would contaminate clean-room processes and simultaneously protects the internal resolver and drive electronics from humidity and airborne process chemicals. The PTFE-jacketed internal harness resists the thermal cycling that degrades standard PVC insulation over time — a common root cause of intermittent resolver faults on high-cycle robots.

The PFPE-based lubrication used in the rotating interfaces of the clean-room variant does not evaporate or migrate under the thermal load of continuous operation, unlike standard petroleum-based greases that thin out and migrate onto optical surfaces or contaminate pharmaceutical product streams. This is not a marketing claim — it is the reason ABB specifies a separate clean-room part number rather than simply relabeling the standard unit.

Units we dispatch from Xiamen have been stored in climate-controlled conditions and individually inspected before shipping. Refurbished units undergo a full resolver linearity check, output stage load test, and thermal soak before being cleared for dispatch. We do not ship units that have passed a visual inspection only — every unit gets electrically verified.

Global Express Logistics

Our warehouse is located in Xiamen, Fujian Province — one of China’s primary export hubs with direct DHL Express and FedEx International Priority service to major industrial centers worldwide. Here is what the logistics chain looks like from your order confirmation to your receiving dock:

• Order confirmed before 14:00 CST: Same-day dispatch. The unit leaves Xiamen that evening on the first available DHL or FedEx flight.
• Order confirmed after 14:00 CST: Next-business-day dispatch. We do not hold orders overnight without notifying you.
• Transit times (DHL Express / FedEx IP): Southeast Asia 1–2 days | Europe 3–4 days | North America 3–5 days | Middle East 2–3 days | Australia 3–4 days.
• Export documentation: Commercial invoice, packing list, and certificate of origin are prepared at dispatch. HS code 8537.10 is pre-declared for customs clearance. If your facility requires a specific HS code or additional documentation (e.g., EUR.1 for EU preferential tariff), advise us at order time.
• Tracking: AWB number provided within 2 hours of dispatch. We monitor shipments actively — if a customs hold or routing exception occurs, we contact you proactively rather than waiting for you to chase us.
• Packaging: ESD-safe anti-static bag, foam-lined rigid carton. Clean-room units are double-sealed in poly bags before boxing. The package is rated to survive the handling conditions of international air freight without damage to the unit.

For genuinely critical situations — a production line stopped with financial penalties accruing — contact us directly on WhatsApp. We can arrange same-day courier collection for orders placed outside standard business hours and coordinate with your freight forwarder if you have a preferred carrier account.
