ABB 3HAC038768-0001 Robot Cable – DSQC402

ABB 3HAC038768-0001 (DSQC402): 15-Meter Operator Panel Extension Cable for IRC5 and S4C+ Robot Controllers

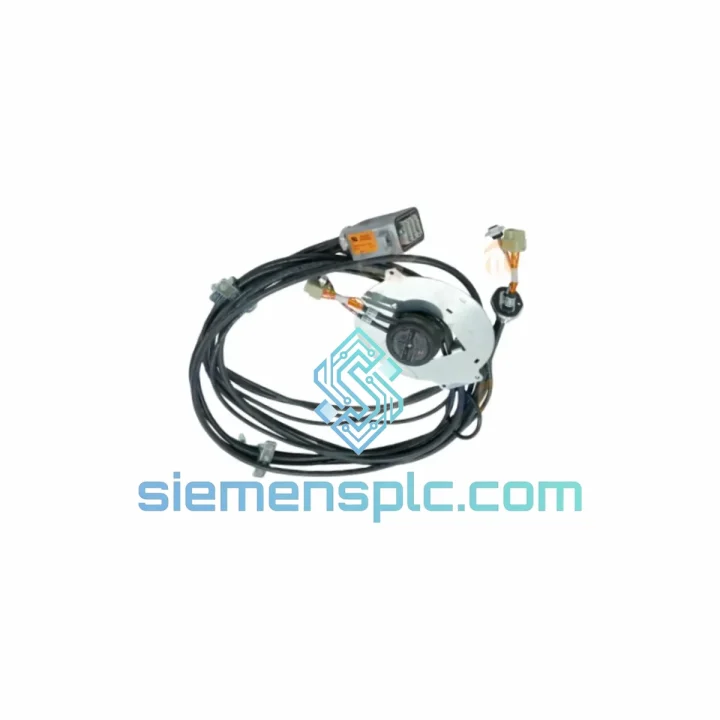

The ABB 3HAC038768-0001, commercially designated DSQC402 and cross-referenced under part numbers 3HNA014320001 and 1200SMB, is a 15-meter shielded panel extension cable engineered specifically for the ABB IRC5 and S4C+ robot controller families. Its primary function is to carry bidirectional serial communication and discrete safety signals between the operator panel assembly and the controller cabinet backplane — a signal path that is architecturally mandatory for E-stop chain integrity, teach-mode arbitration, and operator-mode selection within the ABB RobotWare safety framework.

In a standard IRC5 Single Cabinet installation, the operator panel is mounted on the cabinet door and connected via a short internal harness. When the control architecture requires remote panel mounting — common in large-footprint welding cells, press-tending lines, or multi-robot workcells where the cabinet is positioned outside the safety fence — the 3HAC038768-0001 replaces the internal harness and extends the panel interface to a distance of 15 meters without signal attenuation or protocol degradation. The cable terminates in keyed, latching connectors on both ends, conforming to ABB’s panel interface standard, which eliminates mis-mating risk during field replacement.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 3HAC038768-0001 is not a passive conductor bundle — its design reflects the specific electrical architecture of the IRC5 safety chain. The cable carries the operator panel’s mode selector switch states (Automatic, Manual Reduced Speed, Manual Full Speed) as discrete logic signals that feed directly into the IRC5 Safety Module (DSQC400 series). These signals are processed by the safety PLC within the controller before any motion command is permitted, meaning the cable’s signal integrity is a prerequisite for the controller’s functional safety classification under IEC 62061 and ISO 13849-1.

The overall foil-plus-braid shielding architecture addresses two distinct EMC threat vectors present in robot workcells: conducted interference from servo drive PWM switching (typically 4–16 kHz carrier frequencies with harmonic content extending into the MHz range) and radiated emissions from welding power sources operating at 50–60 Hz with high-frequency arc ignition transients. The drain wire is terminated at the controller-cabinet end only, creating a single-point ground reference that prevents shield current loops — a standard practice in industrial signal cable design per IEC 61000-5-2.

The keyed connector system enforces correct orientation and prevents partial insertion, which is critical because a partially seated connector on the E-stop signal lines would create an intermittent open circuit — a fault mode that is significantly harder to diagnose than a clean open or short. The latching mechanism provides a measured extraction force that prevents vibration-induced disconnection in environments with continuous mechanical agitation from robot motion and press cycles.

At 15 meters, the cable operates well within the signal propagation budget of the ABB panel interface protocol. The twisted-pair construction of the serial communication conductors within the cable maintains differential signal balance, suppressing common-mode noise pickup across the cable run. This is particularly relevant in installations where the cable must be routed through cable trays shared with 400 V AC power conductors or servo motor cables.

System Integration Benefits

• Direct OEM Compatibility: Manufactured to ABB’s exact connector and signal specifications — no adapter, no re-pinning, no firmware reconfiguration required upon installation.
• Safety Chain Continuity: Maintains the integrity of the IRC5 E-stop and mode-selection signal path, preserving the controller’s IEC 62061 SIL 2 / ISO 13849-1 PLd safety classification without requiring re-validation after cable replacement.
• Deterministic Signal Latency: Shielded twisted-pair construction keeps signal propagation delay consistent across the 15-meter run, ensuring the safety PLC receives mode-change inputs within the controller’s defined scan cycle tolerance.
• EMC Robustness in High-Interference Environments: Foil-plus-braid shield with single-point grounding suppresses both conducted and radiated interference from welding sources, servo drives, and variable-frequency drives sharing the same cable tray infrastructure.
• Reduced MTTR in Field Replacement: Keyed latching connectors allow a trained technician to replace the cable without reference to wiring diagrams, reducing mean time to repair in production-critical environments where downtime cost is measured in thousands per hour.
• Flexible Routing Capability: Oil-resistant PVC jacket and continuous-flex-rated conductors support installation in cable drag chains and conduit runs without conductor fatigue over the service life of the robot cell.
• Multi-Controller Generation Support: A single part number covers IRC5 Single Cabinet, IRC5 Compact, IRC5 Panel Mounted Controller, and S4C+ — simplifying spare parts inventory management for facilities operating mixed ABB controller generations.
• Diagnostic Transparency Preservation: Because the cable carries the panel’s status LED drive signals back from the controller, a correctly installed 3HAC038768-0001 ensures that operator panel fault indicators (motor-on, E-stop active, mode status) accurately reflect controller state — maintaining the diagnostic transparency that ABB RobotWare’s event log system depends on for remote fault analysis.

Quality Assurance & Global Logistics

Every 3HAC038768-0001 unit dispatched from our Xiamen, China facility undergoes a structured pre-shipment inspection protocol. Connector seating force and latch engagement are verified mechanically. Electrical continuity is confirmed on all signal conductors and shield drain wire. Insulation resistance between conductors and shield is measured at 500 V DC to confirm jacket integrity. Units sourced from ABB-authorized surplus channels are accompanied by original ABB packaging and labeling where available; refurbished units carry a full inspection report with before/after test data.

Packaging uses anti-static inner bags with foam-lined outer cartons sized to prevent connector damage during international transit. Export documentation — commercial invoice, packing list, and certificate of origin — is prepared for all shipments to facilitate customs clearance in the EU, North America, Southeast Asia, and the Middle East. Standard dispatch carriers are DHL Express, FedEx International Priority, and UPS Worldwide Express, with typical transit times of 3–5 business days to major industrial hubs. Air freight consolidation is available for large-volume orders requiring cost optimization. A 12-month warranty covers manufacturing defects and connector failure under normal operating conditions.
