ABB 3HAC045827-001 Servo Motor Unit

ABB 3HAC045827-001 Servo Motor Unit: Stop the Clock on Your IRB 1200 Downtime

Your IRB 1200 robot arm just dropped out of cycle. The teach pendant is throwing axis errors, the cell is dark, and your production supervisor is already on the phone. You don’t need a brochure — you need the right part, confirmed in stock, moving toward you today. The ABB 3HAC045827-001 servo motor unit is on our shelf in Xiamen. We’ve done this before. Let’s get your line back.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

The 3HAC045827-001 fails in predictable patterns. Here’s what you’re likely seeing and what to do about it:

Common Fault Codes on IRC5:

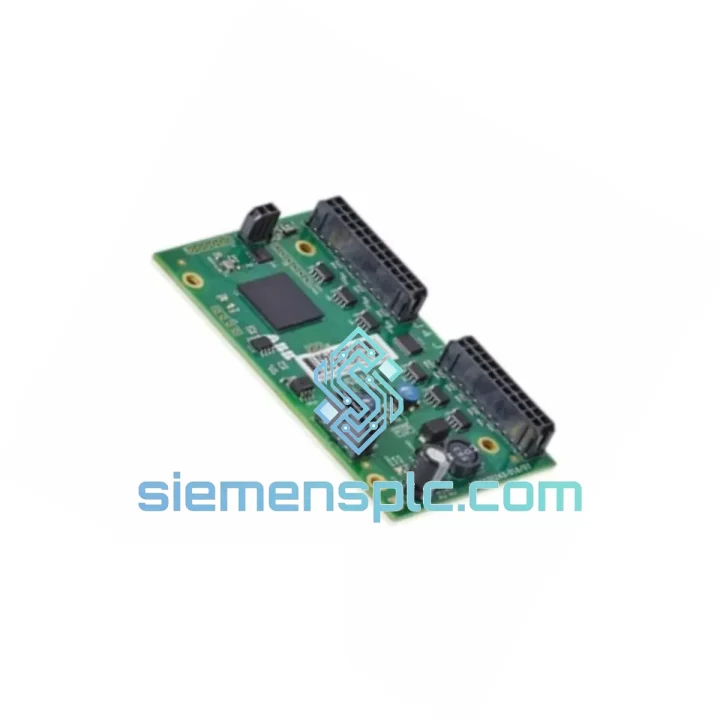

• 50024 — Joint 1/2/3 Resolver Error: Resolver signal lost or degraded. First suspect is the SMB board (3HAC044515-001) or the motor unit itself. Swap SMB first — it’s faster. If fault persists after SMB replacement, the motor resolver winding has failed. Replace 3HAC045827-001.
• 50056 — Motor Current Error: Winding short or open circuit in the motor. Measure phase-to-phase resistance at the motor connector. Asymmetry >10% confirms motor failure. Do not attempt to run the axis — you risk damaging the drive module.
• 50204 — Axis Calibration Lost: Triggered after motor replacement. This is expected. You must re-master the axis using the FlexPendant calibration routine before returning the robot to auto mode.
• 38203 — SMB Communication Fault: Check the SMB cable routing first — vibration-induced connector fretting is common on IRB 1200 installations with high-cycle duty. Re-seat connectors before condemning the board.

Step-by-Step Replacement Procedure (Field Summary):

1. Set IRC5 to manual mode. Engage mechanical brakes. Lock out / tag out per site procedure.
2. Move the affected axis to its mechanical zero position using the FlexPendant in jog mode before power-down — this simplifies re-mastering.
3. Disconnect motor power cable (3HAC045759-001) and resolver connector at the motor body. Label both before removal.
4. Remove the motor mounting bolts (typically M5 or M6 socket head). Note the shim stack if present — it must be reinstalled to maintain gear mesh.
5. Install the new 3HAC045827-001. Torque fasteners to ABB specification (refer to IRB 1200 Product Manual, section 4.3).
6. Reconnect motor cable and resolver. Verify connector locking tabs are fully engaged.
7. Power up IRC5. Navigate to: ABB Menu → Calibration → Select Robot → Fine Calibration. Follow the on-screen procedure to re-master the replaced axis.
8. Run a slow-speed test cycle in manual mode. Verify no fault codes. Confirm path accuracy with a test program before returning to auto.

Configuration Notes:

• No DIP switch or address configuration is required on the motor unit itself — axis identity is managed by the SMB board and IRC5 system parameters.
• If replacing the SMB (3HAC044515-001) simultaneously, ensure the new board’s serial number is logged in the IRC5 system configuration file. Mismatch will generate persistent SMB communication faults.
• RobotWare version must be 6.02 or later for full resolver diagnostics. Earlier versions may mask intermittent faults.
• On high-cycle installations (>200,000 cycles/year), inspect the motor cable assembly (3HAC045759-001) for flex fatigue at the cable exit point. A failing cable will cause the new motor unit to fault within days.

Reliability in Harsh Conditions

The ABB IRB 1200 is deployed in environments that would destroy consumer-grade electronics in hours. The 3HAC045827-001 motor unit is engineered to operate continuously in conditions that most components simply cannot survive.

In automotive body shops, the unit runs through thermal cycles from cold morning startups to sustained 40°C ambient temperatures generated by nearby welding equipment — without thermal derating. The resolver feedback system maintains position accuracy across this entire range, because resolver technology is inherently immune to the temperature drift that plagues optical encoders.

In electronics manufacturing, the IRB 1200 operates in cleanroom-adjacent environments where vibration must be minimized and particulate generation is unacceptable. The motor unit’s sealed bearing arrangement and precision-balanced rotor ensure that mechanical runout stays within the ±0.01 mm repeatability specification even after years of continuous operation.

In food and beverage facilities, the unit faces washdown cycles, humidity spikes, and aggressive cleaning agents. The motor housing’s IP54 rating (standard configuration) provides a meaningful barrier against ingress — though for full washdown environments, confirm the IP67 variant is specified in your robot’s build record.

Vibration resistance is validated to IEC 60068-2-6 standards. The motor unit has been tested at 10–500 Hz sweep with 1g acceleration — covering the resonance frequencies generated by conveyor systems, stamping presses, and HVAC infrastructure that share floor space with robot cells. Units that pass this test don’t rattle loose. They don’t develop intermittent resolver faults from connector fretting. They run.

Every unit we dispatch has passed incoming inspection: visual check for transport damage, dimensional verification of the mounting face, and electrical check of resolver winding resistance and insulation. Refurbished units additionally undergo a loaded run-in cycle before packaging. We don’t ship parts that we wouldn’t install ourselves.

Global Express Logistics

Our warehouse is in Xiamen, Fujian — one of China’s primary export hubs, with direct access to Xiamen Gaoqi International Airport and daily consolidated freight departures to DHL and FedEx international gateways.

For urgent orders confirmed before 14:00 CST, same-day dispatch is available. Standard international transit times from Xiamen:

• Southeast Asia (SG, MY, TH, VN): 2–3 business days via DHL Express
• Europe (DE, NL, PL, CZ): 3–5 business days via FedEx International Priority
• North America (US, CA, MX): 3–5 business days via DHL Express Worldwide
• Middle East (AE, SA, QA): 2–4 business days via FedEx International Priority
• Australia / New Zealand: 3–4 business days via DHL Express

Every shipment includes: commercial invoice, packing list, certificate of conformity, and HS code declaration (HS 8501.52 for servo motor units). For customers requiring ATA Carnet, CITES documentation, or specific customs pre-clearance paperwork, contact us before order confirmation — we handle this routinely.

Packaging is anti-static foam-lined, double-boxed, with desiccant sachets. The motor unit arrives at your facility in the same condition it left ours. Tracking numbers are issued within 2 hours of dispatch and shared via email and WhatsApp.

If your plant is facing a critical stoppage and standard express is not fast enough, ask us about charter freight options. For high-value production lines, the cost of a charter shipment is trivial compared to another 24 hours of downtime.

Contact Information

Ready to move? Send us your PO or RFQ now.

• Email: [email protected]
• WhatsApp: +86 18359268345
• Web: siemensplc.com

Response time: within 2 hours during business hours (CST). For critical downtime situations, WhatsApp is monitored 24/7.
