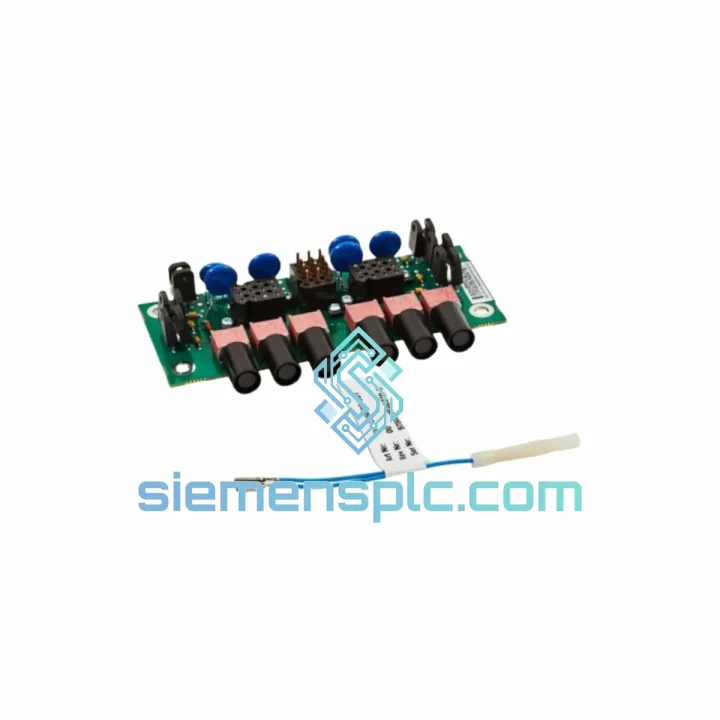

ABB 3HAC046642-001 DSQC1052 — Backup & Restore Board Set for IRC5 Robot Controllers

The ABB 3HAC046642-001 DSQC1052 is the dedicated Backup and Restore Board (BRB) assembly for the IRC5 robot controller platform. Within a multi-axis robotic cell, the IRC5 controller manages trajectory interpolation, axis synchronization, and real-time I/O arbitration across a deterministic backplane bus. The BRB occupies a structurally distinct role within this architecture: it functions as the persistent-state guardian, maintaining a hardware-isolated copy of the controller’s operational image — RAPID program stack, system parameters, calibration matrices, and I/O configuration maps — independent of the main CPU’s volatile memory hierarchy.

In production environments where robot programs represent months of commissioning effort and calibration data is tied to physical tooling geometry, the loss of this board translates directly into unrecoverable downtime. The 3HAC046642-001 set includes the DSQC1052 board and the 3HAC065021-001 assembly sub-component, forming a complete field-replaceable unit (FRU) that restores full backup and restore capability without requiring controller re-commissioning.

📩 Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The IRC5 controller’s internal architecture is organized around a high-speed backplane bus that interconnects the main computer unit (DSQC1000 / 3HAC036060-001), the axis computer, the I/O board (DSQC662), and peripheral boards including the DSQC1052. Communication across this bus follows a deterministic, time-slotted protocol — a design requirement imposed by the real-time constraints of multi-axis motion control, where jitter in state synchronization directly degrades path accuracy.

The DSQC1052 operates as a passive-active hybrid on this bus. Under normal operation, it maintains a shadow copy of the controller’s system state in onboard non-volatile flash, updated at defined checkpoint intervals triggered by the main CPU. This checkpoint architecture means the BRB does not introduce latency into the primary control loop — writes to flash are asynchronous relative to the motion execution thread. The board’s onboard controller manages write-leveling across the flash array to extend media longevity under the high-cycle-count demands of industrial operation.

From an EMC standpoint, the DSQC1052 benefits from the IRC5 cabinet’s multi-layer shielding strategy. The cabinet’s steel enclosure provides primary attenuation of radiated emissions, while the backplane itself incorporates ground plane layers that suppress conducted interference between board slots. The BRB’s flash memory interface is routed with controlled impedance traces, reducing susceptibility to high-frequency noise generated by the axis drive modules operating in the same enclosure. ABB’s IRC5 platform is certified to IEC 61000-4 series immunity standards, and the DSQC1052 is designed to operate within these validated electromagnetic margins.

The board’s restore logic implements a checksum-verified read sequence: on controller power-up, the DSQC1052 presents its stored image to the main CPU only after internal CRC validation passes. A failed CRC triggers a fault flag on the backplane status register, surfaced to the operator via the FlexPendant as a recoverable system error — preventing silent data corruption from propagating into the active control environment. This deterministic fault-surface behavior is a deliberate architectural choice, prioritizing system transparency over silent fallback.

System Integration Benefits

• Zero-Reconfig Restoration: A verified DSQC1052 replacement restores the controller to its last known-good state without requiring manual re-entry of system parameters or RAPID program re-upload, eliminating the primary source of human error during emergency maintenance.
• Deterministic Fault Surfacing: CRC-validated restore sequences ensure that any data integrity issue is flagged at power-up rather than discovered mid-production, preserving the predictability of the control loop’s initial state.
• Calibration Data Preservation: Robot kinematic calibration matrices — tied to physical tooling and fixture geometry — are retained across controller faults, avoiding the need for re-calibration procedures that can take 4–8 hours per robot axis.
• RAPID Program Stack Integrity: Multi-task RAPID programs, including background tasks and interrupt routines, are stored as a complete image, ensuring that complex multi-robot coordination logic is not partially recovered.
• Reduced MTTR in Multi-Robot Cells: In cells with 4–8 IRC5 controllers, the ability to restore each unit independently from its own BRB eliminates sequential dependency in the recovery sequence, compressing total cell restart time.
• I/O Configuration Persistence: Fieldbus node addresses, I/O signal mappings, and safety I/O configurations are preserved, preventing mis-mapping errors that can cause unsafe machine states after a controller swap.
• Backplane Bus Compatibility: The DSQC1052 is electrically and logically compatible across IRC5 cabinet variants (single, dual, panel-mounted), allowing maintenance teams to standardize on a single spare part number across mixed-variant installations.
• Non-Volatile Retention Without Battery: Unlike SRAM-backed memory solutions that require periodic battery replacement, the DSQC1052’s flash-based storage retains data indefinitely without auxiliary power, eliminating a common failure mode in long-idle standby controllers.
• Diagnostic Transparency via FlexPendant: Board status is surfaced through the IRC5’s standard diagnostic interface, allowing maintenance engineers to verify BRB health without specialized test equipment or ABB service tools.
• OEM Drop-In Replacement: Manufactured to ABB’s original hardware specification, the 3HAC046642-001 set requires no firmware modification or jumper reconfiguration for standard IRC5 installations, minimizing installation risk during time-critical maintenance windows.
