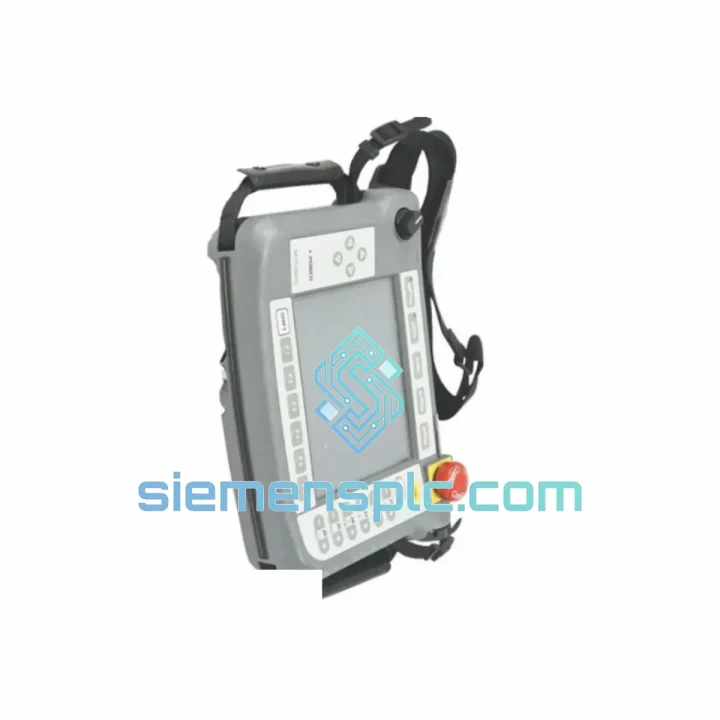

ABB 3HAC050651-001 Teach Pendant – IRC5 FlexPendant

ABB 3HAC050651-001 IRC5 FlexPendant: Operator Interface Architecture for High-Payload Robot Control

The ABB 3HAC050651-001 (cross-reference: 3HAC057544-004) is the OEM handheld operator terminal for ABB IRC5 robot controllers, purpose-built to serve as the primary human-machine interface in high-payload robotic cells. Within the IRC5 control architecture, this FlexPendant occupies the HMI layer of a three-tier hierarchy: the motion computer handles trajectory interpolation and axis torque commands, the drive unit converts digital setpoints into motor currents, and the FlexPendant provides the operator with direct, real-time visibility into all three layers simultaneously. Its role is not decorative — without a functional teach pendant, manual mode operation, program editing, I/O forcing, and safety-state acknowledgment are inaccessible to the operator on the shop floor.

The pendant connects to the IRC5 controller via a dedicated Ethernet port on the controller front panel. The embedded Linux OS runs the RobotWare FlexPendant application, which communicates with the IRC5 motion computer over a deterministic internal bus. Operator inputs — jog commands, program step execution, parameter edits — are serialized, timestamped, and transmitted to the motion computer with sub-100 ms round-trip latency under normal network load. This latency budget is sufficient for manual jog operations but is architecturally separated from the real-time motion interpolation cycle, which runs at 4 ms on the IRC5 motion computer independently of pendant state.

The 3-position enabling device (deadman switch) signal is routed through a dedicated hardware safety relay chain that is physically independent of the Ethernet data path. This separation ensures that a software fault, OS hang, or network congestion event on the pendant cannot suppress or delay the enabling device signal reaching the IRC5 safety circuit. The safety chain meets PLd, Category 3 per ISO 13849-1, which is the standard requirement for collaborative and semi-collaborative robot cell designs in automotive and heavy industry.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

Dual-Path Signal Architecture: The 3HAC050651-001 implements a strict separation between the data path and the safety path. All RAPID program commands, jog requests, and parameter writes travel over Ethernet to the IRC5 motion computer. The enabling device and E-stop signals, however, are routed through a dedicated copper safety relay loop that bypasses the Ethernet stack entirely. This means the safety chain response time is governed by relay switching physics (typically <20 ms), not by OS scheduling or network stack latency. In practice, this architecture prevents a frozen pendant OS from holding the enabling device signal in an asserted state — a failure mode that would otherwise allow unintended robot motion during a software fault.

EMC Design Considerations: The pendant enclosure is constructed with a conductive inner shell bonded to the cable shield at the RJ45 connector entry point. This provides a continuous Faraday path that attenuates radiated emissions from the internal processor board and reduces susceptibility to external RF fields common in resistance welding and induction heating environments. The cable assembly uses a foil-and-braid shield with drain wire, terminated at both ends, which suppresses common-mode noise on the Ethernet pair to levels compliant with EN 61000-4-3 (radiated immunity, 10 V/m).

Enabling Device Mechanical Design: The 3-position switch uses a spring-loaded mechanism with three discrete detent positions: released (safety open), mid-position (safety closed, motion permitted), and fully depressed (safety open — panic release). The mechanical detent force is calibrated to prevent accidental mid-position engagement from grip pressure alone, while the panic-release force threshold is set low enough for reliable actuation under stress. This mechanical specification is defined in ABB’s functional safety documentation and is not field-adjustable.

Touch Screen Calibration Stability: The resistive touch panel uses a four-wire analog resistive matrix. Calibration data is stored in non-volatile memory on the pendant processor board. Unlike capacitive panels, resistive technology maintains calibration accuracy across the full operating temperature range (0–45 °C) and is unaffected by operator glove material — a practical requirement in foundry and press-tending environments where nitrile or leather gloves are standard PPE.

System Integration Benefits

• Native RobotWare Access: The pendant provides direct access to RAPID program editing, I/O configuration, motion supervision parameters, and event log review without any third-party middleware or protocol translation layer, eliminating a common source of integration latency and version incompatibility.
• Safety State Transparency: All IRC5 safety states — motor on, motor off, emergency stop, enabling device state, and guard stop — are displayed in real time on the pendant status bar, giving operators immediate diagnostic visibility without requiring a separate safety PLC HMI.
• Deterministic Manual Jog Response: Jog commands issued via the pendant joystick are processed by the IRC5 motion computer within the 4 ms interpolation cycle. The pendant-to-controller round-trip adds <100 ms of latency, which is imperceptible during manual positioning and does not affect path accuracy in auto mode.
• MultiMove Compatibility: A single 3HAC050651-001 pendant can be used to program and operate IRC5 MultiMove systems controlling up to four coordinated robot arms, reducing spare parts inventory requirements for multi-robot cells.
• Hot-Swap Operation: The pendant can be connected and disconnected from the IRC5 controller without powering down the controller, per ABB service procedure. This reduces maintenance downtime in production environments where pendant replacement or inspection is required during a shift.
• Integrated Event Logging: The RobotWare application on the pendant provides access to the IRC5 event log, which records all system events with millisecond timestamps. This log is the primary diagnostic tool for root-cause analysis of motion faults, safety stops, and communication errors.
• Firmware Upgrade Path: Pendant firmware is updated via the IRC5 controller’s standard RobotWare software update procedure. No separate programming tool or cable is required, and the update process preserves all user-defined calibration data and program files.
• Universal IRC5 Compatibility: The 3HAC050651-001 is compatible with all IRC5 controller variants and all robot models in the ABB IRC5 ecosystem, including IRB6700, IRB8700, IRB6600, and IRB7600 series, providing a single spare part number that covers the majority of ABB robot installations.

Quality Assurance & Global Logistics

Every ABB 3HAC050651-001 unit dispatched from our Xiamen, China facility is sourced through verified supply channels and subjected to a pre-shipment inspection protocol that includes power-on functional verification, touch-screen calibration check, E-stop circuit continuity measurement, and enabling device switch actuation test across all three positions. Serial numbers and firmware versions are recorded and provided with each shipment to support ISO 9001 and IATF 16949 procurement audit requirements.

Packaging follows ABB OEM standards: anti-static bag, foam-lined carton, and moisture-barrier outer wrap for sea freight. For air freight orders, units are dispatched via DHL Express or FedEx International Priority with full tracking and commercial invoice documentation. Standard lead time from Xiamen to major industrial hubs is 3–5 business days (air) or 15–25 business days (sea). Expedited same-day dispatch is available for orders confirmed before 14:00 CST. All units carry a 12-month warranty against manufacturing defects from the date of shipment.

Our technical team in Xiamen holds direct application experience with ABB IRC5 systems across automotive, foundry, and heavy material handling installations. Pre-sales compatibility verification — including controller serial number cross-check and RobotWare version confirmation — is provided at no charge via email or WhatsApp before order placement.
