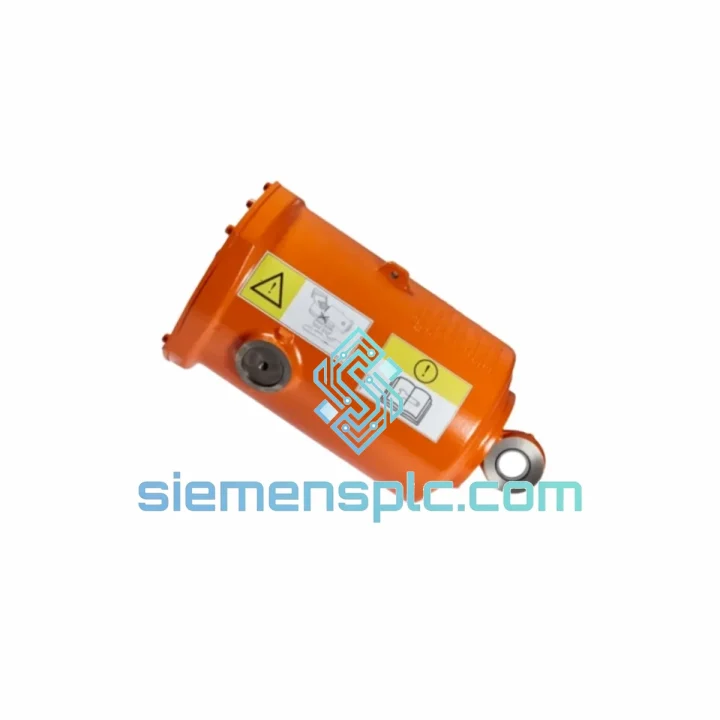

ABB 3HAC057543-004 Servo Motor

ABB 3HAC057543-004 — Servo Motor with Integrated Pinion for IRB7600 Heavy-Payload Robotic Axis Control

The ABB 3HAC057543-004 is the OEM-designated servo motor assembly with factory-integrated pinion gear, engineered specifically for axis actuation within the ABB IRB7600 heavy-payload industrial robot series. Rated for continuous-duty cycles in high-force, high-inertia environments, this unit is the authoritative replacement component for field maintenance, scheduled overhaul, and emergency repair across IRB7600 variants including the 150/3.5, 340/2.8, and 500/2.55 configurations. The integrated pinion design eliminates the field-alignment variables inherent in separate-component assemblies, reducing mean time to repair (MTTR) and ensuring repeatable gear mesh geometry on every installation.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 3HAC057543-004 operates within the IRB7600’s closed-loop axis control architecture. The servo motor receives PWM-modulated voltage commands from the ABB drive module, which resides on the IRC5 or OmniCore controller backplane. Torque output is transmitted through the factory-integrated pinion to the axis gearbox output stage, which drives the robot arm linkage. Encoder or resolver feedback is routed back to the drive module at the controller’s servo loop update rate — typically 250 µs per axis on the IRC5 platform — enabling tight velocity and position regulation even under variable inertial loads characteristic of heavy-payload pick-and-place or press-tending cycles.

EMC Design: The motor winding and feedback cable routing within the IRB7600 arm structure are shielded per ABB’s EMC design rules, with shield termination at the drive module chassis ground. This suppresses common-mode noise injection into the resolver signal lines, which would otherwise manifest as position jitter at low speeds — a critical concern in precision welding path tracking.

Integrated Pinion Geometry: The pinion is press-fitted and locked to the motor shaft under controlled factory conditions, with gear mesh backlash held to ABB’s internal tolerance specification. Field-assembled pinion-to-shaft joints are susceptible to fretting corrosion and micro-slip under reversing torque loads; the factory-integrated design eliminates this failure mode entirely. During installation, the pinion meshes with the axis gearbox input gear under the preload specified in ABB maintenance manual 3HAC028284-001, restoring the original backlash budget of the axis transmission.

Thermal Management: The motor’s stator winding is wound with high-temperature insulation rated to Class F (155 °C), providing thermal headroom above the continuous operating point in standard industrial ambient conditions. The motor housing is designed for conductive heat transfer to the robot arm casting, which acts as a passive heat sink. In foundry-variant IRB7600 configurations, additional thermal interface material is specified between the motor flange and the arm casting to maintain junction temperatures within the rated envelope during sustained high-duty-cycle operation.

Redundancy and Fault Detection: The IRC5 and OmniCore platforms implement axis-level fault monitoring via the drive module’s current and position feedback loops. An open-circuit or short-circuit condition in the motor winding is detected within one servo cycle and triggers an E-stop with axis fault logging. The resolver’s dual-winding architecture provides inherent signal redundancy — a single winding failure degrades signal quality in a detectable manner rather than causing silent position error, enabling predictive maintenance scheduling before a hard fault occurs.

System Integration Benefits

• Direct OEM Drop-In Replacement: The 3HAC057543-004 matches the original mounting flange, shaft diameter, connector pinout, and encoder protocol of the factory-installed unit, eliminating any need for mechanical adaptation or software parameter changes in the drive module.
• Reduced Installation Time: The pre-assembled pinion removes the field alignment step required when sourcing motor and pinion separately, cutting axis replacement time by an estimated 30–45 minutes per axis in a typical maintenance scenario.
• Preserved Positioning Accuracy: Factory pinion integration maintains the gear mesh geometry within ABB’s backlash specification, ensuring the robot’s TCP (Tool Center Point) accuracy is restored to the original ±0.05 mm repeatability class after replacement.
• Deterministic Servo Loop Performance: Compatibility with the IRC5 and OmniCore drive modules ensures the axis servo loop operates at the designed 250 µs update rate without parameter re-tuning, preserving path accuracy and cycle time.
• Diagnostic Transparency: The resolver feedback interface is fully compatible with ABB’s RobotStudio diagnostic tools and the IRC5 FlexPendant axis monitoring screens, enabling real-time velocity, position, and current monitoring without additional instrumentation.
• Extended Service Life: OEM-grade winding insulation and bearing specification match the original design life targets, avoiding the premature failure modes associated with non-OEM substitute motors operating outside the original thermal and mechanical envelope.
• Supply Chain Traceability: Each unit is dispatched with batch and serial documentation, supporting ISO 9001 maintenance record requirements and enabling root-cause analysis in the event of a field failure.
• Broad Variant Coverage: The 3HAC057543-004 is applicable across multiple IRB7600 payload and reach variants. Confirm axis number and robot variant against ABB’s spare parts catalog (SEROP) prior to ordering to ensure correct axis-specific pinion ratio selection.
• Minimized Unplanned Downtime: In-stock availability from Xiamen, China, with express international logistics options, supports rapid response to unplanned axis failures in production environments where downtime cost per hour is significant.

Quality Assurance & Global Logistics

Every ABB 3HAC057543-004 unit dispatched from our Xiamen, China facility undergoes a structured incoming inspection protocol: visual examination for transport damage, dimensional verification of the pinion gear and motor flange, connector integrity check, and — for refurbished units — a functional run-in test with encoder signal verification. ABB holographic part markings and batch labels are authenticated prior to acceptance into stock, providing a documented counterfeit-risk mitigation step that is particularly relevant in the global industrial spare parts market.

Packaging is ESD-safe and moisture-barrier sealed, with the motor shaft and pinion protected by end caps to prevent transit damage to the gear teeth and bearing preload. Units are stored in a controlled-humidity warehouse environment to prevent corrosion of the resolver winding and bearing races during storage.

International logistics from Xiamen are executed via DHL Express, FedEx International Priority, and UCP air freight, with typical transit times of 3–5 business days to Europe, North America, Southeast Asia, and the Middle East. Export documentation — including commercial invoice, packing list, and certificate of origin — is prepared to facilitate customs clearance in major import jurisdictions. HS Code 8501.52 (AC motors, multi-phase, 750 W–75 kW) applies to this product category for customs classification purposes.

A 12-month warranty is provided from the date of dispatch, covering manufacturing defects and premature failure under normal operating conditions as defined in ABB’s IRB7600 maintenance documentation. Warranty claims are processed with return merchandise authorization (RMA) and failure analysis reporting.
