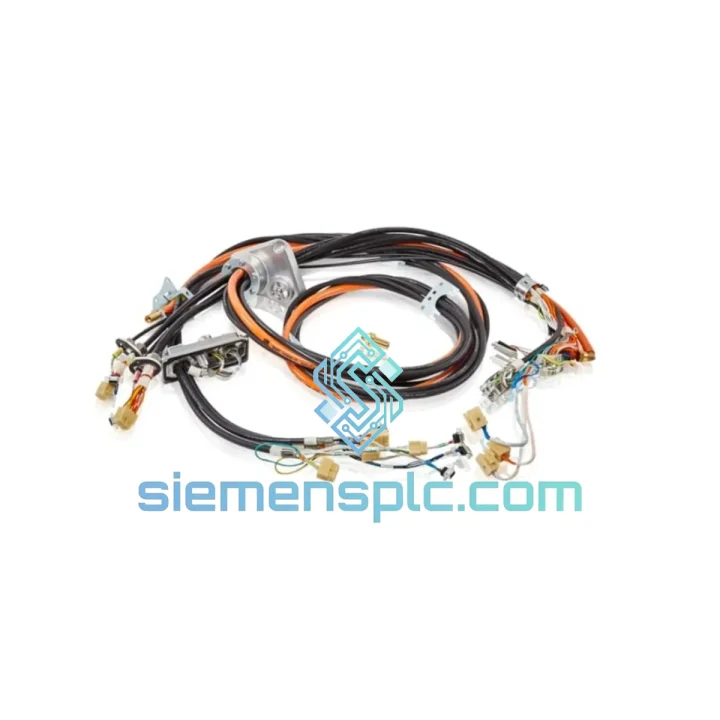

ABB 3HAC069651-001 Robot Cable Harness

ABB 3HAC069651-001 Basic Cable Harness — Every Hour of Downtime Costs You Money. We Ship Today.

Your IRB 4600-1/63 is down. The arm won’t move. The controller throws axis faults. You’ve traced it to the lower-arm cable harness — frayed conductors, a sheared connector, or resolver signal dropout after years of repetitive flexing. You need 3HAC069651-001 on-site, fast, with zero compatibility surprises. That’s exactly what this listing is for.

We stock the ABB 3HAC069651-001 Basic Cable Harness in Xiamen, China, and dispatch same-day or next business day via DHL Express or FedEx International Priority. From our warehouse to your production floor — typically 2–5 business days, anywhere in the world. While your competitors are still waiting on OEM lead times measured in weeks, your robot is back online.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Common fault signatures that point to 3HAC069651-001 failure:

• Error 50024 / 50025 — Joint 2 or Joint 3 resolver fault: Intermittent or persistent resolver signal loss is the #1 indicator of harness degradation. The resolver feedback conductors inside the lower-arm harness are the first to fatigue under high-cycle flexing. If calibration fails repeatedly after clearing, replace the harness before chasing the drive unit.
• Error 38203 — Motor current deviation: A partially shorted or open-circuit motor power conductor causes the drive to detect current imbalance. Megger the motor phases at the harness connector before condemning the motor itself.
• Brake release failure on Axis 2/3: Brake control lines run through this harness. If the axis holds under gravity load but won’t release on command, check continuity on the brake circuit pins before assuming a brake unit fault.
• Intermittent E-stop or SafeMove faults during motion: Chafed shielding on I/O conductors can inject noise into the safety circuit. This is often misdiagnosed as a controller issue — inspect the harness routing at clamp points first.

Replacement procedure — field notes:

1. Power down the IRC5 cabinet and engage the manual brake release tool on axes 2 and 3 before any mechanical work. Never trust gravity-loaded axes without mechanical support.
2. Photograph the existing harness routing and all clamp positions before removal. ABB’s routing path through the lower arm casting is specific — incorrect re-routing causes premature fatigue failure on the new harness.
3. Label all connectors before disconnection. The motor power and resolver connectors for axes 2 and 3 are physically similar — a swap here causes immediate drive faults and potential motor damage on first motion.
4. Inspect the cable entry gland and lower arm casting for burrs or sharp edges that caused the original failure. Dress any sharp edges before installing the new harness.
5. After installation, perform a full resolver calibration sequence via RobotStudio or the FlexPendant before running any motion programs. Do not skip this step — uncalibrated resolvers will cause path deviation and potential collision.
6. Run the robot through its full working envelope at 10% speed for the first 15 minutes. Monitor for any fault recurrence before returning to production speed.

Configuration note: The 3HAC069651-001 is a direct plug-and-play replacement for 3HAC043964-001. No firmware changes, no parameter adjustments, no DIP switch configuration required. The harness carries no embedded intelligence — it is a passive wiring assembly. Resolver calibration is the only mandatory post-installation step.

Reliability in Harsh Conditions

The IRB 4600-1/63 is deployed in some of the most demanding industrial environments on the planet — automotive body shops with weld spatter and coolant mist, foundry environments with thermal cycling from 5°C to 55°C ambient, and high-humidity coastal manufacturing facilities. The OEM cable harness specification for this platform reflects those realities.

Conductor insulation is rated for continuous flexing at the bend radii defined by ABB’s cable management geometry. Connector housings are keyed and latched to resist vibration-induced disconnection — a critical design requirement in welding cells where the robot base itself transmits significant mechanical shock. Shielding coverage on signal conductors meets the EMI rejection requirements of the IRC5 drive architecture, which is particularly sensitive to noise on resolver feedback lines.

Units supplied from our stock are stored in climate-controlled conditions, individually packaged in anti-static bags within foam-lined cartons. Connector pins are inspected for oxidation and mechanical damage prior to dispatch. We do not ship units that show any evidence of improper storage, connector damage, or insulation compromise — a degraded harness that fails on installation is worse than no harness at all.

Global Express Logistics

Our dispatch hub is located in Xiamen, Fujian Province, China — a major international freight gateway with direct DHL and FedEx hub connections. This is not a drop-ship arrangement. Stock is physically on our shelves, inspected, and ready to pack.

Typical transit times from Xiamen:

• Southeast Asia (Thailand, Vietnam, Malaysia, Indonesia): 2–3 business days via DHL Express
• East Asia (Japan, South Korea, Taiwan): 2–3 business days
• Europe (Germany, France, Italy, Poland, Czech Republic): 3–5 business days via FedEx International Priority
• North America (USA, Canada, Mexico): 3–5 business days
• Middle East (UAE, Saudi Arabia, Qatar): 3–4 business days
• Australia / New Zealand: 3–5 business days

Orders confirmed before 14:00 CST are processed for same-day dispatch. You receive a tracking number within 2 hours of shipment. All shipments are fully insured. Commercial invoice and packing list are provided for customs clearance — we have experience with import documentation requirements across all major industrial markets and can assist with HS code declarations and certificate of origin if required by your customs authority.

For time-critical situations where standard express is not fast enough, contact us directly. We have access to charter freight and hand-carry courier options for genuine production emergencies.
