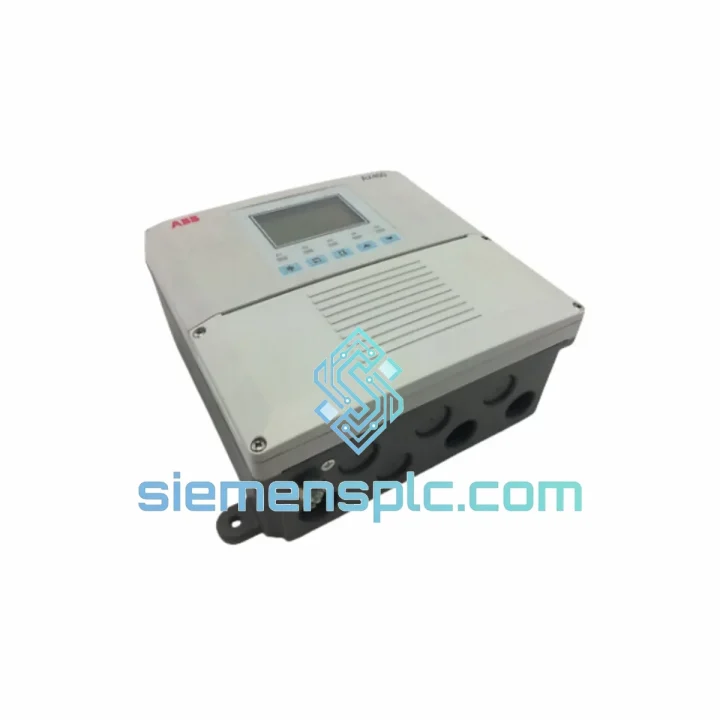

ABB AX460/10001 Conductivity Transmitter

ABB AX460/10001 — Line Down? This Unit Ships Today. Every Hour of Delay Costs You.

Your conductivity loop is dead. The batch is on hold. Maintenance is on the phone. You’ve already pulled the failed transmitter and confirmed it’s the AX460/10001 — a 4-wire line-powered unit from ABB’s AX400 Series. You don’t need a sales pitch. You need the part, verified, boxed, and moving toward your facility before end of business.

We stock the ABB AX460/10001 in Xiamen. Not on order. Not inbound. In hand. Our logistics team runs DHL Express and FedEx International Priority daily. If your inquiry lands before 16:00 CST, there is a realistic path to same-day dispatch. That’s the difference between a 48-hour recovery and a week-long shutdown waiting on a factory lead time.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Ten years of field work teaches you that most AX460/10001 failures fall into three categories. Knowing which one you’re dealing with before you pull the unit saves you from replacing a transmitter when the real fault is upstream.

Fault Code E01 / E02 — Sensor Open Circuit or Short: Before condemning the transmitter, disconnect the sensor cable at the transmitter terminal block and measure sensor resistance directly. A reading outside the expected range (typically 0–2 kΩ for contacting sensors) points to a failed sensor or damaged cable, not the AX460/10001 itself. If resistance checks out and the fault persists with a known-good sensor connected, the transmitter’s input circuit is the likely culprit.

4–20 mA Output Frozen or Pegged at 3.6 mA / 22 mA: The AX460 uses NAMUR NE43-compliant fault signaling. A 3.6 mA output indicates a low-alarm fault state; 22 mA indicates a high-alarm or hardware fault. Check the alarm log via the front panel menu (Menu → Diagnostics → Alarm History). If the log shows repeated sensor errors with no corresponding process event, suspect moisture ingress at the sensor junction box — a common failure mode in washdown environments.

Display Blank, Unit Unresponsive: Verify AC supply voltage at the terminal block under load. The AX460/10001 draws approximately 8 VA. A supply rail that reads 230 V unloaded but collapses under load indicates a failing power supply upstream, not a dead transmitter. If supply is confirmed stable and the unit remains dark, the internal power supply board has failed — replacement of the transmitter is the correct action.

Replacement Configuration Checklist — Do Not Skip These:

• Cell Constant Entry: The AX460/10001 requires manual entry of the connected sensor’s cell constant (K value, typically 0.1, 1.0, or 10.0 cm⁻¹). This is not auto-detected. Navigate to Menu → Sensor Setup → Cell Constant and enter the value from the sensor nameplate. Failure to do this will result in readings that are off by an order of magnitude.
• Temperature Compensation Mode: Confirm whether your process uses linear (% per °C) or non-linear (natural water, USP) compensation. The default factory setting is linear at 2.0%/°C. If your application is pharmaceutical or ultra-pure water, switch to the appropriate USP or high-purity mode.
• 4–20 mA Range Scaling: The output range is configurable. Verify the span matches your DCS/PLC input card expectation. A mismatch here will cause the control system to read incorrect values even though the transmitter is functioning correctly.
• HART Address: If your asset management system uses HART polling, confirm the HART address (default: 0 for point-to-point). Multidrop configurations require unique addresses per device.
• Alarm Relay Setpoints: Relay outputs do not retain setpoints from the failed unit. Re-enter high and low conductivity alarm thresholds from your process documentation before returning the loop to service.

Reliability in Harsh Conditions

The AX460/10001 was not designed for a climate-controlled instrument room. It was built for the places where instruments actually fail — outdoor chemical dosing skids in tropical humidity, boiler houses running at 45°C ambient, coastal desalination plants where salt-laden air attacks every terminal connection.

The IP65 / NEMA 4X enclosure is not a marketing claim. It is a tested rating that means the housing withstands sustained water jets from any direction without ingress. In practice, this translates to survival through high-pressure CIP washdowns in food and beverage plants and monsoon-season outdoor installations in Southeast Asian process facilities.

The front panel membrane keypad is sealed against the enclosure — there are no mechanical switches to corrode or stick. The LCD operates across the full 0–55°C ambient range without heater assistance. Internal conformal coating on the PCB provides an additional barrier against condensation in environments where temperature cycling causes repeated dew point crossings.

Vibration tolerance is sufficient for installation on pump skids and compressor packages where structure-borne vibration is a constant. Units installed adjacent to large centrifugal pumps in water treatment facilities routinely achieve multi-year service intervals without calibration drift attributable to mechanical stress.

The terminal block design uses cage-clamp connections rather than screw terminals. This matters in high-vibration environments where screw terminals work loose over time, introducing intermittent faults that are notoriously difficult to diagnose. Cage-clamp connections maintain consistent contact force regardless of vibration amplitude.

Global Express Logistics

Our dispatch operation runs out of Xiamen, Fujian — one of China’s primary export hubs with direct access to Xiamen Gaoqi International Airport and Xiamen Port. This geography is not accidental. It gives us access to daily DHL Express and FedEx International Priority freighter capacity to virtually every industrial region on the planet.

Standard Express Timeline (DHL / FedEx IP):

• Southeast Asia (Singapore, Thailand, Indonesia, Vietnam): 2–3 business days
• Middle East (UAE, Saudi Arabia, Qatar, Kuwait): 3–4 business days
• Europe (Germany, Netherlands, UK, Poland, Italy): 3–5 business days
• North America (USA, Canada, Mexico): 4–5 business days
• South America (Brazil, Chile, Colombia): 5–7 business days
• Australia / New Zealand: 3–4 business days

Every shipment includes a commercial invoice, packing list, and certificate of origin. For customers requiring import clearance support, we provide HS code documentation and can coordinate with your customs broker directly. Dangerous goods declarations are not required for this product category.

For genuine emergency situations — plant shutdowns, safety system failures, regulatory deadline pressure — contact us via WhatsApp for real-time coordination. We have arranged same-day airport pickup and hand-carry courier arrangements for critical situations where standard express timelines are not acceptable.

All shipments are fully insured. Tracking numbers are provided within 2 hours of dispatch. Our logistics team monitors shipments proactively and flags any customs holds or routing exceptions before they become delivery failures.
