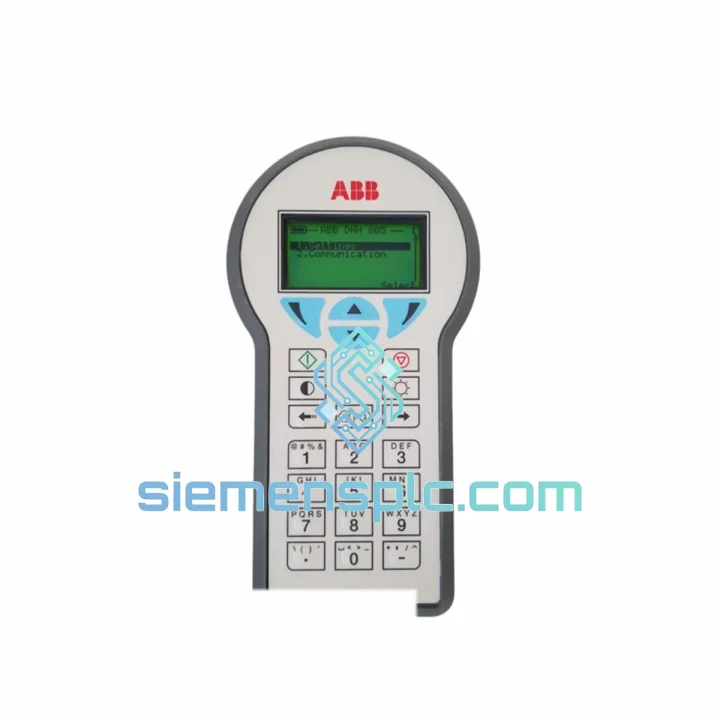

ABB DHH805A Handheld HART Communicator – DHH800 Series

ABB DHH805A — Handheld HART Communicator for Precision Field Device Configuration

The ABB DHH805A is a professional-grade handheld communicator designed for direct, on-loop interaction with HART-enabled field instruments across process industries. Operating on the HART (Highway Addressable Remote Transducer) protocol — the most widely deployed digital field communication standard with an installed base exceeding 40 million devices globally — the DHH805A provides instrumentation engineers and maintenance technicians with a portable, standards-compliant interface to configure, calibrate, and diagnose any HART-compatible transmitter, positioner, or analyzer without removing the device from service or interrupting the live 4–20 mA process signal.

Within ABB’s DHH800 product family, the DHH805A occupies the professional service tier. Its architecture is built around a HART modem core that superimposes FSK (Frequency Shift Keying) digital signals at 1200 Hz and 2200 Hz onto the existing analog current loop — a technique that allows simultaneous analog and digital communication with zero impact on the primary process variable. This on-loop, non-intrusive access model is the defining operational advantage of HART technology, and the DHH805A implements it with the robustness required for continuous field deployment in petrochemical, power generation, and heavy industrial environments.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The DHH805A’s hardware architecture centers on a dedicated HART modem IC that handles the full FSK modulation/demodulation cycle independently of the host processor. This separation of communication logic from application processing ensures that HART signal integrity is maintained even when the device is executing complex DD-driven menu trees or performing multi-parameter reads. The modem operates within the HART physical layer specification: it detects and decodes FSK signals riding on DC loop currents between 4 mA and 20 mA, with the FSK amplitude constrained to ±0.5 mA peak — well within the tolerance band that prevents any measurable perturbation of the analog process variable at the DCS input card.

From an EMC standpoint, the DHH805A’s analog front-end incorporates bandpass filtering tuned to the 1200/2200 Hz HART carrier frequencies. This filtering architecture rejects common-mode noise from variable-frequency drives (VFDs), switching power supplies, and high-voltage bus bars — noise sources that are endemic in the industrial environments where HART communicators are most frequently deployed. The result is reliable digital communication in electrical environments that would corrupt unfiltered FSK receivers.

The Device Description engine embedded in the DHH805A firmware interprets manufacturer-supplied DD files — binary descriptors that map a specific field device’s parameter structure, engineering unit conversions, and menu hierarchy into a standardized display format. This means the DHH805A presents device-specific parameter names, valid ranges, and enumeration labels exactly as the manufacturer defined them, eliminating the ambiguity that arises when generic communicators display raw hexadecimal register values. For multi-vendor sites with instruments from ABB, Emerson Rosemount, Honeywell, Yokogawa, and Endress+Hauser coexisting on the same process unit, this DD-driven approach is the only practical path to consistent, error-free field configuration.

The keypad and display subsystem is designed for gloved-hand operation — a non-trivial ergonomic requirement in environments where chemical-resistant or cryogenic gloves are mandatory PPE. Key travel and tactile feedback are calibrated to register intentional presses while rejecting incidental contact, reducing mis-configuration risk during high-stakes calibration tasks.

System Integration Benefits

• Zero-downtime loop access: The DHH805A connects in parallel across the 4–20 mA loop without breaking the circuit. The live process signal continues uninterrupted at the DCS/PLC input card while HART communication proceeds on the same pair of conductors.
• Universal multi-vendor compatibility: HART Rev. 5/6/7 support covers the full spectrum of installed field devices regardless of manufacturer. A single DHH805A replaces the need for brand-specific configuration tools across a mixed-vendor instrument fleet.
• DD-driven parameter accuracy: Device Description files ensure that parameter names, engineering units, and valid ranges are displayed exactly as specified by the device manufacturer — eliminating interpretation errors that occur with generic register-level access.
• Diagnostic transparency: HART Command 48 (Read Additional Device Status) and extended device status commands expose internal device health flags — sensor degradation, electronics temperature exceedance, configuration mismatch — that are invisible to the analog 4–20 mA signal alone. The DHH805A surfaces these diagnostics in plain-language format.
• Commissioning efficiency: Tag assignment, range configuration, damping adjustment, and output trim can all be executed from the DHH805A at the field instrument location, eliminating the round-trip communication delay between field and control room that characterizes DCS-based configuration workflows.
• SIS verification support: For Safety Instrumented System (SIS) applications, the DHH805A enables partial stroke testing commands and proof-test parameter reads on HART-capable safety transmitters and valve positioners — supporting IEC 61511 proof-test documentation requirements.
• Reduced calibration infrastructure cost: A single DHH805A covers the full instrument lifecycle — commissioning, routine calibration verification, fault diagnosis, and decommissioning — across all HART device types. This consolidates the toolset required by field service teams and reduces per-instrument calibration cost.
• Portable form factor for remote assets: At 320 g, the DHH805A is carried comfortably to remote field locations — wellheads, pipeline metering stations, offshore platforms — where fixed calibration infrastructure is absent and instrument access requires physical travel to the device location.

Quality Assurance & Global Logistics

Every ABB DHH805A unit supplied by siemensplc.com is sourced through verified channels — authorized ABB distributors, OEM factory overstock, and documented industrial decommissioning projects with full traceability records. Units are not accepted from unverified grey-market sources. Before dispatch, each unit undergoes a structured inspection protocol: physical housing and connector integrity check, display and keypad functional verification, HART communication loop test against a reference HART device, and label authenticity confirmation against ABB’s published part number and serial number formats.

Logistics operations are managed from Xiamen, China — a major export hub with direct access to international express carriers including DHL Express, FedEx International Priority, and UPS Worldwide Expedited, as well as consolidated freight forwarding services for larger shipments. Standard export documentation — commercial invoice, packing list, certificate of origin — is prepared for every shipment. HS code classification and customs value declaration are handled in compliance with the destination country’s import regulations. Typical transit times to major industrial hubs: Southeast Asia 2–4 business days, Europe 3–5 business days, North America 4–6 business days via express courier.

All units are covered by a 12-month warranty from the date of shipment, covering manufacturing defects and functional failures under normal operating conditions. Warranty claims are processed with a target response time of 1 business day.
