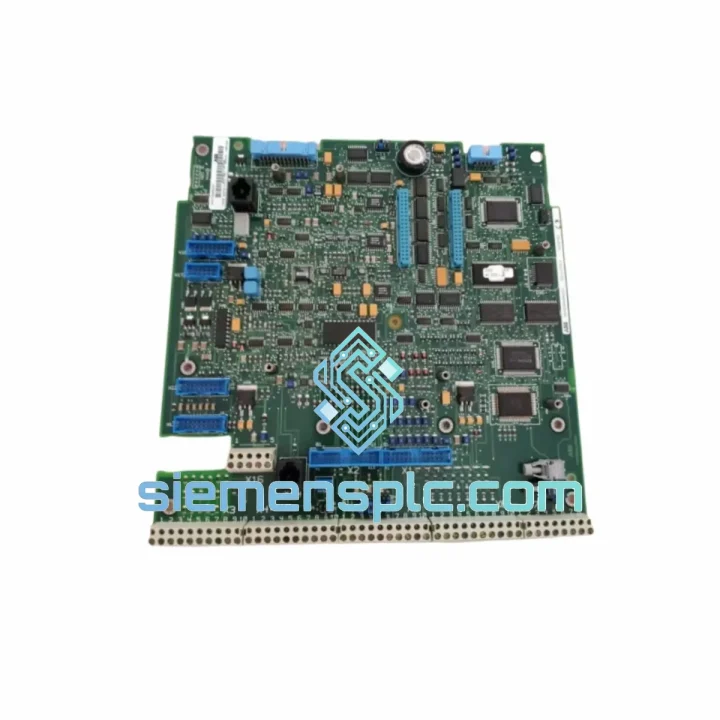

ABB DSAO110 57120001-AT/2 Analog Output Module – ADVANT AC 450

ABB DSAO110 57120001-AT/2 — 4-Channel Analog Output Module for ADVANT AC 450 Distributed Control Systems

The ABB DSAO110 (Part No. 57120001-AT/2) is a precision 4-channel analog output I/O module engineered for deployment within the ABB ADVANT AC 450 Distributed Control System platform. Operating on the S100 I/O backplane bus, this module translates digital setpoint data from the controller processor into calibrated field-level analog signals — 4–20 mA current loops or 0–10 V voltage outputs — that drive final control elements including modulating control valves, variable-frequency drives, electro-pneumatic positioners, and proportional hydraulic actuators.

In a closed-loop process control architecture, the analog output module occupies the terminal position of the control chain: it receives a computed manipulated variable (MV) from the PID execution engine in the AC 450 CPU, converts it through a 12-bit digital-to-analog converter (DAC), and transmits a proportional field signal with a resolution of approximately 0.024% of full scale per LSB. This level of output resolution is sufficient for tight regulatory control in applications such as boiler feedwater flow, distillation column reflux ratio, and compressor anti-surge valve positioning.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The DSAO110 is built around a dedicated 12-bit DAC per output channel, each driven by an isolated data latch that holds the last valid setpoint value written by the S100 bus master. This latch-and-hold architecture is significant: in the event of a bus communication interruption, the output does not collapse to zero or rail to full scale — it holds the last commanded value, preventing uncontrolled process upsets during transient communication faults. This behavior is configurable via the AC 450 engineering tool (AMPL/AMOS) to either hold-last-value or drive to a defined safe-state output, depending on the process safety requirement.

Each channel’s analog output stage is galvanically isolated from the S100 backplane bus using DC/DC converter isolation and optocoupler-based signal transfer. This two-barrier isolation topology serves a dual purpose: it eliminates ground loop currents that would otherwise corrupt the 4–20 mA signal in field wiring runs exceeding 200 m, and it protects the backplane bus from field-side transient overvoltages — a common failure mode in plants where field cables share conduit with power wiring.

The current output driver circuit is a precision voltage-to-current (V/I) converter with active feedback. The feedback loop continuously monitors the actual output current via a sense resistor and corrects for load impedance variations within the 0–600 Ω compliance range. This closed-loop current regulation maintains output accuracy to ±0.1% of full scale across the full load range, independent of cable resistance changes caused by temperature variation in long field runs.

From an EMC design standpoint, the module PCB employs a multi-layer stackup with dedicated ground planes separating the digital logic layer from the analog output layer. Ferrite bead filters are placed on all field terminal connections to attenuate high-frequency conducted interference (IEC 61000-4-6, 10 V/m). The module housing provides shielding continuity to the subrack chassis ground, contributing to the system-level EMC performance required in environments with variable-frequency drives and high-power switchgear in proximity.

System Integration Benefits

• Direct S100 Bus Compatibility: The DSAO110 plugs directly into any S100 I/O subrack slot without adapter hardware, maintaining full backward compatibility with AC 410, AC 450, and AC 460 controller platforms that share the S100 bus architecture.
• Deterministic Output Update: Output values are refreshed synchronously with the AC 450 controller scan cycle. There is no asynchronous buffering delay between the CPU’s computed MV and the field signal — the output latency is bounded and predictable, which is essential for fast-response control loops such as compressor anti-surge.
• Hold-Last-Value Fault Behavior: On bus communication loss, each channel independently holds its last valid output value, preventing process disturbances during transient faults and allowing the process to remain in a controlled state while diagnostics are performed.
• Per-Channel Diagnostic Transparency: The module reports channel-level status back to the AC 450 controller, including open-circuit detection on current output channels. This diagnostic data is accessible in the AMOS/AMPL engineering environment and can be mapped to operator alarm displays without additional hardware.
• Configurable Output Range: Each channel can be independently configured for 4–20 mA or 0–10 V output via hardware jumpers and software parameterization, allowing a single module type to serve both current-loop and voltage-reference applications within the same subrack.
• Galvanic Isolation Reduces Commissioning Risk: The channel-to-bus isolation eliminates the need for external signal isolators on most field loops, reducing panel wiring complexity, component count, and potential failure points in the marshalling cabinet.
• Compact 4-Channel Density: Four independent output channels in a single-width subrack slot maximizes I/O density. For a 19-inch subrack with 12 slots, up to 48 analog output channels can be accommodated — reducing cabinet footprint and associated installation costs.
• Long-Term Spare Parts Availability: The ADVANT S100 I/O hardware platform has an extensive global installed base across power generation, oil & gas, and chemical industries. Replacement modules remain available through specialist distributors, supporting plant asset life extension programs without requiring full DCS migration.

Quality Assurance & Global Logistics

Every ABB DSAO110 unit dispatched from our Xiamen, China facility undergoes a structured pre-shipment verification protocol. Physical inspection covers PCB condition, connector pin integrity, label authenticity against ABB factory markings, and firmware revision identification. Where test equipment permits, a functional power-on verification confirms that the module initializes correctly and that all four output channels respond to commanded values within specification.

Units are packaged in anti-static shielding bags with desiccant and humidity indicator cards, placed in foam-lined cartons rated for international air freight handling. Export documentation — commercial invoice, packing list, HS code declaration (HS 8537.10), and certificate of origin — is prepared for every shipment to facilitate customs clearance in the destination country.

Shipping is available via DHL Express, FedEx International Priority, and UPS Worldwide Expedited. Transit times to Europe and North America are typically 3–5 business days from dispatch. For urgent plant shutdown requirements, same-day dispatch is available for in-stock units when orders are confirmed before 14:00 CST. All units are covered by a 12-month warranty against defects in materials and workmanship from the date of shipment.
