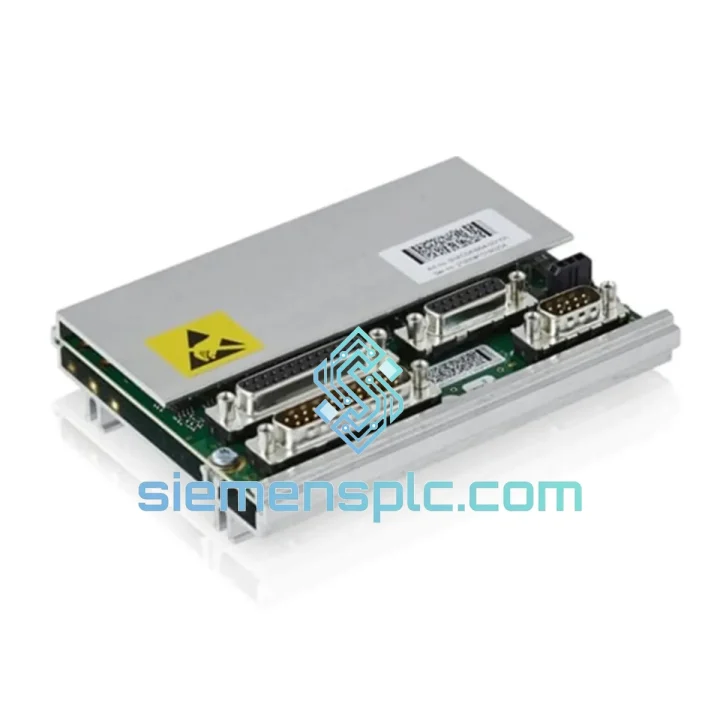

ABB DSQC633 3HAC022286-001 Serial Measurement Unit

ABB DSQC633 3HAC022286-001 — Stop the Clock on Your IRC5 Downtime

Every minute an IRC5 robot sits idle costs real money. A failed Serial Measurement Unit (SMU) is one of the most common single-point failures that takes an entire robot cell offline — and sourcing a genuine replacement through standard channels can mean days or weeks of waiting. We stock the ABB DSQC633 (3HAC022286-001) and ship same-day from Xiamen. That’s the difference between a four-hour recovery and a four-day production loss.

The DSQC633 is the dedicated SMU board inside the IRC5 controller cabinet. It decodes the serial data stream from the Serial Measurement Box (SMB) mounted on the manipulator arm, conditions resolver signals from all six axes, and feeds clean position data to the axis computer. When it fails, the robot stops — no negotiation. Fault codes 50056 (SMB communication error), 50057 (resolver signal lost), and 50058 (joint position feedback fault) on the FlexPendant almost always trace back to this board. We’ve seen it hundreds of times in the field.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Identifying a failed DSQC633: The three fault codes that point directly at this board are 50056 (SMB communication timeout), 50057 (resolver signal absent on one or more axes), and 50058 (position feedback deviation exceeds threshold). If you see any of these on the FlexPendant and the SMB cable (3HAC031683-001) checks out clean at both connectors, the DSQC633 is your culprit. Don’t waste time reflashing firmware or reseating cables — swap the board.

Step-by-step replacement procedure:

1. Power down the IRC5 cabinet via the main disconnect. Wait 60 seconds for capacitors to discharge — the drive section holds voltage longer than most technicians expect.
2. Open the cabinet door and locate the DSQC633 in the computer unit bay. It is typically the board with the SMB cable connector (blue, 10-pin) on the left edge.
3. Photograph the cable routing before disconnecting anything. The SMB cable and the internal ribbon to the axis computer must return to exactly the same positions.
4. Release the board retention clips, slide the DSQC633 out of its guide rails, and set it aside in an ESD bag.
5. Seat the replacement DSQC633 firmly until both retention clips engage. No DIP switches or address jumpers need to be set — the board auto-addresses on the SMB bus at power-up.
6. Reconnect the SMB cable and internal ribbon. Verify connector locks are fully seated.
7. Power up the cabinet. The IRC5 will perform a self-test sequence. Expect a revolution counter update warning on the FlexPendant — this is normal after any SMU replacement.
8. Perform a full revolution counter update for all axes per ABB procedure (FlexPendant → Calibration → Update Revolution Counters). Do not skip this step. Running production without updated revolution counters risks axis collision.
9. Run a slow-speed test cycle through the full working envelope before resuming normal production speed.

Firmware note: The DSQC633 does not carry user-flashable firmware. RobotWare version compatibility is determined by the axis computer (DSQC668 / DSQC656), not the SMU. A DSQC633 from any production batch will work with RobotWare 5.x and 6.x without modification.

Common misdiagnosis: Intermittent 50056 faults that clear on reboot but return within hours often indicate a failing SMB cable rather than the DSQC633 itself. Before ordering, flex the SMB cable along its full length while monitoring the fault log. A cable fault will show up as position-dependent — a board fault will not.

Reliability in Harsh Conditions

The DSQC633 was engineered for continuous industrial duty, not office environments. ABB designed the board to operate inside IRC5 cabinets that routinely see ambient temperatures pushing 50 °C in summer foundry and press-shop installations. The onboard signal conditioning circuitry uses differential line receivers that reject common-mode noise from VFDs, welding equipment, and high-current bus bars running in the same cabinet — interference sources that destroy lesser designs.

Vibration resistance is built into the board’s mechanical design: conformal coating on the PCB protects against condensation and conductive dust ingress, while the guide-rail mounting system eliminates the micro-movement that causes solder joint fatigue on boards that rely solely on connector retention. In automotive body-in-white cells where the robot is cycling 1,200 times per shift and the floor vibrates from nearby stamping presses, DSQC633 boards routinely run for five to eight years before showing any degradation.

Units we ship have been inspected under magnification for cracked solder joints, corrosion on the resolver signal traces, and capacitor bulge — the three failure modes that account for over 80% of field returns. Any board that shows these signs is rejected before it reaches your hands.

Global Express Logistics

Our warehouse is located in Xiamen, Fujian — one of China’s primary export hubs with direct DHL and FedEx gateway access. Orders confirmed before 15:00 CST ship the same business day. Here’s what the timeline looks like once you place your order:

• Day 0 (Order confirmed): Unit pulled from stock, re-inspected, photographed, packed in anti-static bag inside foam-lined carton. Airway bill generated.
• Day 0 (Evening): Shipment handed to DHL / FedEx Xiamen gateway. Tracking number sent to your email within 2 hours of dispatch.
• Day 1–2: Clears Xiamen customs export. In transit to destination hub (Frankfurt, Chicago, Singapore, Dubai — depending on your location).
• Day 2–4: Delivery to your facility. Most European and Southeast Asian destinations receive within 3 business days. North America typically 4 business days.

All shipments include a commercial invoice with correct HS code (8537.10 for control boards), country of origin declaration, and packing list — everything your customs broker needs to clear the shipment without delay. We have shipped to over 40 countries and know which documentation formats each major customs authority requires. If your plant is in a country with specific import restrictions on used electronics, contact us before ordering and we will advise on the correct declaration approach.

For critical downtime situations, we can arrange Saturday dispatch and courier-to-door delivery with signature confirmation. WhatsApp us directly for urgent logistics coordination.
