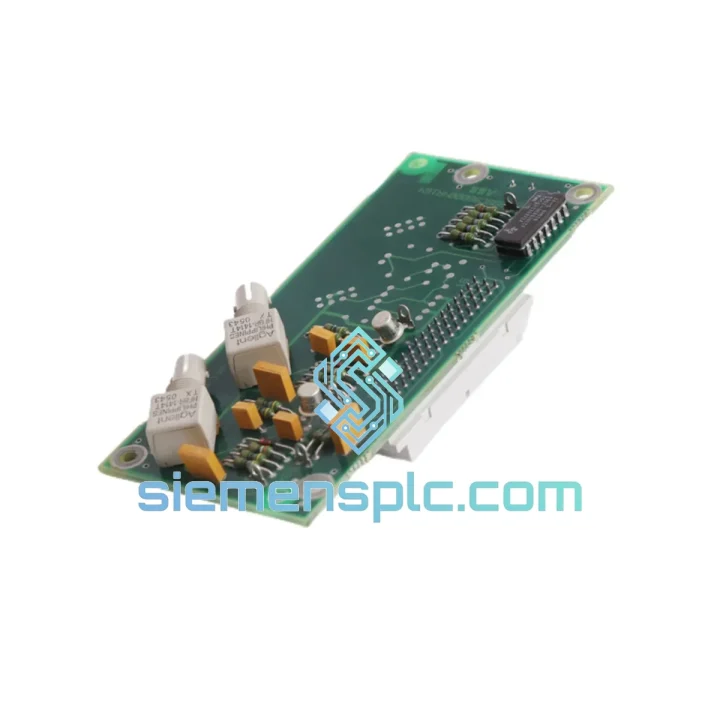

ABB DTDX991A 61430001-UW Servo Controller Module

ABB DTDX991A 61430001-UW — Stop the Clock on Your Downtime. Ship Today.

Every minute a servo axis is dead, your line bleeds money. A single unplanned stoppage on a CNC cell or robotic assembly station can cost $5,000–$50,000 per hour in lost throughput, penalty clauses, and emergency labor. The ABB DTDX991A (P/N: 61430001-UW) is the exact servo controller module your drive cabinet needs — and we have it on the shelf in Xiamen right now. No factory lead time. No 6-week wait. We pull, test, pack, and hand it to DHL the same day you confirm.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Swapping a DTDX991A in the field is not a plug-and-play operation if you skip the pre-checks. Here is what ten years of emergency callouts have taught us:

1. Parameter Backup First — Always.
Before you pull the failed module, connect ABB’s DriveWindow or Drive Composer and export the full parameter set. The DTDX991A stores axis-specific tuning data (speed loop gains, encoder resolution, ramp times) that is not recoverable once the board is dead. If the board is already dead and you cannot read it, check the PLC program — most integrators store a parameter mirror in the controller’s retain memory or on a USB stick taped inside the cabinet door.

2. Hardware Revision Matching.
ABB revised the DTDX991A backplane connector pinout between hardware generations. Check the revision label on the PCB edge (format: REV x.x). A mismatch between the module revision and the drive firmware version will throw fault F-0011 (hardware incompatibility) on power-up. We stock multiple revisions — tell us your drive’s firmware version and we will match it.

3. DIP Switch / Jumper Configuration.
The DTDX991A uses onboard DIP switches to set the node address when multiple servo axes share a common backplane. Default factory setting is node 1 (SW1=ON, SW2–SW4=OFF). If you are replacing a module in a multi-axis rack, photograph the switch positions on the failed board before removal. Incorrect node addressing causes axis conflict fault F-0031 and the drive will refuse to enable.

4. Encoder Feedback Cable Integrity.
A failed DTDX991A is frequently misdiagnosed — the actual root cause is a shorted encoder cable that took the module with it. Before installing the replacement, disconnect the encoder feedback connector and measure insulation resistance between signal lines and shield (should be >1 MΩ at 500 VDC). If it fails, replace the cable first or you will destroy the new module within hours.

5. Common Fault Codes on DTDX991A Systems:

• F-0007 — Encoder signal loss: Check encoder power (5 VDC at the module terminal), cable continuity, and connector seating. The DTDX991A’s encoder receiver circuit is the first casualty of a loose connector under vibration.
• F-0015 — Overcurrent on servo output: Usually a motor winding fault, not the module. Measure motor phase-to-phase resistance and insulation before condemning the DTDX991A.
• F-0022 — Communication timeout: Fieldbus cable issue or incorrect node address. Verify DIP switch settings and cable termination resistor (120 Ω on PROFIBUS).
• F-0031 — Axis conflict / duplicate node: Two modules sharing the same node address. Re-address the replacement module before racking it.
• F-0044 — Firmware mismatch: Module hardware revision incompatible with drive firmware. Contact us for a revision-matched unit.

6. Post-Replacement Commissioning Sequence:
Power up with the axis disabled. Upload the saved parameter set via DriveWindow. Perform an autotune (speed loop, current loop) if the motor or cable was also replaced. Run the axis at 10% speed in manual mode before enabling automatic operation. Log the first 30 minutes of operation and check for thermal anomalies on the module surface — normal operating temperature is 35–50 °C under load.

Reliability in Harsh Conditions

The DTDX991A was engineered for environments that would kill consumer-grade electronics in a week. ABB’s industrial qualification testing for this series includes:

Vibration & Mechanical Shock: Validated to IEC 60068-2-6 (sinusoidal vibration, 5–150 Hz, 1 g) and IEC 60068-2-27 (mechanical shock, 15 g / 11 ms half-sine). The PCB uses conformal coating on critical signal traces and press-fit connector technology to eliminate solder joint fatigue under continuous vibration — a common failure mode in stamping presses and compressor skids.

Thermal Cycling: Qualified across −40 °C to +70 °C storage range with 0–55 °C operational envelope. The onboard power regulation circuit uses industrial-grade capacitors rated for 105 °C, not the 85 °C parts found in commercial-grade alternatives. This matters in poorly ventilated control cabinets where ambient temperatures routinely exceed 45 °C in summer.

Humidity & Condensation: Tested to IEC 60068-2-78 (damp heat, 40 °C / 93% RH, 96 hours). The conformal coating provides a barrier against condensation-induced leakage currents that cause intermittent faults in coastal and tropical installations — exactly the conditions found across Southeast Asia and southern China manufacturing facilities.

EMC Immunity: Compliant with IEC 61800-3 Category C2 for conducted and radiated emissions. The module’s differential signal architecture and onboard filtering suppress noise from adjacent VFDs, welding inverters, and high-current bus bars — the three most common sources of spurious encoder faults in mixed-drive cabinets.

Global Express Logistics

Our dispatch hub is in Xiamen, Fujian — one of China’s primary export ports with direct DHL and FedEx gateway access. Here is exactly what happens after you confirm your order:

Hour 0–2: Order Confirmation & Stock Pull.
Your purchase order or email confirmation triggers immediate warehouse pick. The DTDX991A unit is pulled from ESD-controlled storage, visually inspected, and power-on tested on our ABB-compatible drive test bench. A test report is generated and attached to your shipment documentation.

Hour 2–4: Packing & Export Documentation.
The module is packed in a double-layer anti-static bag, cushioned with 25 mm foam, and placed in a double-wall corrugated carton. Commercial invoice, packing list, and HS code declaration (HS 8537.10 — boards, panels, consoles for electric control) are prepared. For customers requiring CITES, CE declaration, or country-specific import certificates, we prepare these in parallel.

Hour 4–8: Carrier Handover.
Shipments confirmed before 15:00 CST are handed to DHL Express or FedEx International Priority the same day. Tracking number is emailed to you within 30 minutes of carrier pickup. For critical downtime situations, we can arrange DHL On-Demand Delivery with a specific delivery window at the destination.

Transit Times from Xiamen (typical, business days):

• Southeast Asia (Singapore, Thailand, Vietnam, Malaysia): 2–3 days
• South Korea, Japan: 2–3 days
• India, Middle East: 3–4 days
• Europe (Germany, Netherlands, UK, France): 3–5 days
• North America (USA, Canada, Mexico): 3–5 days
• Australia, New Zealand: 3–4 days
• South America, Africa: 5–7 days

For shipments to countries with complex customs requirements (Brazil, India, Russia), we work with our licensed customs broker network to pre-clear documentation and minimize border delays. We have successfully delivered to 60+ countries without a single customs seizure on correctly declared industrial automation components.
