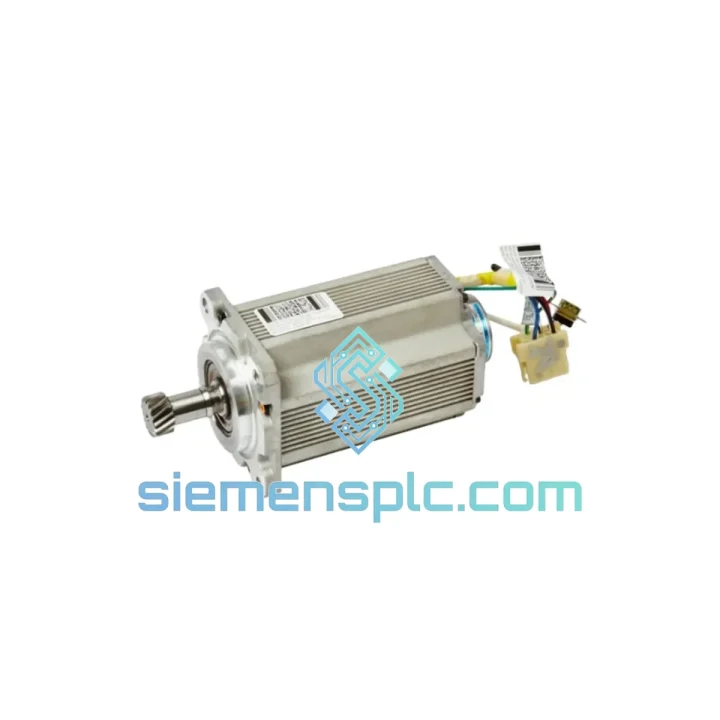

ABB FDOP-0005 OTC AC Servo Motor with Pinion – IRB6600 IRB6650 IRB4600

ABB FDOP-0005 OTC — Rotary AC Servo Motor with Pinion for Heavy-Payload Robot Axis Drive

The ABB FDOP-0005 OTC is a factory-original rotary AC servo motor with an integrated pinion gear, designed to actuate the primary rotational axes of ABB’s large-payload industrial robot platforms: the IRB6600, IRB6650, and IRB4600 series. Cross-referenced under ABB part numbers 3HAC14140-1 (legacy BOM) and 3HAC047577-002 (revised BOM), this motor is a direct-fit OEM replacement that restores full rated axis performance without mechanical shimming, firmware re-parameterization, or drive reconfiguration.

In heavy-duty automation environments — automotive body-in-white, foundry die casting, palletizing, and CNC machine tending — axis motor reliability is a direct determinant of line availability. The FDOP-0005 OTC is engineered to ABB’s factory dimensional and electrical tolerances, ensuring that mean time to repair (MTTR) on an unplanned axis failure is measured in hours, not days. siemensplc.com maintains verified stock of this component and ships globally from Xiamen, China via DHL Express and FedEx International Priority.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The FDOP-0005 OTC operates within ABB’s IRC5 closed-loop servo architecture. The IRC5 axis drive module outputs a pulse-width-modulated sinusoidal voltage waveform to the motor stator windings. The motor’s rotor position is continuously sampled via a resolver or encoder mounted on the motor shaft, and this feedback signal is returned to the IRC5 drive’s DSP-based position controller, which executes a cascaded PID loop — outer position loop, inner velocity loop, and innermost current (torque) loop — at a cycle time typically in the range of 250–500 µs per axis.

The integrated pinion gear is machined to ABB’s factory mesh tolerances. Backlash between the pinion and the axis gearbox ring gear is controlled at the OEM level, which is critical for maintaining the robot’s rated positional repeatability (±0.05 mm for IRB6600 class). Any deviation in pinion geometry — even sub-millimeter — propagates as a periodic position error at the axis output, detectable in the IRC5’s axis error monitoring logs. The FDOP-0005 OTC eliminates this risk by supplying a pinion ground to the same tolerance stack as the original factory build.

From an EMC standpoint, the motor’s stator winding insulation and cable shielding are specified to suppress conducted and radiated emissions consistent with ABB’s robot system CE marking requirements. The IRC5 drive module applies active common-mode filtering on the motor output stage, and the motor’s cable connector is designed with a 360° shield termination at the motor housing — a design detail that prevents high-frequency switching noise from the IGBT drive stage from coupling into the resolver feedback cable and corrupting position data.

Thermal management is passive: the motor housing acts as a heat sink, dissipating resistive losses from the stator windings into the robot arm structure. ABB’s thermal model for the IRB6600/4600 axis motors accounts for continuous duty at rated torque without forced cooling, provided ambient temperature remains within the robot’s specified operating range (typically 5–45 °C). The FDOP-0005 OTC’s winding insulation class is consistent with this thermal envelope.

System Integration Benefits

• Zero Re-Parameterization: The FDOP-0005 OTC matches the original motor’s electrical constants (winding resistance, inductance, back-EMF coefficient) within OEM tolerance, so the IRC5 drive’s pre-configured motor data set requires no modification after replacement.
• Dual BOM Coverage: A single FDOP-0005 OTC unit satisfies both 3HAC14140-1 and 3HAC047577-002 ABB BOM entries, eliminating procurement ambiguity when working across robot generations or service manual revisions.
• Deterministic Axis Recovery: Pre-tested units ship ready to install. Axis recovery time from motor failure to full production resume is reduced to the mechanical replacement interval — typically 2–4 hours for a trained ABB service technician.
• Preserved Positional Repeatability: OEM pinion geometry maintains the robot’s rated ±0.05 mm repeatability specification without post-installation axis calibration beyond standard mastering.
• IRC5 Diagnostic Transparency: Because the motor’s resolver/encoder signal characteristics match the IRC5’s configured feedback parameters, axis error codes (e.g., 50071 Motor Current Error, 50301 Joint Collision) remain meaningful and accurately reflect actual mechanical conditions rather than sensor mismatch artifacts.
• Connector Compatibility: OEM-matched connector pinout eliminates the risk of wiring errors during installation, which are a common source of drive faults and motor damage in non-OEM replacement scenarios.
• Reduced Spare Parts Inventory Complexity: The FDOP-0005 OTC’s cross-compatibility across IRB6600, IRB6650, and IRB4600 platforms allows maintenance teams to stock a single motor SKU for multiple robot models, reducing warehouse carrying cost.
• Warranty-Backed Performance: 12-month warranty from shipment date covers manufacturing defects and premature failure, providing procurement teams with a documented risk mitigation instrument for MRO budgeting.

Quality Assurance & Global Logistics

Every FDOP-0005 OTC unit supplied by siemensplc.com is sourced from verified OEM and authorized distributor channels. Incoming units are inspected against ABB part number markings, dimensional standards, and connector integrity before entering stock. Traceability documentation — including OEM label photography and batch reference — is available upon request for quality audit purposes.

For refurbished units, a pre-shipment functional verification report is included, documenting resolver signal output, winding resistance measurements, and insulation resistance (IR) test results. New OEM units ship with original manufacturer documentation and packaging where available.

Shipments originate from Xiamen, China. Standard export channels are DHL Express (2–4 business days to most destinations) and FedEx International Priority (1–3 business days). Full commercial invoice, packing list, and HS code documentation are included with every international shipment to facilitate customs clearance. For urgent requirements, same-day dispatch is available for orders confirmed before 14:00 CST on business days. Lead time for in-stock units is 1–3 business days; contact us for current stock status and volume pricing.
