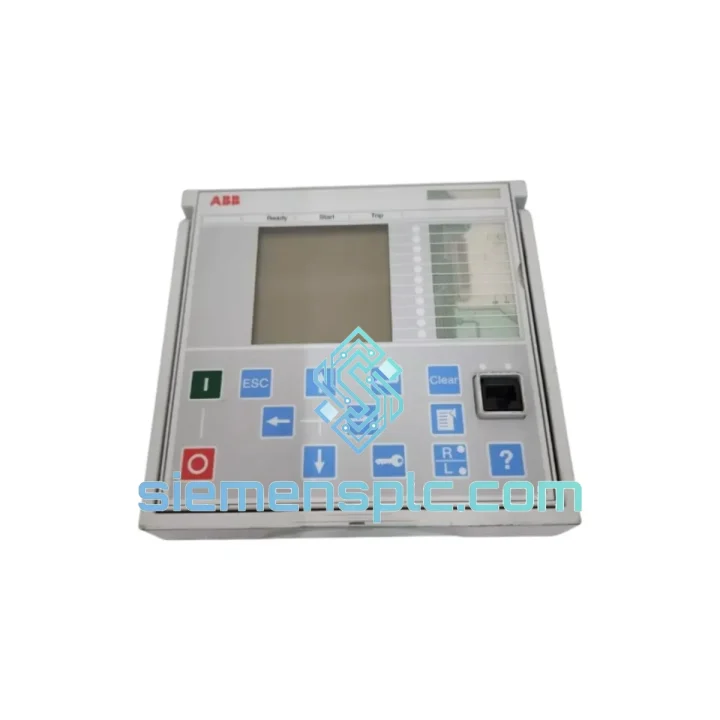

ABB FER615E-D Protection Relay

ABB FER615E-D Feeder & Motor Protection IED — Stop the Clock on Your Downtime

Every minute your line is down, you’re bleeding money. A tripped feeder, a locked-out motor, a protection relay that won’t reset — these aren’t abstract problems, they’re production losses measured in thousands per hour. The ABB FER615E-D is the exact module you need on the shelf before the fault happens, not after. We stock it in Xiamen, we ship it today, and it lands at your site via DHL or FedEx Express before your maintenance window closes.

This is not a grey-market substitute. Every FER615E-D unit we dispatch is 100% original ABB Relion® 615 Series hardware, serial-number verified, with full traceability documentation. If your plant engineer needs a datasheet, a configuration file, or a commissioning checklist at 2 AM, we answer.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Swapping an FER615E-D in the field is straightforward if you follow the sequence. Skip a step and you’ll be back on-site for a second visit.

Step 1 — Isolate and de-energize. Open the feeder CB and confirm LOTO. The auxiliary supply to the IED must be killed at the terminal block, not just at the front panel. Verify with a multimeter — the capacitors on the internal PSU hold charge for up to 30 seconds after power removal.

Step 2 — Export the configuration before you touch anything. If the existing relay is still partially functional, connect PCM600 and export the full parameter set (.pcm file). This is your insurance policy. If the relay is dead, retrieve the last-known config from your SCADA historian or engineering archive. Never commission a replacement with factory defaults on a live feeder.

Step 3 — Check the variant suffix. The “E-D” suffix denotes the extended digital I/O variant. Substituting an FER615C or FER615E without the “-D” suffix will leave you short on binary inputs for motor starter interlocking. Confirm the exact catalog number before the unit leaves your stores.

Step 4 — Firmware matching. ABB 615 Series IEDs are sensitive to firmware-to-PCM600 version alignment. Before importing your saved config, verify the firmware version on the replacement unit via the front HMI (Main Menu → Diagnostics → Version). If the firmware differs from the failed unit, update via PCM600 before parameter import, not after.

Step 5 — CT polarity and ratio verification. After wiring, perform a secondary injection test at 1× and 5× In before closing the CB. Common fault: reversed CT polarity on phase C causes differential current errors and nuisance trips within the first hour of operation.

Common Fault Codes to Know:

• START INHIBIT / THERMAL OVERLOAD (ANSI 49): The thermal model has accumulated heat from a previous start attempt. Wait for the thermal register to decay below the start inhibit threshold, or reset via PCM600 if the motor has physically cooled. Do not bypass — this protection exists to prevent winding damage.
• COMM FAIL / IEC 61850 Link Down: After replacement, the IED’s IP address and GOOSE dataset subscriptions must be reconfigured. The MAC address changes with the hardware. Update your SCL/SCD file and re-deploy to the station computer.
• BINARY INPUT NOT RESPONDING: Check the wet/dry contact configuration jumpers on the I/O board. The E-D variant ships with dry contact defaults. If your scheme uses wet contacts (external voltage), the jumper block on the rear I/O card must be repositioned before energizing.
• TRIP CIRCUIT SUPERVISION (TCS) ALARM: Verify the trip coil continuity circuit is intact. The FER615E-D monitors the trip circuit 24/7 — an open circuit in the CB trip coil wiring will immediately raise this alarm post-commissioning.

Reliability in Harsh Conditions

The ABB Relion® 615 Series was not designed for a climate-controlled server room. It was engineered for the realities of industrial switchgear — ambient temperatures that swing from sub-zero winter shutdowns to summer peaks above 50°C inside metal-clad panels, vibration from nearby compressors and transformers, and humidity levels that condense on cold mornings.

The FER615E-D meets IEC 60068-2 environmental testing across vibration (10–150 Hz, 1g), shock (15g, 11ms half-sine), and damp heat (40°C, 93% RH, 56 days). The conformal-coated PCBs resist corrosive atmospheres found in coastal substations and chemical plant switchrooms. The IP54-rated front panel keeps dust and water spray off the HMI and optical ports during routine panel cleaning.

In offshore and mining applications where vibration is continuous, the relay’s solid-state design — no mechanical relays on the measurement inputs — eliminates the contact bounce and false trips that plague older electromechanical protection. The output relay contacts are rated for 8A continuous and 30A make, handling the inrush of contactor coils and trip coils without contact welding.

Mean Time Between Failures (MTBF) for the 615 Series platform exceeds 100,000 hours under rated conditions. In practice, units installed in the early 2010s are still in service — the most common reason for replacement is firmware obsolescence or communication protocol upgrades, not hardware failure.

Global Express Logistics

Our dispatch hub is in Xiamen, China — one of the country’s primary export ports with direct DHL and FedEx Express gateway connections. This is not a drop-ship arrangement. Stock is physically on our shelves, pre-cleared for export, and ready to move the same business day for orders confirmed before 14:00 CST.

Typical transit times from Xiamen:

• Southeast Asia (Singapore, Thailand, Malaysia): 2–3 business days via DHL Express
• Middle East (UAE, Saudi Arabia, Qatar): 3–4 business days via FedEx International Priority
• Europe (Germany, UK, Netherlands): 4–5 business days via DHL Express Worldwide
• North America (USA, Canada): 4–5 business days via FedEx International Priority
• Australia / New Zealand: 3–4 business days via DHL Express

Every shipment includes a commercial invoice, packing list, and certificate of origin. For customers requiring ATA Carnet, CITES documentation, or specific customs HS code declarations (HS 8536.49 for protection relays), we prepare the paperwork before the courier collects. Tracking numbers are issued within 2 hours of dispatch and sent directly to your procurement contact.

For critical plant shutdowns where air freight is not fast enough, we can coordinate same-day courier handoff to your freight forwarder at Xiamen Gaoqi International Airport. Contact us with your AOG (Aircraft on Ground) or emergency shutdown reference and we will prioritize accordingly.
