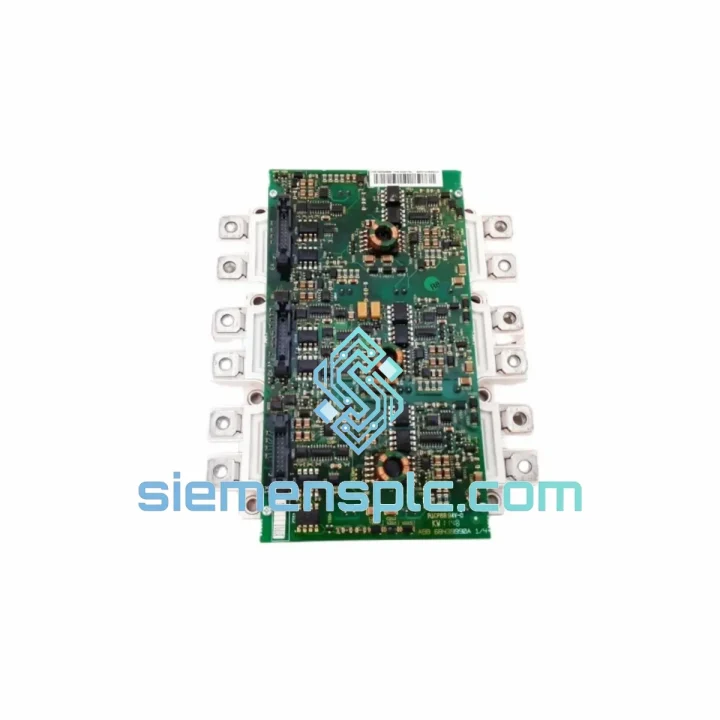

ABB FS225R12KE3/AGDR-71C IGBT Gate Driver Board

ABB FS225R12KE3/AGDR-71C — Stop the Bleeding: Get Your ACS Drive Back Online Before the Next Shift

Your ACS800 just tripped. The IGBT gate driver board is gone — you can tell by the desaturation fault latched on the drive controller, the gate supply rail sitting dead at 0 V, and the power stack refusing to fire. Production is stopped. Every hour costs real money. You don’t need a lecture on drive theory right now. You need the part, verified, boxed, and moving toward your facility today.

The ABB FS225R12KE3/AGDR-71C is a matched assembly combining the Infineon FS225R12KE3 half-bridge IGBT module (1200 V / 225 A, IGBT4 chip technology) with ABB’s AGDR-71C gate driver board. This is not a generic substitute. The AGDR-71C is factory-tuned to the switching characteristics of the FS225R12KE3 — gate resistor values, desaturation threshold, active clamping voltage, and UVLO trip point are all calibrated as a system. Swapping in a mismatched driver risks shoot-through, nuisance tripping, or worse, a second power stack failure within hours of restart. We stock this assembly as a verified matched pair, ready to ship from Xiamen.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Fault Diagnosis Before You Pull the Board

Before condemning the AGDR-71C, confirm the fault is actually in the gate driver assembly and not upstream. Check the APOW-01C auxiliary power supply output rails — a sagging ±15 V gate supply will cause the AGDR-71C to latch UVLO and look like a dead board when the driver itself is fine. Measure gate supply at the AGDR-71C connector with the drive in a safe de-energized state. If rails are within ±5% and the fault output is still latched low with no gate pulses present, the AGDR-71C or the FS225R12KE3 module is the culprit.

Common Fault Codes on ACS800 Pointing to This Assembly

• F-0022 (SC — Short Circuit): Desaturation event detected by AGDR-71C. Could be a genuine IGBT shoot-through or a failed desat detection circuit on the driver board itself. Inspect the IGBT module for collector-emitter short before assuming the driver is at fault.
• F-0001 (Overcurrent): If recurring at low load with no mechanical cause, suspect asymmetric gate drive — one IGBT in the half-bridge switching slower than the other due to a degraded gate resistor on the AGDR-71C.
• A-0007 (DC Bus Overvoltage during decel): Can be caused by a freewheeling diode failure in the FS225R12KE3 module — the FWD is integrated into the IGBT module, not the driver board.
• Drive trips immediately on enable with no load: Classic sign of a latched desat fault in the AGDR-71C that is not resetting. Power-cycle the gate supply (APOW-01C) independently of the main DC bus to force a driver reset before replacing the board.

Step-by-Step Replacement Procedure

1. Issue a controlled stop and open the main circuit breaker upstream of the drive. Verify DC bus voltage is below 50 V using a calibrated meter — do not rely on the drive’s internal voltage indicator alone. ACS800 DC bus capacitors can hold charge for 5–10 minutes after power removal.
2. Photograph the existing AGDR-71C wiring harness routing and connector positions before disconnecting anything. The gate signal ribbon cable and fault feedback connector are keyed, but the gate supply connectors on some revisions are not.
3. Remove the IGBT module mounting bolts (typically M6, torque to 6 N·m on reassembly). Do not pry the module — use a plastic spudger to break the thermal interface material bond if the module is stuck to the heatsink.
4. Clean the heatsink contact surface with isopropyl alcohol. Apply fresh thermal compound (Shin-Etsu X-23 or equivalent, 0.1–0.15 mm bond line) before installing the new FS225R12KE3 module.
5. Seat the new AGDR-71C board and reconnect all harnesses. Verify the gate signal ribbon cable is fully seated — a partially inserted ribbon is the most common cause of a “new board, same fault” callback.
6. Before re-energizing the DC bus, power the gate supply (APOW-01C) in isolation and verify ±15 V rails are present and the AGDR-71C fault output is high (not latched). Only then proceed to full drive energization.
7. Run the drive at 10% speed with no load for 5 minutes and monitor IGBT junction temperature via the drive’s thermal model readout. If temperature rises faster than expected, recheck thermal interface compound application.

No DIP switches or firmware changes are required for this replacement — the AGDR-71C is a passive hardware board with no addressable parameters. However, if your ACS800 uses an AINT-02C or AINT-14C auxiliary interface board, verify the fiber optic connections between the AINT board and the AGDR-71C are clean and fully seated. Contaminated fiber ends are a frequent source of intermittent gate faults after a board swap.

Reliability in Harsh Conditions

The FS225R12KE3/AGDR-71C assembly is built for environments that would destroy consumer-grade electronics in hours. The Infineon IGBT4 chip platform underpinning the FS225R12KE3 module was specifically engineered for industrial drive duty cycles — not just rated for them on paper, but validated through Infineon’s power cycling test protocol, which subjects the module to repeated thermal swings from junction to case until failure. The FS225R12KE3 is rated for over 100,000 power cycles at ΔT_j = 60 K, a figure that reflects real-world VFD operation in steel mill and marine propulsion applications.

The AGDR-71C board uses conformal-coated PCB construction, providing resistance to condensation, industrial coolant mist, and airborne conductive particulates common in foundry and mining environments. The board’s operating temperature range extends to 70°C ambient — relevant in poorly ventilated drive cabinets in tropical climates or near furnace equipment. Vibration resistance is inherent in the through-hole and press-fit connector design used on the AGDR-71C; surface-mount-only boards in this application class have a documented history of solder joint fatigue failures under the vibration profiles of compressor and pump drive installations.

Units in our inventory are stored in climate-controlled conditions at 20–25°C with relative humidity below 60%, in ESD-safe packaging. IGBT modules are particularly sensitive to electrostatic discharge at the gate terminal — a single ESD event above 20 V can degrade gate oxide without producing an immediately visible failure, leading to premature in-service failure weeks after installation. Every unit we ship leaves in a properly grounded ESD bag with foam cushioning, not bubble wrap.

Global Express Logistics

Our warehouse is located in Xiamen, Fujian Province — one of China’s primary export hubs with direct access to Xiamen Gaoqi International Airport and established freight forwarding relationships with DHL Express, FedEx International Priority, and UPS Worldwide Express.

For urgent replacement orders, the standard process is as follows: order confirmation and payment verification by 14:00 CST triggers same-day pick, pack, and handover to the courier. DHL Express transit times from Xiamen to major industrial hubs are typically 2–3 business days to Europe (Germany, Netherlands, UK), 3–4 days to North America (Houston, Detroit, Toronto), and 2–3 days to Southeast Asia (Singapore, Kuala Lumpur, Jakarta). FedEx International Priority is available as an alternative for destinations where DHL coverage is limited.

All shipments include a commercial invoice, packing list, and — where required — a certificate of origin. For customers in the EU, we can provide documentation to support customs clearance under the relevant HS code for IGBT modules and electronic control boards. Dangerous goods classification does not apply to this product. For large-quantity orders where air freight cost is prohibitive, sea freight via Xiamen Port to major destination ports (Rotterdam, Los Angeles, Singapore) is available with typical transit times of 25–35 days.

Track your shipment in real time via the DHL or FedEx tracking number provided at dispatch. If your shipment is time-critical and you need to coordinate with your local customs broker in advance, contact us immediately after order confirmation and we will provide the airway bill number as soon as the shipment is booked — typically within 2 hours of handover to the courier.
