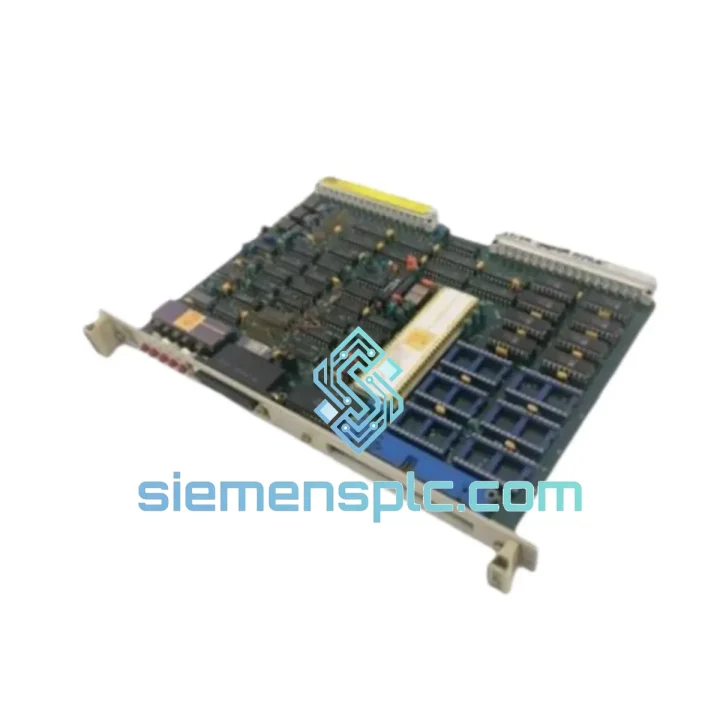

ABB GKWE857800R1223 Coupling Module – 87TS50E-E Series

ABB GKWE857800R1223 Backplane Coupling Module — Structural Role in the 87TS50E-E Control Architecture

The ABB GKWE857800R1223 is a dedicated backplane coupling module within the 87TS50E-E series distributed control platform. Its primary function is to establish a low-impedance, electrically isolated signal bridge between adjacent rack segments, enabling the DCS backplane bus to extend across physical enclosure boundaries without introducing ground loops or common-mode noise into the data path. In multi-rack configurations — common in large-scale process plants where I/O counts exceed a single rack’s capacity — the GKWE857800R1223 acts as the deterministic handoff point between the primary rack’s internal bus and the expansion segment, preserving cycle-time integrity across the entire I/O tree.

Unlike passive bus extenders, the GKWE857800R1223 incorporates active signal conditioning circuitry that regenerates bus drive strength at each coupling point. This prevents cumulative signal degradation in long-distance rack chains — a failure mode that manifests as intermittent communication faults or increased CRC error rates on the backplane. The module’s internal architecture uses transformer-coupled isolation between the primary and secondary bus segments, providing a galvanic barrier rated to withstand transient voltages typical of industrial environments (surge immunity per IEC 61000-4-5, 1 kV differential / 2 kV common-mode).

In the 87TS50E-E platform’s slot assignment scheme, the GKWE857800R1223 occupies a dedicated coupling slot — it does not consume a standard I/O or CPU slot — meaning its installation imposes zero penalty on the rack’s functional module capacity. The module draws power exclusively from the backplane 24 VDC rail, with an internal DC/DC converter providing isolated secondary power to the downstream bus driver stage. This architecture ensures that a power disturbance on the secondary rack does not propagate upstream to the primary controller segment.

Deployment environments for this module span oil and gas upstream/midstream facilities, chemical batch reactors, power generation auxiliary control systems, and large-scale water treatment SCADA architectures — any application where the ABB 87TS50E-E platform is deployed in a multi-rack topology and where bus continuity, fault isolation, and deterministic latency are non-negotiable engineering requirements.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The GKWE857800R1223’s internal design addresses three principal hardware challenges inherent to multi-rack DCS backplane extension: signal integrity degradation, ground potential differences between enclosures, and EMC susceptibility in high-noise industrial environments.

Active Bus Regeneration: The module’s primary-side bus receiver samples the incoming backplane signals and feeds them through a line driver stage before retransmitting onto the secondary segment. This regeneration resets the signal’s rise/fall time budget, preventing the cumulative slew-rate degradation that occurs in passive daisy-chain topologies. The result is a consistent ≤150 ns propagation budget per coupling stage, regardless of cable length between racks.

Transformer-Coupled Galvanic Isolation: Ground potential differences between physically separated control cabinets — routinely 1–3 V in large industrial plants due to ground grid resistance — are a primary source of common-mode noise injection into backplane data lines. The GKWE857800R1223’s transformer isolation stage presents a high common-mode impedance (>10 MΩ at DC) while maintaining low differential insertion loss (<0.5 dB across the bus frequency band), effectively decoupling the two rack ground planes without attenuating the data signal.

EMC Shielding Architecture: The module’s PCB layout employs a split-ground plane strategy: the primary-side analog ground and the secondary-side analog ground are separated at the isolation barrier, with each side’s digital return routed independently to the backplane connector’s dedicated ground pins. Ferrite bead filters on all power supply lines suppress conducted emissions in the 150 kHz–30 MHz band, consistent with EN 55011 Class A industrial emission limits. The module housing provides additional shielding continuity through the rack’s grounded chassis frame.

Redundancy Arbitration Compatibility: In ABB 87TS50E-E configurations with redundant CPU modules, the GKWE857800R1223 passes the bus arbitration tokens transparently, preserving the platform’s bumpless switchover behavior. The coupling stage introduces no additional arbitration latency beyond its fixed propagation delay, ensuring that the redundancy manager’s switchover decision logic operates on accurate, real-time bus state data.

System Integration Benefits

• Zero I/O Slot Penalty: Occupies a dedicated coupling slot, leaving all standard I/O and CPU slots available for functional modules — no capacity trade-off in high-density rack configurations.
• Deterministic Latency Contribution: Fixed ≤150 ns propagation delay per stage allows system engineers to calculate worst-case bus cycle times with precision, supporting IEC 61131-3 scan time budgeting in time-critical control loops.
• Ground Loop Elimination: Galvanic isolation between rack segments removes the primary mechanism for ground-loop-induced noise, directly reducing spurious analog input errors and false digital transitions in downstream I/O modules.
• Hot-Swap Support: Compatible with ABB 87TS50E-E hot-swap procedures, allowing module replacement during live system operation in non-safety-critical segments — reducing planned maintenance downtime to near zero for coupling stage servicing.
• Diagnostic Transparency: The module’s status is visible to the ABB system’s hardware diagnostic layer; a coupling fault generates a specific fault code in the controller’s diagnostic buffer, enabling maintenance personnel to isolate the fault to the exact rack boundary without physical inspection.
• Surge Immunity Compliance: IEC 61000-4-5 Level 3 surge immunity (1 kV differential, 2 kV common-mode) protects the backplane bus from transient events originating in adjacent power distribution equipment — a critical requirement in substations and motor control centers.
• Thermal Stability: ≤4 W power dissipation across the full 0–60 °C operating range eliminates the need for forced-air cooling in standard industrial cabinet designs, simplifying thermal management and reducing fan maintenance overhead.
• Long-Term Parts Availability: As a catalogued ABB 87TS50E-E series component, the GKWE857800R1223 is supported under ABB’s long-term availability program, providing a defined spare parts horizon for plant asset managers planning 10–15 year maintenance cycles.

Quality Assurance & Global Logistics

Every GKWE857800R1223 unit dispatched from our Xiamen, China facility is sourced through verified ABB distribution channels and subjected to incoming inspection covering label authenticity, connector pin integrity, and original factory packaging condition. Units are stored in ESD-controlled, climate-regulated warehousing to prevent moisture ingress and electrostatic damage during storage.

Outbound logistics from Xiamen leverage direct freight partnerships with DHL Express, FedEx International Priority, and UCP air freight consolidators, providing transit times of 3–7 business days to major industrial hubs in Europe, the Middle East, Southeast Asia, and the Americas. Full export documentation is prepared for every international shipment: commercial invoice, packing list, certificate of origin, and HS code declaration (HS 8537.10 for programmable controller modules). A certificate of conformance (CoC) is available upon request at no additional charge.

All units are covered by a 12-month warranty from the date of shipment. Warranty claims are processed within 5 business days of receipt of the returned unit, with replacement or credit issued upon verification of the defect. Our technical team — with direct experience in ABB 87TS50E-E platform architecture — is available to support pre-sale compatibility verification and post-sale commissioning questions.
