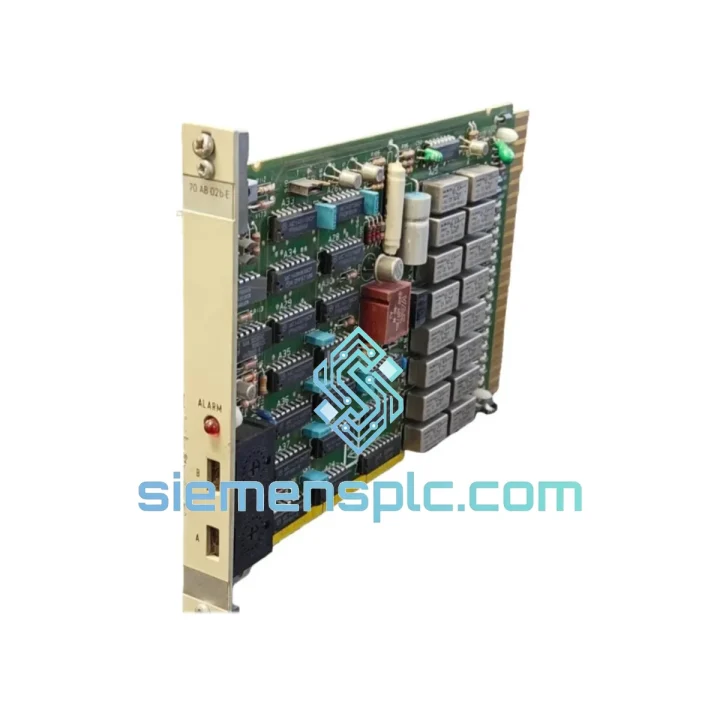

ABB HESG446933R2/70AB02B-E Contact Card – Advant OCS

ABB HESG446933R2/70AB02B-E Advant OCS Contact Interface Card — Discrete Signal Conditioning at the DCS Backplane Level

The ABB HESG446933R2/70AB02B-E is a plug-in contact interface card engineered for deployment within ABB’s Advant OCS (Open Control System) distributed control architecture. Its primary function is to condition and relay discrete contact-level signals — dry contacts, relay outputs, and binary status inputs — between field devices and the DCS backplane bus. In process-critical environments where signal fidelity and deterministic response are non-negotiable, this card occupies a structurally essential position in the control loop.

Unlike generic I/O modules that rely on software polling cycles, the HESG446933R2/70AB02B-E operates with hardware-latched contact state detection. Each input channel captures the open/closed state of a field contact and presents it to the backplane with a defined propagation delay, ensuring that the Advant OCS processor receives a stable, debounced signal rather than a transient edge artifact. This is particularly significant in emergency shutdown (ESD) and safety interlock applications where a false state transition can trigger unplanned process trips.

The card’s dual-designation part number — HESG446933R2 as the ABB ordering reference and 70AB02B-E as the hardware revision identifier — reflects ABB’s modular versioning practice within the Advant OCS platform. The revision suffix confirms compatibility with second-generation Advant OCS subrack configurations, which introduced enhanced backplane arbitration and improved slot-level diagnostics compared to first-generation hardware.

In power generation facilities, this module is commonly installed in turbine supervisory control panels where contact status from limit switches, position indicators, and relay auxiliary contacts must be aggregated and transmitted to the DCS with sub-100 ms latency. In oil and gas upstream operations, it serves as the hardwired interface between wellhead safety valves and the process control system, providing the physical contact monitoring layer beneath the software logic. Chemical reactor control loops use it to monitor interlock relay states, ensuring that the DCS has accurate, real-time visibility of field-level safety device positions.

The module’s plug-in card form factor allows hot-swap replacement in subrack configurations that support live insertion, minimizing mean time to repair (MTTR) during unplanned maintenance events. Its connector interface is keyed to the Advant OCS backplane edge connector standard, preventing incorrect insertion and ensuring consistent electrical contact across the full pin array.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Full electrical ratings, isolation voltage, and channel count specifications are available upon request from our technical team.

Hardware Logical Analysis

The HESG446933R2/70AB02B-E implements a hardware-first signal conditioning architecture that distinguishes it from software-polled I/O approaches. The following design characteristics define its operational behavior:

Contact Debounce Logic: Mechanical contacts in field devices — limit switches, relay auxiliaries, pushbuttons — produce bounce transients of 1–20 ms duration upon state change. The card’s onboard debounce circuitry filters these transients using an RC time-constant network followed by a Schmitt trigger comparator, presenting a clean, single-edge transition to the backplane logic. This eliminates false state counts that would otherwise propagate to the DCS historian and alarm management system.

Galvanic Isolation Architecture: Each input channel is isolated from the backplane logic via optocoupler isolation barriers. The optocoupler’s LED side interfaces with the field contact circuit, while the phototransistor side drives the backplane-facing logic. This arrangement provides a defined isolation voltage boundary between field wiring (which may carry induced voltages from adjacent power cables) and the DCS backplane bus, protecting the processor module from common-mode voltage events.

EMC Design: The card’s PCB layout follows ABB’s Advant OCS EMC design rules, which include ground plane partitioning between the field-side and logic-side circuits, ferrite bead filtering on power supply rails, and controlled impedance routing on high-speed backplane signal lines. These measures ensure compliance with EN 61000-4-2 (ESD), EN 61000-4-4 (EFT/Burst), and EN 61000-4-5 (Surge) immunity levels applicable to industrial process control equipment.

Backplane Arbitration Compatibility: The 70AB02B-E hardware revision is aligned with the second-generation Advant OCS backplane arbitration protocol, which introduced slot-level diagnostic registers. These registers allow the Advant OCS processor to read card presence, fault status, and communication health without interrupting normal I/O scan cycles. This non-intrusive diagnostic capability is essential in high-availability systems where diagnostic polling must not introduce jitter into the control loop timing.

Connector Keying and Mechanical Retention: The card’s edge connector incorporates ABB’s standard keying notch pattern, which physically prevents insertion into incompatible subrack slots. The card retention latch mechanism provides a defined insertion force and a positive lock confirmation, ensuring full pin engagement across the 0 °C to +55 °C operating temperature range where thermal expansion can affect connector contact pressure.

System Integration Benefits

• Zero-Reconfiguration Drop-In Replacement: The HESG446933R2/70AB02B-E is an OEM-equivalent module. Slot substitution requires no firmware update, no re-parameterization of the Advant OCS processor, and no modification to the DCS configuration database. The backplane recognizes the card by its hardware ID register and resumes normal I/O scanning within one scan cycle.
• Deterministic I/O Scan Latency: Contact state changes are latched in hardware and presented to the backplane at the next scheduled scan cycle boundary. This deterministic behavior ensures that the DCS control logic operates on a consistent, time-stamped snapshot of field contact states, which is a prerequisite for accurate sequence-of-events (SOE) recording in fault analysis.
• Diagnostic Transparency: Slot-level diagnostic registers expose card health, channel fault flags, and communication status to the Advant OCS processor without requiring a dedicated diagnostic scan. Maintenance personnel can query card status via the engineering workstation without taking the card offline.
• High-Density Contact Monitoring: The card’s multi-channel architecture allows a single subrack slot to monitor multiple field contacts simultaneously, reducing the total slot count required for discrete I/O aggregation and lowering the overall system BOM cost.
• Field Wiring Compatibility: The card’s field-side interface accepts standard 24 VDC wet contact and dry contact wiring configurations, eliminating the need for external signal conditioning relays in most installation scenarios.
• Long-Term Platform Support: The Advant OCS platform has an established installed base across global process industries. ABB’s long-term spare parts availability policy ensures that HESG446933R2/70AB02B-E units remain procurable for the operational lifetime of existing Advant OCS installations, typically 15–25 years from initial commissioning.
• Reduced MTTR in Maintenance Events: The plug-in card form factor and zero-reconfiguration replacement procedure reduce the time from fault identification to system restoration. In a typical maintenance scenario, card swap and system verification can be completed within 15–30 minutes by a trained technician.
• Compatibility with Advant OCS Redundancy Configurations: In redundant DCS architectures, the contact card operates within the primary subrack while a mirrored configuration in the standby subrack maintains synchronized state. Switchover events do not require re-initialization of the contact card, ensuring bumpless transfer of I/O control.

Quality Assurance & Global Logistics

Every ABB HESG446933R2/70AB02B-E unit dispatched from our Xiamen, China facility undergoes a structured pre-shipment verification protocol:

• Visual Inspection: Full examination of PCB surface, connector pin array, component seating, and card retention mechanism for physical damage, oxidation, or contamination.
• Functional Bench Test: Each card is tested against ABB Advant OCS reference specifications using calibrated test equipment. Contact state detection, debounce timing, and backplane communication registers are verified.
• ESD-Safe Packaging: Units are packaged in anti-static bags with foam cushioning and placed in double-wall corrugated cartons rated for international air freight handling.
• Traceability Documentation: Test records, inspection reports, and sourcing documentation are available upon request for quality-audited procurement programs.
• 12-Month Warranty: All units carry a 12-month functional warranty from the date of shipment. Warranty claims are processed with a target replacement dispatch of 3 business days.

Logistics from Xiamen, China: DHL Express and FedEx International Priority services provide 3–5 business day delivery to most destinations in Europe, North America, Southeast Asia, and the Middle East. Customs documentation, including commercial invoice, packing list, and HS code declaration, is prepared for each shipment to facilitate smooth customs clearance.
