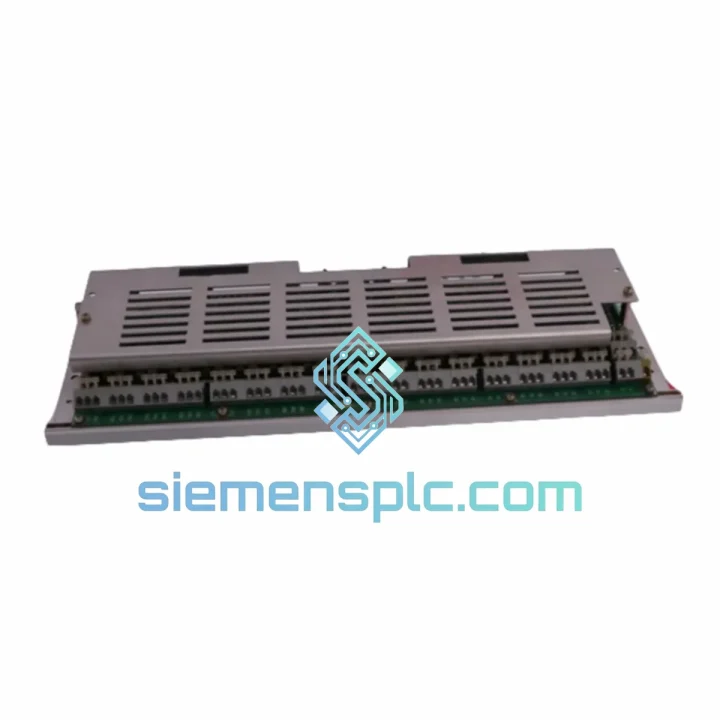

ABB HIEE205011R0002 Converter Electronics Board – ACS/DCS Series

ABB HIEE205011R0002 Converter Electronics Board: Gate Drive Architecture and Power Conversion Control in ACS/DCS Drive Systems

The HIEE205011R0002 is a dedicated converter electronics board manufactured by ABB for integration within its ACS and DCS series variable-speed drive platforms. Its primary function is to manage the gate drive signal chain between the drive’s main control unit and the IGBT power stack, while simultaneously processing DC bus voltage feedback, current transducer signals, and thermal protection inputs. This board does not perform high-level motion profiling; instead, it occupies the deterministic low-latency layer of the drive’s power conversion loop — the layer where microsecond-level timing accuracy directly determines switching loss, harmonic distortion, and fault response fidelity.

In a typical ACS800 or DCS800 drive frame, the converter electronics board is mounted in close physical proximity to the IGBT module to minimize gate drive trace inductance. Gate signal propagation delay is held to sub-100 ns tolerances to prevent shoot-through conditions during complementary switch transitions. The board receives PWM timing commands from the RDCU or RMIO control board via a high-speed parallel interface and translates these into isolated gate pulses with precisely controlled rise and fall times — typically 100–300 ns depending on the IGBT gate charge specification.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The HIEE205011R0002 implements a multi-channel isolated gate drive architecture where each IGBT switch in the power bridge is served by an independent isolated power supply and signal path. This per-channel isolation topology eliminates common-mode coupling between the high-side and low-side gate circuits — a critical design requirement in three-phase bridge configurations where the high-side emitter potential swings at the full DC bus voltage during switching transitions.

Opto-coupler Isolation Stage: The board employs high-speed opto-couplers (propagation delay typically <500 ns, common-mode transient immunity CMTI ≥ 15 kV/µs) to transfer PWM signals across the isolation barrier. The CMTI specification is particularly significant in high-power drives where dV/dt at the IGBT collector can exceed 5 kV/µs during hard switching — a condition that would corrupt signal integrity in lower-grade isolation devices.

Desaturation (DESAT) Detection: Each gate drive channel incorporates a desaturation detection circuit that monitors the IGBT collector-emitter voltage (VCE) during the on-state. If VCE rises above the desaturation threshold — indicating overcurrent or short-circuit conditions — the circuit initiates a soft-shutdown sequence within 2–5 µs, ramping down the gate voltage in a controlled manner to limit di/dt and suppress voltage overshoot on the DC bus. This response time is orders of magnitude faster than any software-based overcurrent protection loop.

Active Miller Clamp: To prevent parasitic turn-on of the complementary IGBT during fast switching transitions (caused by Miller capacitance displacement current), the board implements an active clamp circuit that holds the off-state gate at a defined negative voltage (typically −8 V) and provides a low-impedance path to suppress gate voltage excursions. This is essential in high-frequency PWM operation above 4 kHz where Miller coupling effects become significant.

EMC Design: The PCB layout follows a strict ground plane partitioning strategy — the high-voltage isolated side and the low-voltage logic side are separated by a defined creepage and clearance gap per IEC 60664-1 requirements. Decoupling capacitors are placed at each isolated DC-DC converter output to suppress switching noise from propagating into the analog feedback signal paths. Ferrite beads are used on gate drive output traces to attenuate high-frequency ringing without introducing excessive gate resistance.

Thermal Monitoring Interface: The board interfaces with NTC thermistors mounted on the IGBT heatsink. The thermistor signal is conditioned through a linearization network and fed to the drive control board’s ADC. Over-temperature pre-warning and trip thresholds are processed in firmware, but the analog signal conditioning on the HIEE205011R0002 ensures measurement accuracy within ±2 °C across the full operating range.

System Integration Benefits

• Drop-in OEM Replacement: The HIEE205011R0002 is a factory-original ABB component with identical connector pinout, PCB mounting geometry, and firmware interface to the original fitted board — no drive reconfiguration or parameter re-entry is required after replacement.
• Deterministic Fault Response: Hardware-level DESAT detection and soft-shutdown logic operate independently of the drive’s main DSP cycle time, ensuring sub-10 µs fault isolation that protects the IGBT power module from catastrophic failure during overcurrent events.
• Reduced MTTR: The plug-in board architecture allows a trained technician to replace the converter electronics board in under 30 minutes without specialized tooling, directly reducing mean time to repair and minimizing production downtime costs.
• Preserved Drive Calibration: Because the HIEE205011R0002 handles only the analog signal conditioning and gate drive functions — not drive parameters or motor model data — replacing this board does not disturb the drive’s existing parameter set stored in the control board’s non-volatile memory.
• High-Frequency PWM Compatibility: The active Miller clamp and high-CMTI isolation stage support PWM carrier frequencies up to 12 kHz in applicable drive configurations, enabling low-audible-noise motor operation in noise-sensitive environments such as HVAC and water treatment facilities.
• Diagnostic Transparency: The board’s DESAT and over-temperature signals are routed to the drive control board’s fault register, providing fault code granularity that distinguishes between gate drive failures, IGBT overcurrent events, and thermal overloads — accelerating root-cause analysis during maintenance.
• Long-term Spare Parts Availability: Sourcing the HIEE205011R0002 as a critical spare eliminates dependency on OEM lead times (which can extend to 16–24 weeks for legacy drive components) and protects against production losses during unplanned drive failures.
• Cross-Platform Applicability: Subject to hardware revision verification, the HIEE205011R0002 is applicable across multiple ABB drive frame sizes within the ACS800 and DCS800 families, allowing maintenance teams to standardize on a single spare part number across a mixed drive fleet.

Quality Assurance & Global Logistics

Every HIEE205011R0002 unit supplied by siemensplc.com is sourced through verified industrial distribution channels and subjected to a structured incoming inspection protocol before dispatch. Authenticity verification includes cross-referencing ABB part number markings, date codes, and PCB revision identifiers against ABB’s published hardware documentation. Units showing evidence of counterfeit labeling, re-marking, or unauthorized repair are rejected at intake.

For refurbished-condition units, bench testing is performed against the board’s functional specification: gate drive output waveforms are verified with an oscilloscope under resistive load, isolation resistance is measured at 500 V DC between primary and secondary circuits, and the DESAT detection circuit is exercised with a controlled overcurrent simulation. Test records are retained and available to customers upon request for regulated procurement processes.

Shipping is executed from our Xiamen, China operations center. Xiamen’s port infrastructure and direct air freight connections to major industrial hubs in Europe, Southeast Asia, the Middle East, and the Americas enable consistent transit times of 3–7 business days for express air freight. All shipments are packed in anti-static ESD bags with foam cushioning inside double-wall corrugated cartons. Export documentation — including commercial invoice, packing list, and certificate of origin — is prepared to facilitate smooth customs clearance in destination countries. DDP (Delivered Duty Paid) terms are available for select markets upon request.

A 12-month warranty covers all units against defects in materials and workmanship from the date of shipment. Warranty claims are processed with a target response time of 48 hours, and replacement units are dispatched upon confirmation of the defect.
