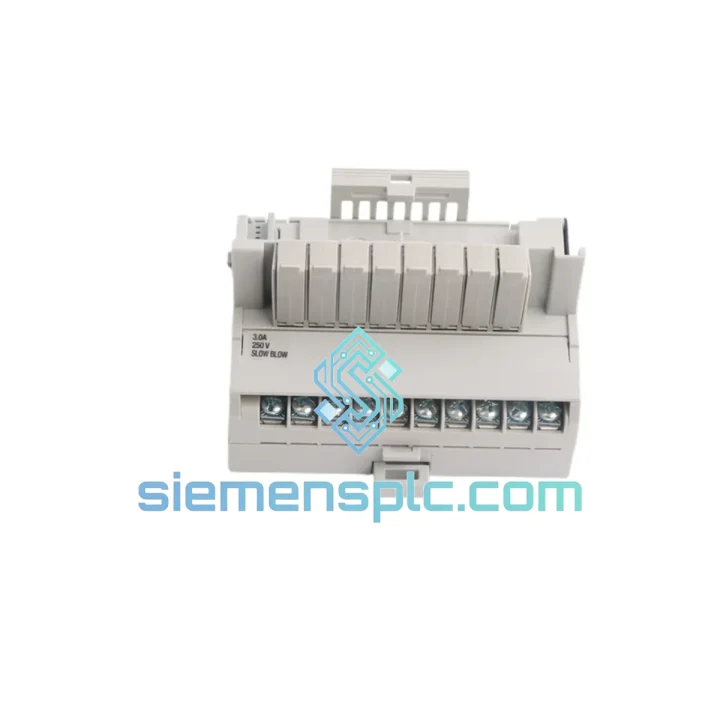

ABB S200-TBNF Fused Terminal Base – S200 Series

ABB S200-TBNF Fused Terminal Base: Branch-Level Overcurrent Protection in S200 MCB Assemblies

The ABB S200-TBNF is a fused terminal base engineered as a direct accessory for the ABB S200 miniature circuit breaker (MCB) platform. Its primary function within a control circuit is to provide selective overcurrent protection at the individual branch level — downstream of the main MCB — without requiring a separate fuse holder assembly. By integrating the fuse element directly at the terminal interface, the S200-TBNF eliminates an entire wiring node from the panel BOM, reduces cabinet depth requirements, and enforces a deterministic fault-isolation boundary that prevents upstream breaker trips during localized load faults.

In distributed I/O panels and machine control cabinets, branch-level fusing is not optional — it is a fundamental requirement of IEC 60204-1 for machinery safety. The S200-TBNF addresses this requirement with a mechanically integrated solution that snaps directly onto the S200 MCB body, maintaining the same DIN rail footprint and eliminating the misalignment risk inherent in separately mounted fuse blocks.

📩 Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The S200-TBNF operates on a series-insertion fusing topology: the fuse element is placed in series with the load terminal, downstream of the MCB output contact. This architecture creates a two-stage protection hierarchy — the MCB handles overload and short-circuit events at the feeder level, while the fuse link handles fast-acting fault isolation at the branch load level. The result is a selectivity ratio that prevents nuisance tripping of the upstream MCB during transient load faults.

EMC and Isolation Architecture: The terminal base housing is constructed from glass-fiber-reinforced thermoplastic with a comparative tracking index (CTI) ≥ 175, providing adequate creepage and clearance distances at 400 V AC per IEC 60664-1. The fuse carrier is mechanically captive — it cannot be removed without deliberate tool engagement — which prevents accidental live-contact exposure during panel maintenance. This design satisfies the finger-safe IP2X requirement at the fuse access point.

Thermal Management: The fuse link’s I²t characteristic is matched to the S200 MCB’s thermal-magnetic trip curve, ensuring that the fuse clears branch faults before the MCB’s bimetal element reaches its deflection threshold. This coordination eliminates the ambiguity of which protective device operated during a fault event — a critical requirement for post-fault diagnostics in process environments.

Mechanical Integration Logic: The snap-on attachment mechanism uses a dual-latch geometry that engages the MCB’s accessory rail on both the top and bottom edges simultaneously. This prevents rocking under vibration loads up to 2g (10–150 Hz), which is the standard vibration profile for industrial panel installations per IEC 60068-2-6. The terminal screws use a captive-washer design that maintains clamping force across thermal cycling without requiring re-torquing during scheduled maintenance.

System Integration Benefits

• Selective Fault Isolation: Branch-level fusing ensures that a single load fault does not propagate upstream, maintaining power continuity to all other branches on the same MCB feeder — directly improving system MTBF in multi-load panels.
• Reduced Panel Footprint: Eliminating a separate fuse holder reduces per-branch panel space by approximately 18–22 mm of DIN rail length, enabling higher circuit density in compact enclosures.
• Deterministic Protection Coordination: The fuse I²t value is factory-matched to the S200 MCB trip curve, removing the engineering burden of manual selectivity calculations for standard branch circuits.
• Diagnostic Transparency: A blown fuse provides an unambiguous, physically visible fault indicator — no relay logic or diagnostic software required to identify the faulted branch during troubleshooting.
• Tool-Free Fuse Access: The fuse carrier is accessible without removing the MCB from the DIN rail, reducing mean time to repair (MTTR) during production maintenance windows.
• IEC 60204-1 Compliance Path: Integrating the S200-TBNF into branch circuits provides a documented compliance path for machinery safety standards requiring individual branch overcurrent protection.
• Ecosystem Interoperability: Mechanically and electrically compatible with the full S200 family (1P, 2P, 3P, 4P variants), allowing a single accessory SKU to cover the entire panel’s branch protection requirements.
• Reduced Wiring Complexity: Eliminating the separate fuse holder removes two wire terminations per branch circuit, reducing wiring labor by approximately 8–12 minutes per circuit in high-density panels.
• Thermal Stability Under Continuous Load: Rated for continuous operation at 100% of the fuse’s rated current without derating, unlike some terminal block fuse holders that require 80% derating in enclosed enclosures.
• RoHS and REACH Compliance: All materials meet EU environmental directives, supporting CE marking for machinery exported to European markets without additional component-level documentation.

Quality Assurance & Global Logistics

Every ABB S200-TBNF unit shipped from our Xiamen, China facility undergoes a structured incoming inspection protocol before it enters available stock. Inspection steps include: verification of ABB part number markings and date codes against the current ABB product catalog; visual examination of terminal surfaces, fuse carrier mechanism, and snap-on latch geometry for mechanical integrity; and packaging condition assessment to confirm original or properly repackaged state.

We source exclusively through verified industrial distribution channels. Grey-market and unverified surplus sources are not accepted into our supply chain. Certificate of conformity and test documentation are available upon request for project-critical orders.

Logistics from Xiamen, China: In-stock orders are processed and dispatched within 1–3 business days. We support DHL Express, FedEx International Priority, and sea freight consolidation for volume orders. Export documentation — including commercial invoice, packing list, and HS code declaration (HS 8536.90) — is prepared as standard for all international shipments. Customs clearance support is available for buyers in the EU, Southeast Asia, Middle East, and North America.

All shipments carry a 12-month warranty from the date of dispatch, covering manufacturing defects under normal operating conditions. Warranty claims are processed within 5 business days of receipt of the returned unit.
