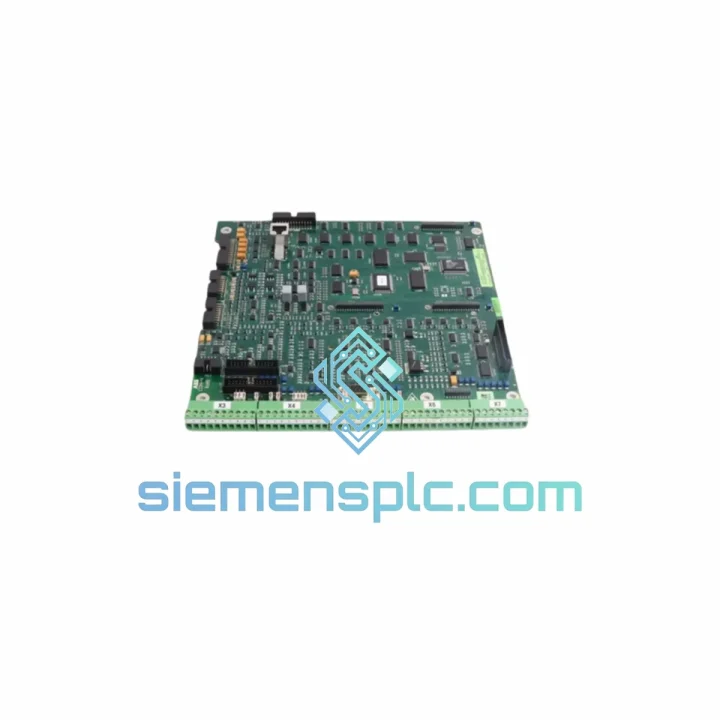

ABB SDCS-CON-4 3ADT313900R01501 DC Drive Control Board – DCS800 Series

ABB SDCS-CON-4 3ADT313900R01501 — Closed-Loop Regulation Board for DCS800 DC Drive Platform

The SDCS-CON-4 (ABB catalog reference: 3ADT313900R01501) is the central processing board of the ABB DCS800 DC drive series, responsible for executing all closed-loop control functions within the drive’s internal hierarchy. Positioned above the gate drive layer (SDCS-PIN) and the I/O expansion board (SDCS-IOB), this PCB assembly handles armature current regulation, field excitation sequencing, speed loop computation, encoder/tachometer signal conditioning, and inter-board communication arbitration. Every control decision within a DCS800 cabinet — from soft-start ramp profiling to four-quadrant regenerative braking — originates from this board before propagating to the thyristor firing layer.

The DCS800 platform spans armature current ratings from 20 A to 5200 A across a unified hardware family. The SDCS-CON-4 serves as the common control board across this entire current range, meaning a single spare unit functions as a cross-size replacement in multi-drive installations. This architectural decision by ABB significantly reduces spare parts inventory complexity in facilities operating mixed-rating DCS800 fleets — steel rolling mills, paper machine drives, marine propulsion systems, and large-scale winder/unwinder lines where multiple drives of differing ratings share the same control board part number.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

Dual-Loop Bandwidth Separation: The SDCS-CON-4 implements two PI control loops executing concurrently on separate processor cores. The outer speed loop samples encoder or tachometer feedback at a fixed scan interval and outputs a current reference to the inner armature current loop. The inner loop runs on the DSP co-processor at a substantially higher update rate — sub-millisecond — to maintain tight current tracking during transient load disturbances. Separating loop bandwidths in this manner prevents cross-coupling between speed dynamics and current dynamics, which is the primary instability mechanism in single-loop DC drive architectures. In tension-controlled winder applications, this separation directly determines web tension stability under acceleration and deceleration transients.

Field Excitation Sequencing and Field Weakening: The board manages field current build-up independently from armature control. At startup, armature thyristor firing is held inhibited until field current reaches a configurable threshold — typically 80–100 % of rated field current — preventing armature current from flowing into an under-excited motor, which would produce disproportionate armature heating and torque instability. For above-base-speed operation, the field weakening algorithm reduces field current reference along a pre-calculated curve while simultaneously raising the armature voltage ceiling, maintaining constant power output across the extended speed range without operator intervention.

Galvanic Isolation via DDCS Fiber-Optic Link: Communication between the SDCS-CON-4 and peripheral boards (SDCS-IOB, SDCS-FEX) uses the DDCS fiber-optic protocol, eliminating all galvanic coupling between the control layer and the power layer. In thyristor-based DC drives, gate firing events generate dV/dt transients on the DC bus typically exceeding 500 V/µs in large-frame drives. Copper-based signal wiring in this environment is susceptible to capacitive and inductive coupling from these transients. The fiber-optic link removes this noise path entirely. Analog input circuits on the board incorporate differential amplifier front-ends with CMRR exceeding 60 dB, further attenuating ground-loop interference from field instrumentation wiring.

Thyristor Firing Angle Computation: The SDCS-CON-4 calculates the firing angle (α) for the thyristor bridge based on the current loop output and the AC supply phase reference signal. The firing angle algorithm compensates for supply voltage variation and commutation overlap angle in real time, maintaining accurate current control across ±10 % supply voltage fluctuations without requiring manual gain re-tuning. Gate pulse signals are transmitted to the SDCS-PIN gate drive board via a dedicated low-voltage interface, with timing accuracy held within ±0.1° of electrical angle — a specification that directly determines current ripple magnitude and harmonic content in the DC output.

Non-Volatile Parameter Architecture: Drive parameters are stored in EEPROM on the SDCS-CON-4, surviving power loss without battery backup. Competing platforms using battery-backed SRAM are subject to parameter loss upon battery depletion — a failure mode that commonly occurs in drives stored as spares or operated in intermittent-duty applications. The EEPROM architecture eliminates this risk, ensuring that a replacement board retains its parameter set through extended storage periods and power interruptions.

System Integration Benefits

• OEM Form-Fit-Function Replacement: The SDCS-CON-4 is a direct drop-in replacement for any failed board of the same part number within the DCS800 family. No firmware re-flashing is required in installations where the parameter set is backed up via DriveWindow or keypad upload, reducing replacement time to board swap, parameter restore, and functional verification.
• Cross-Rating Spare Coverage: A single SDCS-CON-4 unit covers the full DCS800 current range (20 A – 5200 A), reducing the number of unique spare part numbers a maintenance team must stock. Facilities operating mixed-rating DCS800 fleets benefit directly from this cross-compatibility.
• Deterministic Current Loop Execution: The DSP co-processor executes the current regulation loop on a fixed, interrupt-driven schedule independent of fieldbus communication load. This determinism is critical in tension-controlled winder and unwinder applications where current loop latency directly affects web tension stability during speed transients.
• 64-Event Non-Volatile Fault Log: Timestamped fault records retained in non-volatile memory enable post-mortem analysis of drive trips without requiring a connected PC at the time of the fault. Fault codes map directly to root causes — overcurrent, field loss, encoder fault, communication timeout — via the DCS800 firmware manual, reducing diagnostic time in unplanned downtime events.
• Fieldbus Protocol Flexibility: The optional fieldbus adapter slot accepts RPBA-01 (PROFIBUS-DP), RDNA-01 (DeviceNet), or RMBA-01 (Modbus RTU) adapters without hardware modification. The same spare board can be deployed across facilities using different PLC communication standards, eliminating the need to stock protocol-specific variants.
• Four-Quadrant Operation: The board’s control logic natively supports four-quadrant operation — motoring and regenerative braking in both directions of rotation — through coordinated firing angle management of the dual thyristor bridge. This is a prerequisite for hoist, crane, and rolling mill applications where regenerative energy recovery is required.
• Supply Voltage Disturbance Rejection: Real-time compensation for ±10 % AC supply voltage variation maintains current regulation accuracy without manual re-tuning. In industrial facilities where supply voltage fluctuates due to large motor starts or grid disturbances, this compensation prevents nuisance trips and current regulation errors.
• Reduced Replacement Commissioning Time: With a parameter backup available, board replacement and recommissioning is achievable within 2–4 hours by a qualified drive technician. This compares favorably to full drive replacement, which typically requires 1–3 days including mechanical, electrical, and commissioning work.
• Diagnostic Transparency via DriveWindow: The board’s communication interface supports ABB DriveWindow PC tool for real-time parameter monitoring, trend logging, and fault analysis. This enables condition monitoring during normal operation, not only during fault investigation, supporting predictive maintenance strategies in continuous-process industries.

Quality Assurance & Global Logistics

Each SDCS-CON-4 unit dispatched by siemensplc.com is sourced through verified industrial supply channels and subjected to a structured pre-shipment inspection protocol. Visual PCB inspection covers mechanical integrity, solder joint condition, and component population across all board areas. Power-on functional verification confirms correct initialization, communication interface response, and absence of startup fault codes. A functional test record is issued with each unit and is available for review prior to shipment for quality-critical applications.

Packaging follows IEC 61340-compliant anti-static ESD bag enclosure, placed within foam-lined cartons dimensioned to prevent board movement during transit. Moisture sensitivity handling conforms to IPC/JEDEC J-STD-033 requirements. Serial number and date code are recorded at intake, and full chain-of-custody documentation is available on request for quality audit and traceability purposes.

Dispatch is handled from Xiamen, China, with access to DHL Express, FedEx International Priority, and UPS Worldwide Express. In-stock units ship within 24–48 hours of order confirmation. Indicative transit times: Europe 3–5 business days; North America 3–5 business days; Southeast Asia 2–3 business days; Middle East 4–6 business days. Export documentation — commercial invoice, packing list, certificate of origin — is prepared for all international shipments. HS code classification and customs value declaration are handled to minimize clearance delays at destination.

The 12-month warranty covers manufacturing defects and functional failure under normal operating conditions. Warranty claims are processed under a replacement-first policy: a replacement unit is dispatched upon receipt of the failed board, minimizing plant downtime. Remote technical support via email and WhatsApp is available throughout the warranty period and beyond for installation, commissioning, and fault diagnosis queries.
