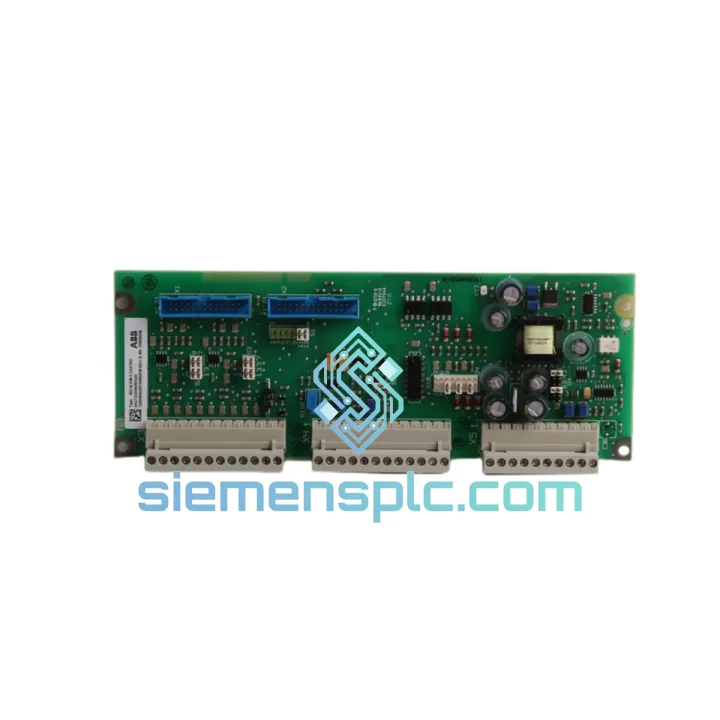

ABB SDCS-IOB-3-COAT 3ADT220090R0020 I/O Connection Board – SDCS Series

ABB SDCS-IOB-3-COAT 3ADT220090R0020 — I/O Connection Board for DC Drive Control Systems

The SDCS-IOB-3-COAT (reference: 3ADT220090R0020) is the conformal-coated variant of ABB’s standard SDCS-IOB-3 I/O connection board, engineered specifically for the SDCS DC drive control platform. Within a closed-loop DC motor drive system, this board occupies the signal-routing layer between the main control board (SDCS-CON-2 / SDCS-CON-4) and the external field wiring — handling encoder feedback conditioning, digital I/O buffering, and analog reference distribution. Its conformal coating (IEC 61086 Class AR) provides a chemically bonded dielectric barrier across the PCB surface, extending reliable operation in environments with elevated humidity, airborne particulates, and corrosive vapors that would degrade an uncoated assembly within months.

The board’s signal architecture is built around a passive-active hybrid topology: passive RC filter networks attenuate high-frequency noise on analog input lines before signals reach the active buffer stage, while open-collector digital output drivers provide galvanic isolation between the drive’s internal logic and external relay or PLC inputs. Encoder interface circuitry supports differential line-receiver inputs (RS-422 compatible), enabling accurate speed feedback from incremental encoders at line lengths up to 100 m without signal degradation. This design eliminates the need for external signal conditioners in most standard installations, reducing panel wiring complexity and potential failure points.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The SDCS-IOB-3-COAT’s EMC design follows a layered suppression strategy rather than relying on a single filtering stage. At the board perimeter, transient voltage suppression (TVS) diodes clamp inductive spikes on all I/O lines to within ±33 V before they can propagate to internal logic. Common-mode chokes on the encoder differential pair reject ground-loop interference — a frequent source of speed-feedback instability in large motor installations where ground potential differences between the drive cabinet and encoder mounting surface can reach several volts. The conformal coating itself contributes to EMC performance by preventing surface leakage currents between adjacent PCB traces under humid conditions, which would otherwise introduce low-level noise into high-impedance analog input circuits.

The optocoupler isolation on digital inputs provides a minimum 500 V RMS isolation barrier, decoupling the drive’s internal 5 V logic from field-side 24 V DC wiring. This is particularly relevant in installations where the digital inputs are driven from a separate PLC output card with its own power supply — without isolation, ground reference mismatches create undefined logic states. The open-collector output stage uses Darlington transistor arrays with integrated flyback diodes, allowing direct drive of inductive loads such as relay coils without external protection components.

Analog signal conditioning employs a two-pole active low-pass filter (Butterworth topology, −3 dB at approximately 1 kHz) ahead of the ADC input, attenuating switching-frequency noise from the drive’s PWM stage that would otherwise alias into the measurement band. The 12-bit ADC resolution yields a theoretical LSB of 4.88 mV on a ±10 V range — sufficient for torque reference accuracy in most industrial DC drive applications without requiring external signal amplification.

System Integration Benefits

• Direct backplane compatibility: Mates with the SDCS-CON-2 and SDCS-CON-4 control boards via the defined SDCS ribbon-cable interface, requiring no adapter hardware or firmware reconfiguration on replacement.
• Deterministic I/O scan cycle: Digital I/O state is sampled synchronously with the drive’s control task cycle (typically 3.3 ms or 6.6 ms depending on CON board configuration), ensuring consistent response latency for time-critical interlocks.
• Encoder feedback integrity: RS-422 differential receiver rejects common-mode noise up to ±7 V, maintaining accurate speed feedback in electrically noisy environments without requiring shielded encoder cables shorter than 10 m.
• Reduced panel wiring density: Consolidated I/O termination on a single board eliminates the need for separate terminal blocks for encoder, analog, and digital signals, reducing panel assembly time and potential wiring errors.
• Conformal coating for extended MTBF: In environments with 80–95% RH or periodic condensation, the coating prevents dendritic growth between PCB conductors — a primary failure mode of uncoated boards in coastal or washdown-area installations.
• Diagnostic transparency: LED status indicators on digital I/O channels provide local visual confirmation of signal state without requiring a laptop or drive keypad, accelerating fault isolation during commissioning and maintenance.
• Analog output for external instrumentation: The ±10 V analog output can drive external meters, chart recorders, or SCADA analog input cards directly, providing a real-time speed or torque reference signal without additional signal splitters.
• Drop-in replacement for SDCS-IOB-3: Electrically and mechanically interchangeable with the non-coated SDCS-IOB-3, allowing upgrade to the COAT variant during scheduled maintenance without drive parameter changes.
• Long-term spare parts availability: Stocked as a discrete spare, the board supports a spares-based maintenance strategy for DCS400/DCS550/DCS800 fleets, avoiding full drive replacement when only the I/O board has failed.
• Broad drive series coverage: Compatible across the DCS400, DCS550, and DCS800 product families, allowing a single spare part to cover multiple drive generations within the same facility.

Quality Assurance & Global Logistics

Every SDCS-IOB-3-COAT unit supplied through siemensplc.com undergoes a structured pre-shipment verification process. Visual inspection confirms original ABB labeling, date codes, and conformal coating coverage. Where test equipment is available, power-on functional checks verify I/O channel continuity and encoder interface signal integrity. Units are packed in anti-static ESD bags (ANSI/ESD S541 compliant), placed in foam-lined cartons, and sealed with tamper-evident tape. Export documentation — commercial invoice, packing list, certificate of origin, and HS code declaration (HS 8537.10) — is prepared for each shipment to facilitate customs clearance in destination countries.

Shipments originate from Xiamen, China, with typical dispatch within 1–3 business days for in-stock orders. Express courier services (DHL Express, FedEx International Priority, UPS Worldwide Expedited) deliver to most industrial destinations in Europe, North America, Southeast Asia, and the Middle East within 3–7 business days. For bulk orders or project-based procurement, sea freight consolidation is available with full container load (FCL) and less-than-container load (LCL) options. All shipments are covered by cargo insurance, and tracking information is provided at time of dispatch. The 12-month warranty covers manufacturing defects and premature functional failure under normal operating conditions; warranty claims are processed with replacement dispatch within 5 business days of defect confirmation.
