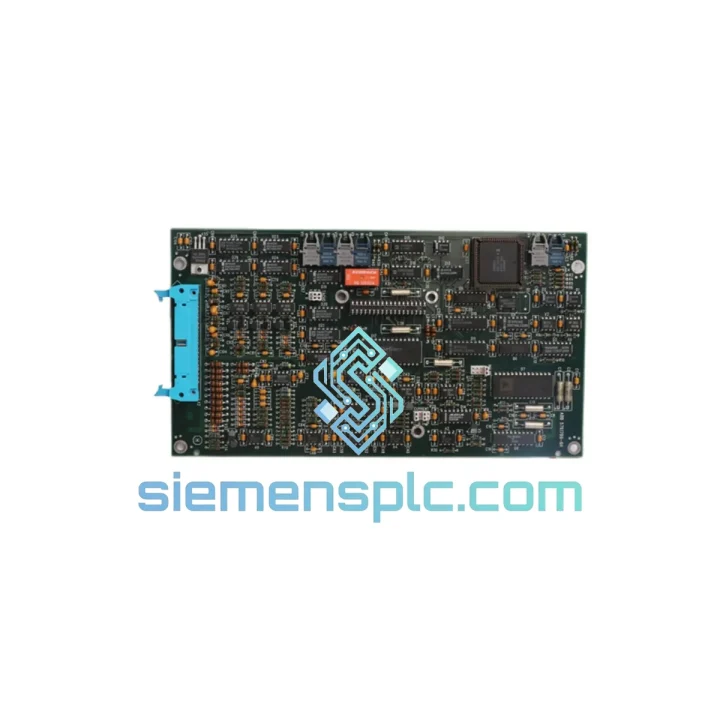

ABB SNAT609TAI Control Board – ACS600 Series

ABB SNAT609TAI: Main Signal Processing and Closed-Loop Control Board for ACS600 Variable Frequency Drives

The SNAT609TAI is the primary control board embedded within ABB’s ACS600 series variable frequency drives. Its function is not supplementary — it is the computational and signal arbitration core that determines whether the drive executes a speed reference accurately, responds to a fault condition within the required reaction window, or maintains torque linearity under load transients. In a continuous process environment — a paper machine, a steel rolling line, a large-scale pump station — the integrity of this board directly governs process stability. A degraded or failed SNAT609TAI does not produce degraded output; it produces no controlled output at all.

The ACS600 platform was engineered for high-power industrial applications where deterministic motor control is a process requirement, not a preference. The SNAT609TAI board carries out the real-time execution of ABB’s Direct Torque Control (DTC) algorithm, which operates without a pulse encoder in its base configuration, relying instead on a motor model updated at microsecond intervals. This demands a board architecture capable of sustained high-frequency computation with minimal interrupt latency — a design constraint that shaped every aspect of the SNAT609TAI’s hardware layout.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The SNAT609TAI’s hardware architecture reflects the demands of DTC execution at the microsecond level. Several design decisions distinguish it from generic drive control boards:

Isolated Analog Front-End: Analog input signals — speed references, process feedback, external sensor inputs — pass through optocoupler-based isolation stages before reaching the ADC. This prevents ground loop interference from corrupting the motor model’s input data, a critical requirement in environments with large power cables running parallel to signal wiring.

Dedicated DSP Architecture: The board’s signal processor is allocated exclusively to the DTC torque and flux estimation loop. Fieldbus communication, I/O scanning, and fault logging are handled by a separate microcontroller, preventing communication overhead from introducing jitter into the control cycle. This separation is what allows ACS600 drives to achieve torque step response times in the sub-5 ms range without encoder feedback.

EMC Filtering on I/O Lines: Each digital input and output line incorporates RC filtering and transient suppression components. In industrial environments where inductive switching events — contactors, solenoids, motor starters — generate conducted transients on the 24 VDC control rail, these filters prevent false triggering of digital inputs and protect output driver ICs from voltage spikes exceeding their absolute maximum ratings.

Backplane Connector Integrity: The board-to-backplane connector uses a high-cycle-rated, gold-plated contact system. In maintenance scenarios where boards are removed and reinserted during troubleshooting, connector wear is a common failure mode on lower-grade boards. The SNAT609TAI’s connector specification accounts for repeated insertion cycles without contact resistance degradation.

Watchdog and Fault Latch Logic: An independent hardware watchdog circuit monitors the DSP’s execution cycle. If the control loop fails to complete within its allocated time window — due to a firmware fault or hardware anomaly — the watchdog asserts a fault signal that triggers a controlled drive trip rather than an uncontrolled output state. This prevents mechanical damage to the driven load during a control board failure event.

System Integration Benefits

• Deterministic Torque Response: DTC execution on the SNAT609TAI delivers torque step response without encoder feedback, reducing sensor infrastructure requirements while maintaining dynamic performance comparable to closed-loop vector drives.
• Transparent Fault Diagnostics: The board logs fault codes with timestamp and operating-point data (speed, current, DC bus voltage at fault moment), enabling root-cause analysis without requiring oscilloscope capture during the fault event.
• Fieldbus Protocol Flexibility: Via RDCO adapter modules, the SNAT609TAI supports PROFIBUS-DP, DeviceNet, and Modbus RTU without hardware modification to the board itself, allowing the same drive to be integrated into different plant control architectures.
• Adaptive Motor Model: The DTC motor model on the SNAT609TAI performs an automatic identification run (ID run) that characterizes the connected motor’s resistance, inductance, and saturation curve. This eliminates manual parameter entry errors and compensates for motor aging over time.
• Process PID Integration: An internal PID controller block can be configured directly on the SNAT609TAI, allowing closed-loop process control (pressure, flow, level) without requiring an external PLC for the regulation loop — reducing scan cycle latency in the control chain.
• Multi-Motor Compatibility: The board’s motor model supports induction motors across a wide power range within the ACS600 frame sizes, allowing a single spare board to serve multiple drive units in a plant with mixed motor ratings.
• Coordinated Braking Logic: The SNAT609TAI manages braking chopper activation thresholds and coordinates with external braking resistor circuits, preventing DC bus overvoltage trips during rapid deceleration of high-inertia loads.
• Redundancy-Ready Architecture: In applications using ACS600 drives in master-follower configurations (e.g., multi-motor line shaft drives), the SNAT609TAI handles torque reference distribution and speed synchronization between drive units via the fieldbus interface.

Quality Assurance & Global Logistics

Every SNAT609TAI unit supplied through siemensplc.com is sourced from verified ABB-authorized supply channels. Boards are not remanufactured or component-level repaired without disclosure — condition (new, surplus new, or tested refurbished) is stated explicitly in the quotation.

Pre-shipment verification includes visual inspection of PCB surface, connector contacts, and component population against OEM reference; functional power-on test where test bench infrastructure permits; ESD-safe packaging in anti-static bags with foam cushioning inside double-wall cartons; and documentation package including packing list, test record, and certificate of conformity upon request.

Dispatch originates from Xiamen, China. Standard international shipment via DHL Express, FedEx International Priority, or UPS Worldwide Expedited reaches most destinations in Europe, North America, Southeast Asia, and the Middle East within 3–7 business days. Freight forwarder handover for sea or air consolidation is available for bulk orders. All shipments include tracking numbers issued within 24 hours of dispatch. Export documentation (commercial invoice, packing list, country of origin certificate) is prepared in compliance with destination customs requirements.

A 12-month warranty covers manufacturing defects and verified functional failures under normal operating conditions. Warranty claims are processed with a replacement-first policy to minimize downtime impact on the customer’s plant.
