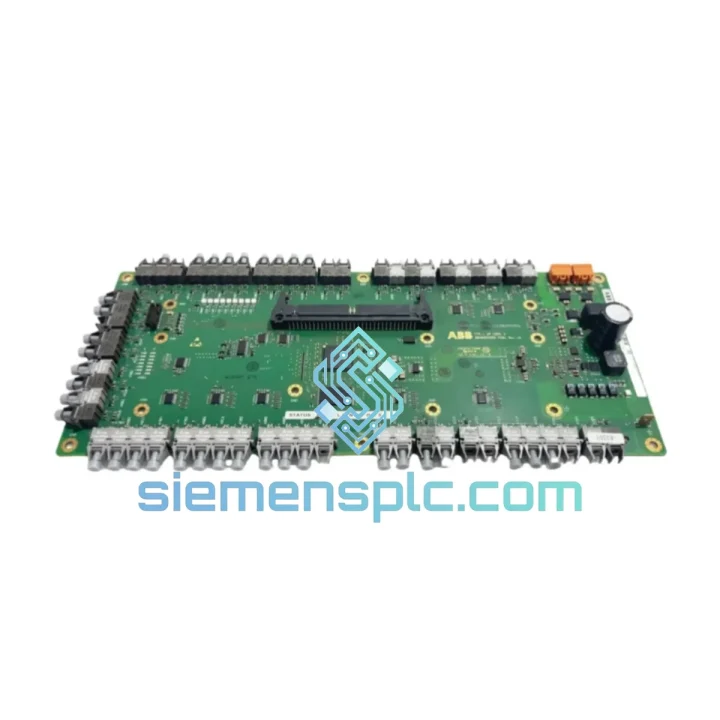

ABB UFC921A101 (3BHE024855R0101) — Backplane Interface Board for AC800M and AC800PEC Distributed Control Systems

The ABB UFC921A101, carrying hardware revision code 3BHE024855R0101, is a dedicated interface board engineered for deployment within ABB’s AC800M and AC800PEC controller families. Its primary function is to manage bidirectional signal arbitration between the main processor module and the downstream I/O or communication bus infrastructure mounted on the same controller rack. In process-critical environments — power generation, hydrocarbon processing, pulp and paper, and marine automation — this board operates as a deterministic signal bridge, ensuring that scan-cycle jitter remains within the microsecond tolerances demanded by safety-instrumented and high-availability control loops.

Unlike generic interface cards, the UFC921A101 is designed around ABB’s proprietary backplane bus architecture. Its internal logic handles interrupt prioritization, real-time data buffering, and protocol translation between the PM8xx processor series and peripheral modules, without introducing latency artifacts that could compromise closed-loop control performance. In AC800PEC configurations — where the platform governs power electronics such as excitation systems and variable-speed drives — the board supports feedback loop update rates that reach into the sub-millisecond range, a requirement that eliminates any tolerance for signal propagation delay or arbitration conflict.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The UFC921A101 board architecture is built around a deterministic arbitration engine that governs slot-level bus access across the AC800M rack. The backplane bus in the AC800M family operates on a time-division multiplexing (TDM) scheme: each module slot is allocated a fixed time window within the controller’s scan cycle, and the interface board enforces these windows through hardware-level interrupt logic rather than software polling. This design eliminates the non-determinism inherent in software-arbitrated bus systems and is the primary reason the AC800M platform achieves consistent scan-cycle repeatability in the 1 ms to 250 ms range depending on configuration.

From an electromagnetic compatibility (EMC) standpoint, the UFC921A101 incorporates multi-layer PCB construction with dedicated ground planes that provide shielding between the high-frequency digital logic and the analog signal paths routed through the backplane connectors. Transient suppression components are placed at the board’s backplane interface points to clamp voltage spikes generated by inductive loads in adjacent field wiring — a common failure mode in industrial cabinet environments where relay coils and motor starters share the same enclosure.

The board’s connector interface uses a high-density, gold-plated backplane connector rated for a minimum of 500 mating cycles, with contact geometry designed to maintain low-resistance continuity under the mechanical vibration profiles specified in IEC 60068-2-6. In AC800PEC deployments, where the controller rack may be co-located with power conversion equipment generating significant conducted and radiated interference, the board’s differential signal routing and common-mode rejection architecture maintain signal integrity at bus clock frequencies without requiring additional external filtering.

Redundancy arbitration logic embedded in the UFC921A101 supports ABB’s standard active-standby controller redundancy scheme. When a primary PM8xx processor module detects a fault condition and initiates a switchover, the interface board participates in the handshake protocol that transfers bus mastership to the standby processor within the switchover time window specified by ABB — typically under 30 ms for bumpless transfer in standard configurations. This hardware-level participation in the redundancy protocol, rather than relying solely on the processor modules, reduces the risk of bus contention during the switchover interval.

System Integration Benefits

• Deterministic scan-cycle enforcement: Hardware TDM arbitration guarantees fixed slot access windows, eliminating jitter sources that would otherwise accumulate in software-polled bus architectures and degrade PID loop performance.
• Zero-reconfiguration slot replacement: The UFC921A101 is recognized by the AC800M controller firmware through backplane slot addressing; replacing a failed board does not require re-parameterization of the controller project in ABB’s Control Builder M environment.
• Bumpless redundancy switchover: Hardware-level participation in the active-standby handshake protocol keeps process variable tracking continuous during controller failover, avoiding step disturbances in cascade control loops.
• High-speed feedback path for AC800PEC: In power electronics control applications, the board’s low-propagation-delay signal path supports excitation and drive feedback loops operating at update rates below 1 ms, meeting the dynamic response requirements of synchronous generator control.
• EMC-hardened signal routing: Multi-layer PCB ground planes and differential bus routing maintain signal integrity in environments with high conducted interference levels, reducing nuisance faults caused by electromagnetic coupling from adjacent power equipment.
• Diagnostic transparency: The board exposes slot-level status information to the AC800M diagnostic framework, allowing Control Builder M to report board health, communication error counters, and bus access statistics without requiring physical inspection of the cabinet.
• Extended thermal operating range: Rated operation from 0 °C to +55 °C with storage down to −40 °C accommodates deployment in outdoor enclosures and non-climate-controlled substations without derating.
• Vibration-rated connector interface: Gold-plated backplane connectors rated to IEC 60068-2-6 vibration profiles maintain contact integrity in installations subject to mechanical vibration from rotating machinery, compressors, or structural resonance.
• Compact slot footprint: The board occupies a single backplane slot, preserving rack space for additional I/O or communication modules in density-constrained controller cabinets.
• Cross-platform compatibility: A single hardware revision (3BHE024855R0101) is qualified for both AC800M standard DCS and AC800PEC power electronics control platforms, simplifying spare-parts inventory management across mixed-platform installations.
