ABB XM03 DCS Expansion Module – H&B Contronic XM Series

ABB XM03 H&B Contronic DCS Expansion Module: Signal Distribution Architecture in Distributed Control Loops

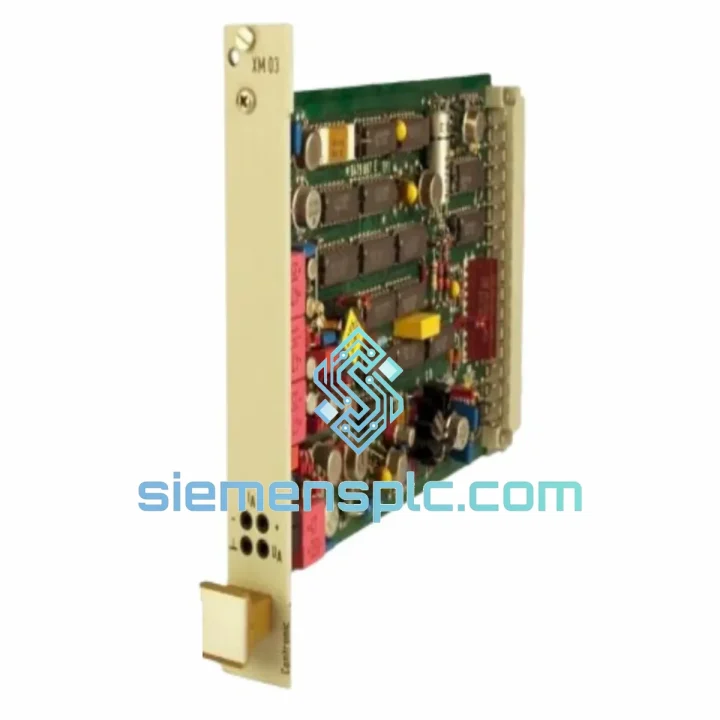

The ABB XM03 is a dedicated expansion module within the H&B Contronic distributed control system (DCS) platform, engineered to extend the I/O capacity of Contronic controller stations without introducing latency penalties into the process control loop. In a typical Contronic architecture, the XM03 occupies a defined slot on the Contronic backplane bus, where it participates in the station’s cyclic data exchange under deterministic timing constraints. Its primary function is to provide additional analog or digital I/O channels that are transparently mapped into the controller’s process image, allowing the engineering station to address them identically to native I/O — no gateway overhead, no protocol translation layer.

The module’s internal signal path employs optocoupler-based galvanic isolation between field terminals and the backplane logic, with a rated isolation voltage of 500 V AC (1 min), which satisfies the requirements of IEC 61131-2 for industrial control equipment operating in environments with significant ground potential differences. This isolation architecture prevents common-mode interference from propagating into the controller’s data bus — a critical design requirement in petrochemical and power generation facilities where field cable runs may span hundreds of meters across equipotential bonding zones of varying quality.

Signal conditioning circuitry on the XM03 includes hardware filtering at the analog input stage, with a configurable time constant that attenuates high-frequency noise components above the process bandwidth. This is not a software filter applied post-conversion; it is an RC network ahead of the ADC, which means aliasing artifacts are suppressed before digitization. The ADC resolution and conversion rate are matched to the Contronic station’s scan cycle, ensuring that the module delivers settled, valid data within the station’s acquisition window on every scan.

The XM03 communicates with the Contronic controller via the station’s internal parallel backplane bus. This bus operates at a fixed clock rate synchronized to the controller’s CPU cycle, which means the expansion module’s data is always coherent with the controller’s current process image snapshot. There is no asynchronous buffering between the XM03 and the CPU — data is latched directly into the process image at the defined acquisition phase of each scan cycle. This architecture is fundamentally different from fieldbus-attached remote I/O, where network jitter introduces variable latency that must be compensated in the control algorithm.

Mechanically, the XM03 is designed for DIN rail or rack mounting within the Contronic station enclosure. The module’s connector system uses a multi-pin backplane edge connector with gold-plated contacts rated for a minimum of 500 insertion cycles, ensuring reliable contact integrity across the module’s service life in environments subject to vibration per IEC 60068-2-6. The front panel provides LED status indicators for power, communication activity, and channel fault states, allowing maintenance personnel to perform first-level diagnostics without connecting a programming device.

From a system engineering perspective, the XM03 is the correct selection when a Contronic station requires additional I/O capacity beyond the base controller’s native channel count, and when the application demands the deterministic scan-cycle integration that only backplane-mounted expansion provides. Remote I/O alternatives introduce network-dependent latency that is unacceptable in fast-loop control applications such as compressor surge control, burner management, or turbine speed governing. The XM03 eliminates this variable by keeping all I/O within the station’s synchronous acquisition domain.

📩 Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The XM03’s hardware design reflects the engineering philosophy of the H&B Contronic platform: determinism and signal integrity take precedence over feature density. Several design decisions are worth examining in detail.

Optocoupler Isolation Architecture: The isolation barrier on each I/O channel uses high-speed optocouplers rather than transformer-based isolation. This choice provides a lower capacitive coupling coefficient across the isolation barrier, which is significant in environments with high-frequency conducted interference. Transformer isolation, while effective at power frequencies, presents a lower impedance path to high-frequency common-mode currents. The optocoupler approach maintains a high common-mode rejection ratio (CMRR) across a broader frequency range, which is directly relevant to installations near variable-frequency drives (VFDs) or high-current switching equipment.

Analog Input Filtering: The hardware RC filter ahead of the ADC is not a configurable digital filter — it is a fixed analog network whose time constant is matched to the module’s intended process applications. This design choice eliminates the possibility of filter misconfiguration by an inexperienced engineer, and it ensures that the ADC never receives an aliased signal regardless of the software configuration state. In safety-instrumented system (SIS) adjacent applications, this hardware-enforced filtering is a meaningful design attribute.

Backplane Bus Synchronization: The XM03 does not contain an independent microprocessor or local scan engine. Its data acquisition is clocked directly by the Contronic station bus master (the controller CPU). This means the module has no autonomous timing source that could drift relative to the controller’s process image update cycle. Every data word presented to the controller is acquired within a defined, bounded time window — a property that simplifies worst-case execution time (WCET) analysis for control loop timing validation.

EMC Design: The module’s PCB layout employs a ground plane strategy that minimizes loop areas in high-frequency signal paths. The backplane connector pins are arranged to interleave signal and ground returns, reducing the characteristic impedance variation of the bus connection and suppressing reflections on the parallel bus at the station’s operating clock frequency. The front panel is bonded to the station chassis ground through a low-impedance path, providing a Faraday shield effect for the module’s internal circuitry.

Redundancy Considerations: In Contronic architectures configured for controller redundancy, the XM03 participates in the station’s redundancy arbitration scheme. The module’s backplane interface supports the station’s hot-standby switchover protocol, meaning that a controller failover event does not require re-initialization of the expansion module’s I/O channels. Process data continuity is maintained across the switchover event within the bounds of the station’s defined switchover time.

System Integration Benefits

• Deterministic I/O Latency: Backplane-mounted integration eliminates network jitter present in fieldbus remote I/O solutions. Every channel’s data is acquired within the controller’s fixed scan cycle, enabling precise loop timing for fast-response control applications including compressor anti-surge and turbine governing.
• Transparent Process Image Mapping: The XM03’s channels appear in the controller’s process image identically to native I/O. No special function blocks, gateway configuration, or address offset management is required in the control program — reducing engineering effort and eliminating a class of configuration errors.
• Galvanic Isolation per Channel: Individual optocoupler isolation on each I/O channel prevents a single field fault (ground fault, cable insulation failure) from propagating to adjacent channels or to the controller backplane. This limits fault propagation and simplifies fault isolation during maintenance.
• Hardware-Level Diagnostic Transparency: Front-panel LED indicators provide channel-level fault status without requiring a connected engineering workstation. Maintenance personnel can identify a faulted channel during a plant walkdown, reducing mean time to repair (MTTR) in unplanned outage scenarios.
• Reduced Control Loop Dead Time: Because the XM03 operates synchronously with the controller scan, there is no additional dead time contribution from asynchronous I/O polling. This is directly beneficial in PID loop tuning — lower dead time allows higher controller gain and faster setpoint response without sacrificing stability margin.
• Simplified Spare Parts Management: The XM03 is a standard module within the Contronic XM Series. A single spare unit covers multiple station configurations, reducing the spare parts inventory burden for plant maintenance departments managing multiple Contronic installations.
• Hot-Standby Switchover Compatibility: In redundant Contronic controller configurations, the XM03 supports the station’s switchover protocol without requiring channel re-initialization. Process continuity is maintained across controller failover events, which is a mandatory requirement in continuous process industries.
• Long-Term Platform Availability: ABB’s H&B Contronic platform has an established installed base in petrochemical, power, and chemical process industries. The XM03 remains available through specialist suppliers, supporting the extended operational life of existing Contronic installations without requiring a full DCS migration project.

Quality Assurance & Global Logistics

Every ABB XM03 unit supplied by siemensplc.com is sourced through documented procurement channels and subjected to a structured incoming inspection process before dispatch. Inspection covers label and date-code verification, connector and housing integrity assessment, and where applicable, power-on functional verification against known-good reference parameters. Units that do not pass inspection are quarantined and not offered for sale.

Packaging is performed using anti-static ESD-safe materials compliant with ANSI/ESD S20.20. Each shipment includes a packing list, commercial invoice, and a sourcing reference document. Certificate of origin and HS code classification documentation are available upon request to support import customs clearance in the destination country.

Dispatch is from Xiamen, China, using DHL Express, FedEx International Priority, and SF Express international services. In-stock units are dispatched within 1–3 business days of order confirmation. Transit times to major industrial hubs: Europe 3–5 business days, Middle East 2–4 business days, Southeast Asia 1–3 business days, Americas 4–7 business days. All shipments are tracked end-to-end, with tracking numbers provided at dispatch.

A 12-month warranty is provided from the date of shipment. Warranty coverage addresses units that exhibit functional failure under normal operating conditions consistent with the manufacturer’s specifications. The warranty process is initiated by contacting [email protected] with the order reference and a description of the observed fault. Return shipping instructions and a replacement or credit resolution are provided within 3 business days of warranty claim receipt.
