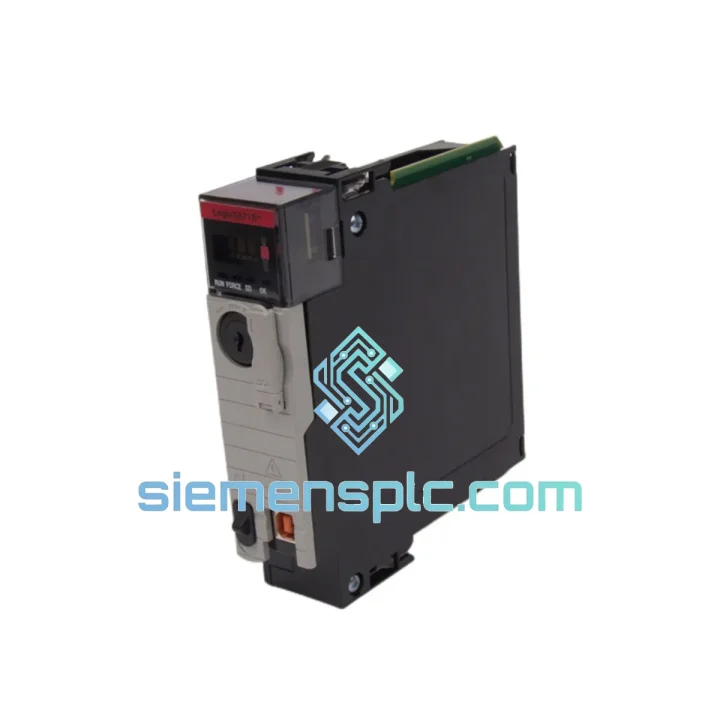

Allen-Bradley 1756-L71S ControlLogix Safety Controller

Allen-Bradley 1756-L71S ControlLogix 5570S Safety Controller — Stop the Clock on Your Downtime

Every minute your line is down, you’re bleeding money. A failed 1756-L71S in a SIL 2/3 safety loop doesn’t just halt production — it triggers mandatory safety shutdowns, forces manual overrides, and puts your compliance status at risk. We stock the Allen-Bradley 1756-L71S specifically because we know what an unplanned outage costs: $10,000/hour in automotive, $50,000/hour in petrochemical. Our job is to get you back online before the next shift starts.

This is not a listing. This is a recovery plan. We ship from Xiamen with DHL Express and FedEx International Priority — most destinations in Asia receive units within 24–48 hours. Europe and North America within 3–5 business days. Stock is physically on-hand, inspected, and ready to label the moment your PO clears.

⚡ URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Swapping a 1756-L71S in a live safety system is not a plug-and-play operation. Get this wrong and you’ll spend more time recovering from the replacement than from the original fault. Here’s what actually matters on the bench:

1. Firmware Version Lock — Check Before You Pull the Old Unit
The 1756-L71S runs firmware that is tightly coupled to your Studio 5000 project file version. Before removing the failed controller, connect via RSLinx and record the exact firmware revision (e.g., v32.011). Your replacement unit must be flashed to the identical major revision before going online. Mismatched firmware will cause the controller to reject the project download and throw a Controller Firmware Mismatch fault (Fault Code 0x0004). Use ControlFLASH or ControlFLASH Plus to update — do not attempt a live flash on a running safety system.

2. Safety Task Signature — Do Not Ignore This
The 1756-L71S uses a Safety Task Signature (STS) to lock the safety program after validation. When you install a replacement controller and download the project, Studio 5000 will prompt you to generate a new STS. In a SIL-certified installation, generating a new STS without a formal MOC (Management of Change) procedure is a compliance violation. Coordinate with your safety engineer before download. If the original STS is documented in your SIS validation records, you must re-validate after replacement.

3. SD Card / Non-Volatile Memory
The 1756-L71S supports an optional 1784-SD1 or 1784-SD2 SD card for program backup and automatic load-on-power-up. If the failed unit had an SD card installed, transfer it to the replacement controller only after verifying the firmware revision matches. A firmware mismatch with an SD card present will cause the controller to boot into a fault state and refuse to load the program.

4. Common Fault Codes on 1756-L71S Failure

• Fault Type 1, Code 77: Non-recoverable hardware fault — controller RAM or internal bus failure. Unit requires replacement; no field repair possible.
• Fault Type 1, Code 71: Firmware corruption detected during self-test. Attempt ControlFLASH recovery first; if it fails, replace the controller.
• Fault Type 2, Code 16: Safety task watchdog timeout — often caused by excessive safety task scan time, not hardware failure. Audit your safety task period before ordering a replacement.
• Fault Type 6, Code 1: Safety partner communication loss (in redundant configurations). Check 1756-RM2 fiber connections before condemning the L71S.
• I/O Fault on Safety Modules: After controller replacement, safety I/O modules (1756-IB16S, 1756-OB16S) may require a safety reset command from Studio 5000 before they return to Run mode.

5. Chassis Slot and Backplane Address
The 1756-L71S does not use DIP switches for addressing — slot position in the chassis is its logical address. Ensure the replacement is installed in the identical slot as the failed unit. If you move it to a different slot, all I/O module path references in your project will fault immediately on download.

Reliability in Harsh Conditions

The 1756-L71S was engineered for environments where consumer-grade electronics would fail within weeks. Rockwell Automation subjects the ControlLogix 5570S platform to IEC 60068 environmental stress testing — covering thermal cycling from -40°C to +85°C storage extremes, sinusoidal vibration per IEC 60068-2-6 (5–500 Hz, 2g), and random vibration profiles representative of compressor skids and mobile equipment installations.

Conformal coating on the PCB assembly provides protection against condensation and airborne contaminants — a critical feature in coastal chemical plants and offshore platforms where salt-laden air accelerates corrosion on unprotected boards. The backplane connector uses gold-plated contacts rated for 200+ insertion cycles, meaning repeated module swaps during maintenance windows do not degrade signal integrity.

In high-EMI environments — near large VFDs, arc furnaces, or high-current bus bars — the 1756-L71S maintains communication integrity through its shielded backplane architecture and compliance with IEC 61000-4-4 (electrical fast transient) and IEC 61000-4-5 (surge immunity) standards. Field experience across oil & gas and steel mill installations confirms stable operation in environments where lesser controllers exhibit spurious faults and nuisance trips.

Thermal management is passive — no fans, no moving parts. The controller dissipates heat through the chassis backplane and relies on adequate cabinet ventilation rather than active cooling. In ambient temperatures approaching the 60°C operating limit, ensure your panel has sufficient airflow and that the 1756-L71S is not installed adjacent to high-dissipation modules without thermal gap management.
